Renderings 2 – 2,202 Sq Ft Transitional 1.5-Story House Plan with 3 Bedrooms and 1-Car Garage – 68057C
Renderings 3 – 2,202 Sq Ft Transitional 1.5-Story House Plan with 3 Bedrooms and 1-Car Garage – 68057C Renderings 4 – 2,202 Sq Ft Transitional 1.5-Story House Plan with 3 Bedrooms and 1-Car Garage – 68057C
7
Concept
Construction documents are prepared for the following countries:

2,202 Sq Ft Transitional 1.5-Story House Plan with 3 Bedrooms, 3 Bathrooms and 1-Car Garage

Plan
68057C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2202
Total Heated ft²
3 + 0
Baths + 1/2 Baths
3 + 1
Beds + Home Office
1
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

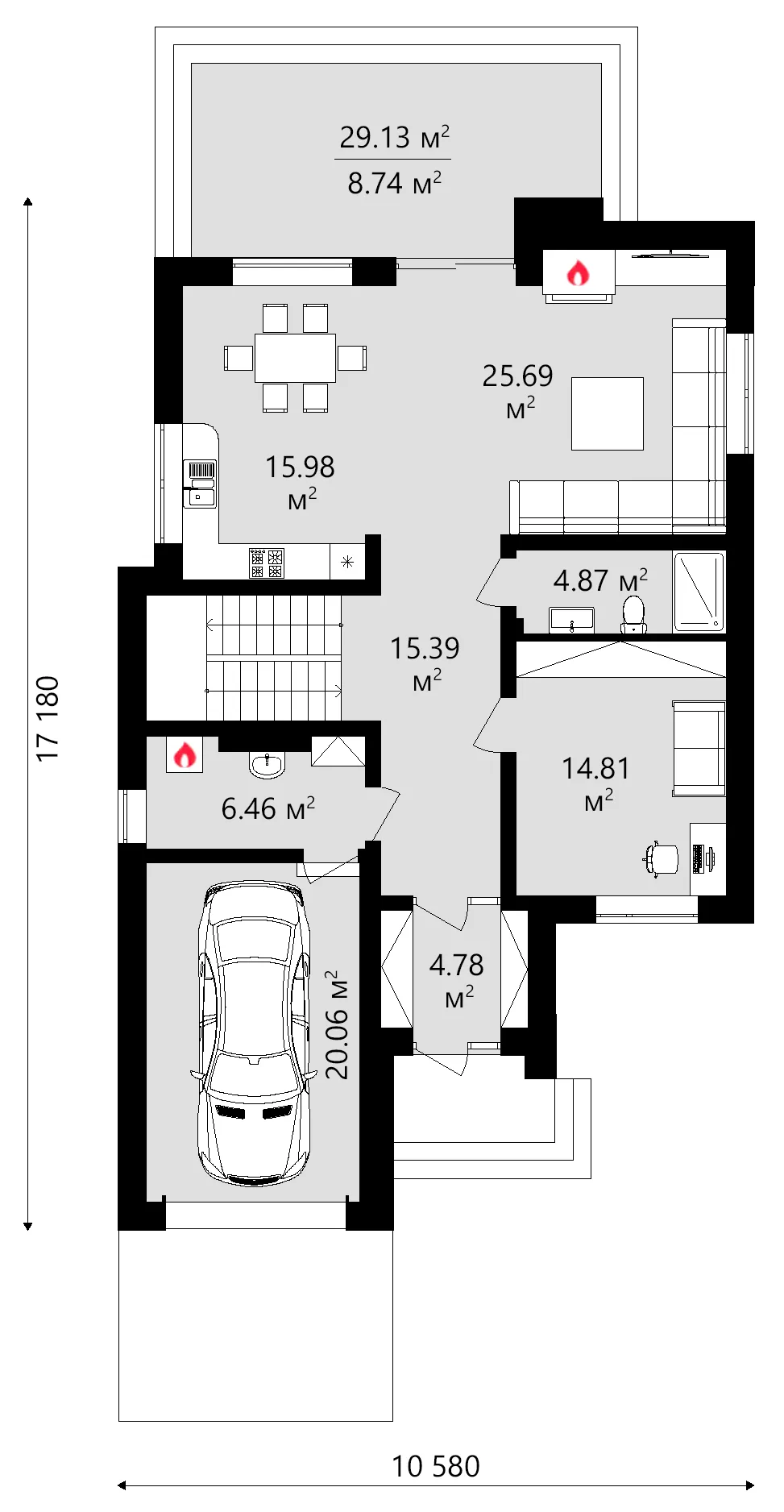

Main Floor
Main Floor 12 – 2,202 Sq Ft Transitional 1.5-Story House Plan with 3 Bedrooms and 1-Car Garage – 68057C

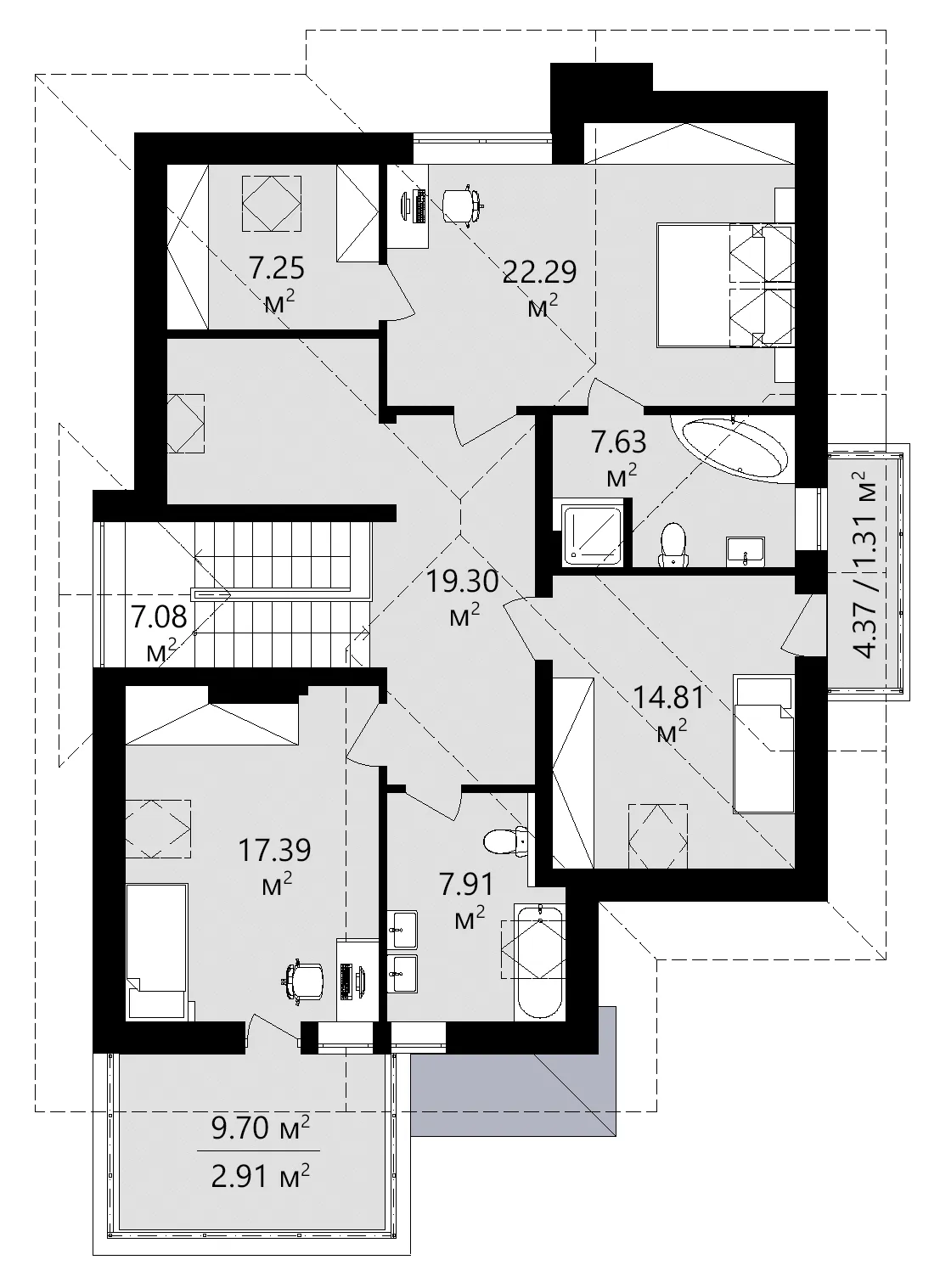

Second Floor
Second Floor 13 – 2,202 Sq Ft Transitional 1.5-Story House Plan with 3 Bedrooms and 1-Car Garage – 68057C
Full Specs & Features
Area
Total Unheated: 215.92 ft²
Total Heated: 2202.3 ft²
Dimensions
Depth: 61'0" ft
Width: 32'2" ft
Height: 29'6" ft
Garage
Area: 216 ft²
Cars: 1
Front Entry
Extension Forward
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Stucco
Panels
Rooms
Full bathrooms: 3
Bedrooms: 3
Utility room
Bonus/Flex Room
Entry
Home Office
Walk In Closet
Kitchen and Dining
Breakfast Nook
Interior Features
Fireplace in Family Room
Second Floor Master
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Balcony
Deck
Garage rooftop deck
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Contemporary
European
Transitional
Roof

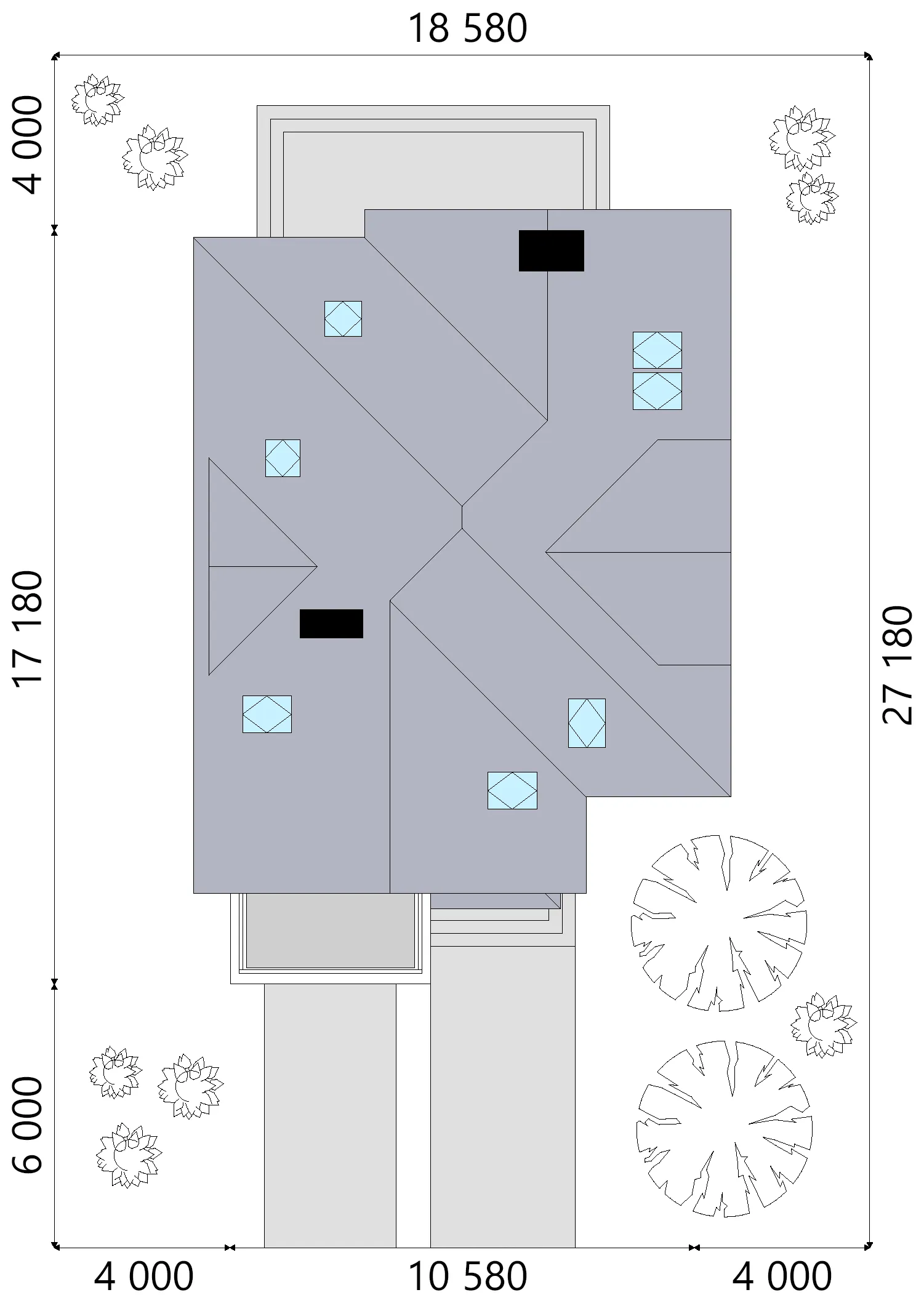

Roof Area: 2543.62 ft²
Hip & Valley
Roof Pitch: 10/12 (40°)

The 68057C house design concept is a Transitional 1.5-story single-family home with Total Heated 2,202 Sq Ft, 3 bedrooms, 3 bathrooms and a 1-car garage, available for purchase in digital form. Stucco and panel walls under a hip-and-valley roof with a 10/12 pitch give the house a crisp look, and the layout suits a household of 3-4 people.

The entry leads into an open floor plan where the large family room with a fireplace, the large kitchen and a breakfast nook form one shared space for daily life. Large windows and floor-to-ceiling glazing bring in daylight. A ground-floor home office keeps work apart from family time, and a bonus/flex room adapts to guests or hobbies.

Upstairs, the bedrooms are clustered together, with the primary suite and its walk-in closet keeping clothing organized. Three full bathrooms serve the household without morning queues, and a utility room gives chores a dedicated space.

A deck extends living outdoors, while a balcony and a rooftop deck over the garage add private outdoor spots upstairs. The front-entry garage extends forward and holds one car. At 32'2" wide and 61'0" deep, the house fits a narrower lot. Strip footings are standard, with slab or block foundations as options; the walls are aerated concrete, with ceramic or sand-lime block as alternatives. In figures: Total Heated 2,202 Sq Ft, 3 bedrooms, 3 bathrooms and a 1-car garage.

The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.
