Renderings 2 – 1-Story House Plan 2409 ft², 3 Beds — 65455C
Renderings 3 – 1-Story House Plan 2409 ft², 3 Beds — 65455C Renderings 4 – 1-Story House Plan 2409 ft², 3 Beds — 65455C
11
Concept
Construction documents are prepared for the following countries:

1-Story House Plan 2409 ft²: 3 Beds, 3 Baths, Open Floor Plan, without Garage

Plan
65455C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2409
Total Heated ft²
3 + 0
Baths + 1/2 Baths
3 + 0
Beds + Home Office
2
Cars (Carport)
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

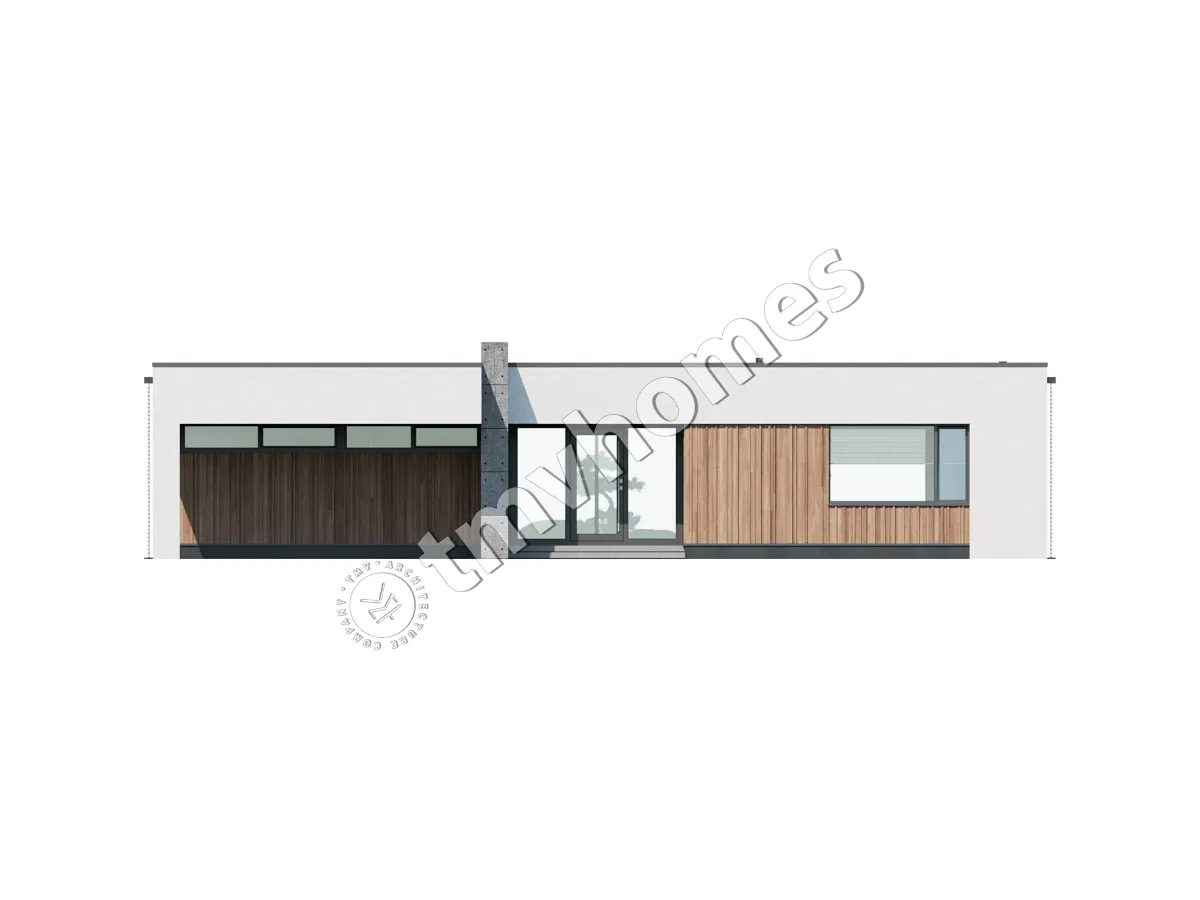

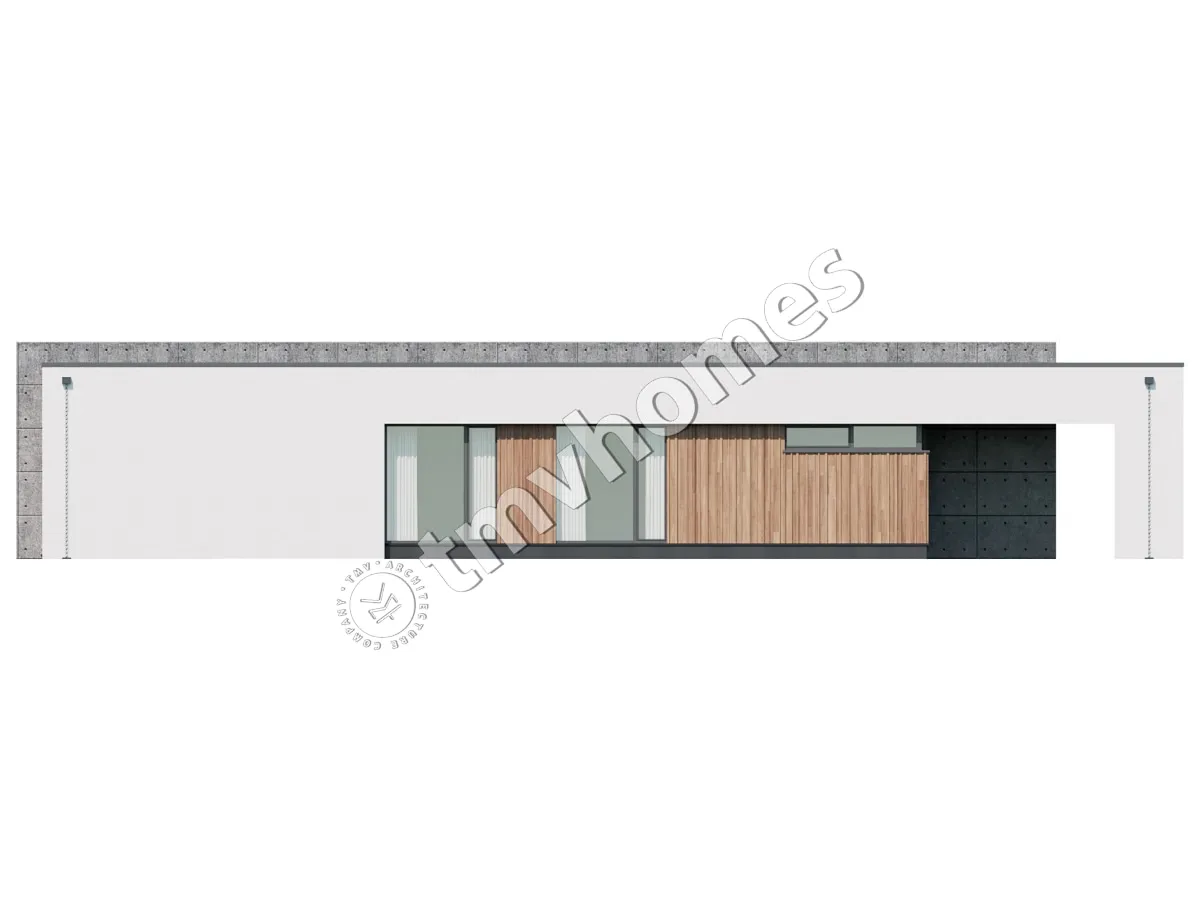

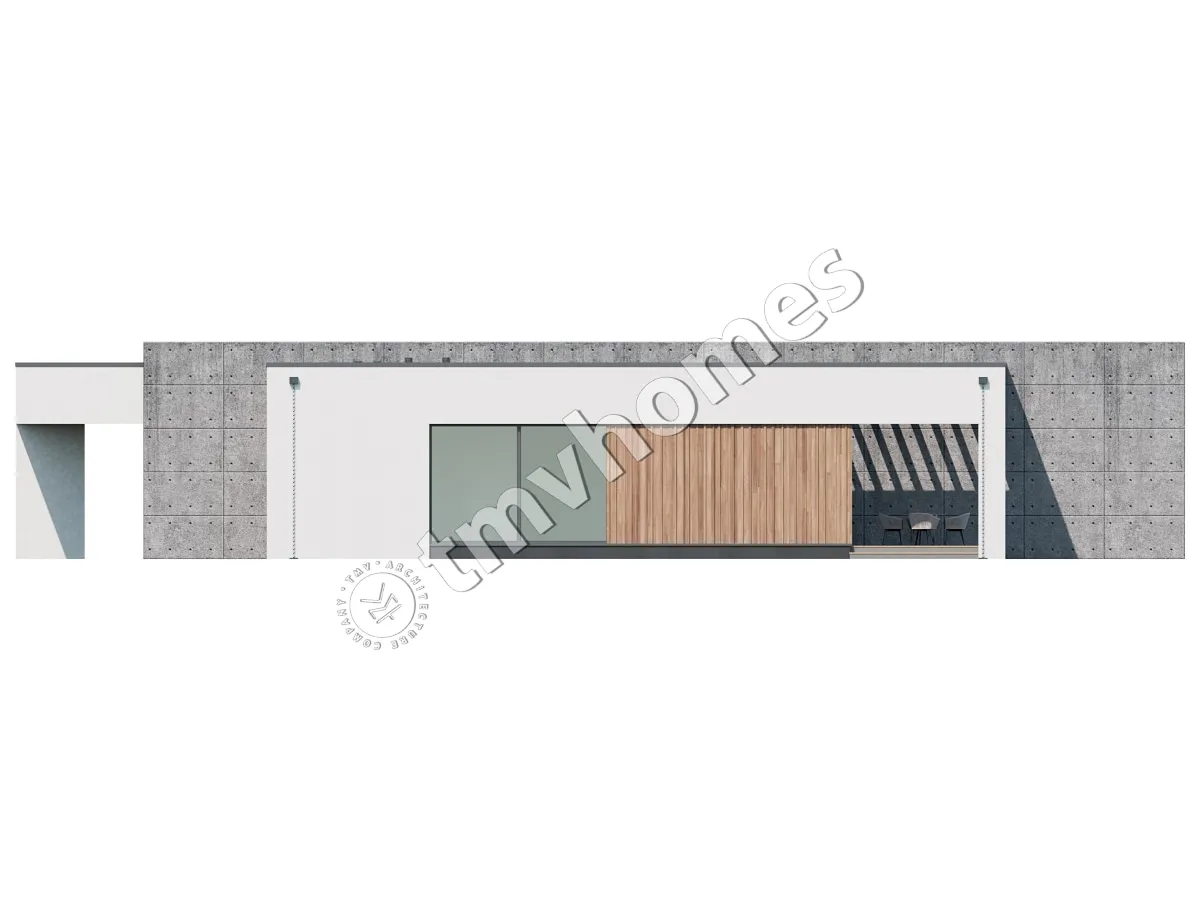

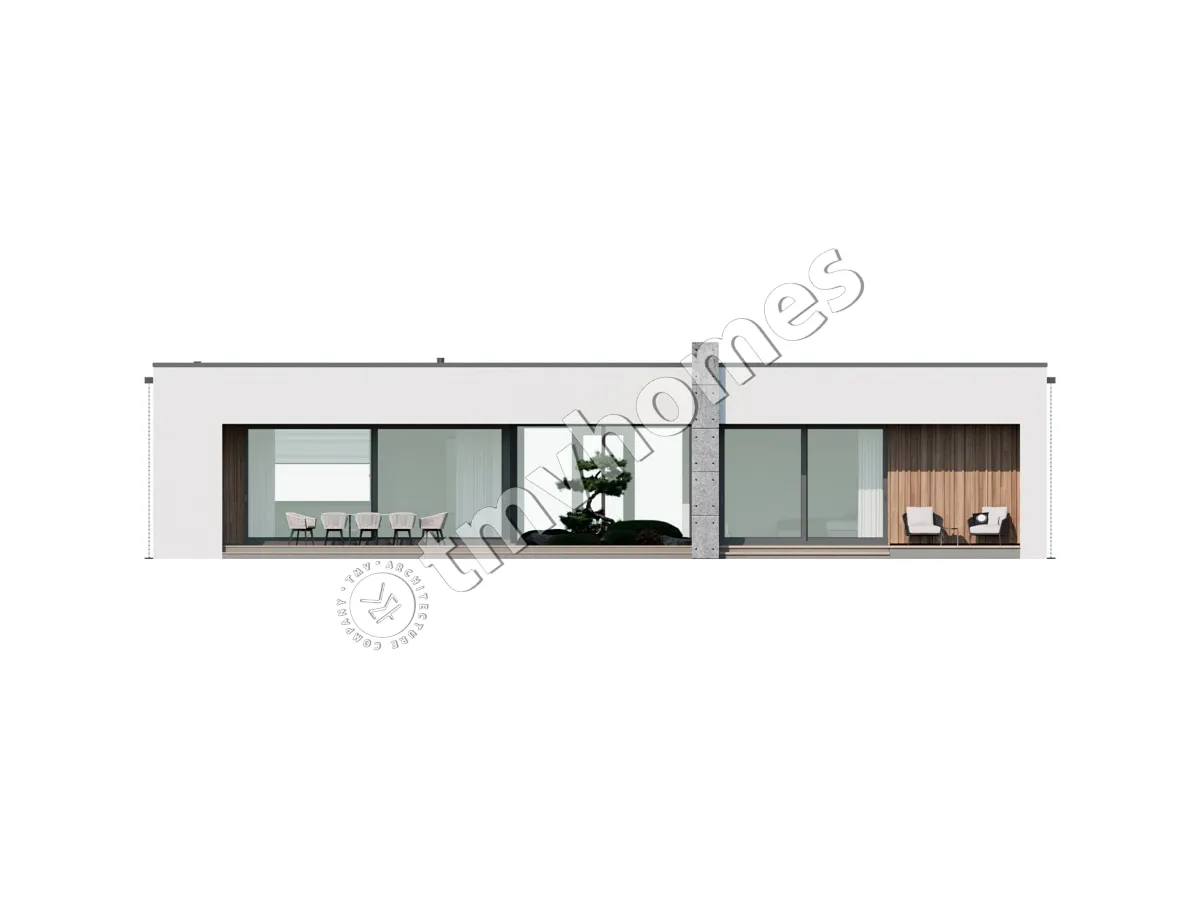

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

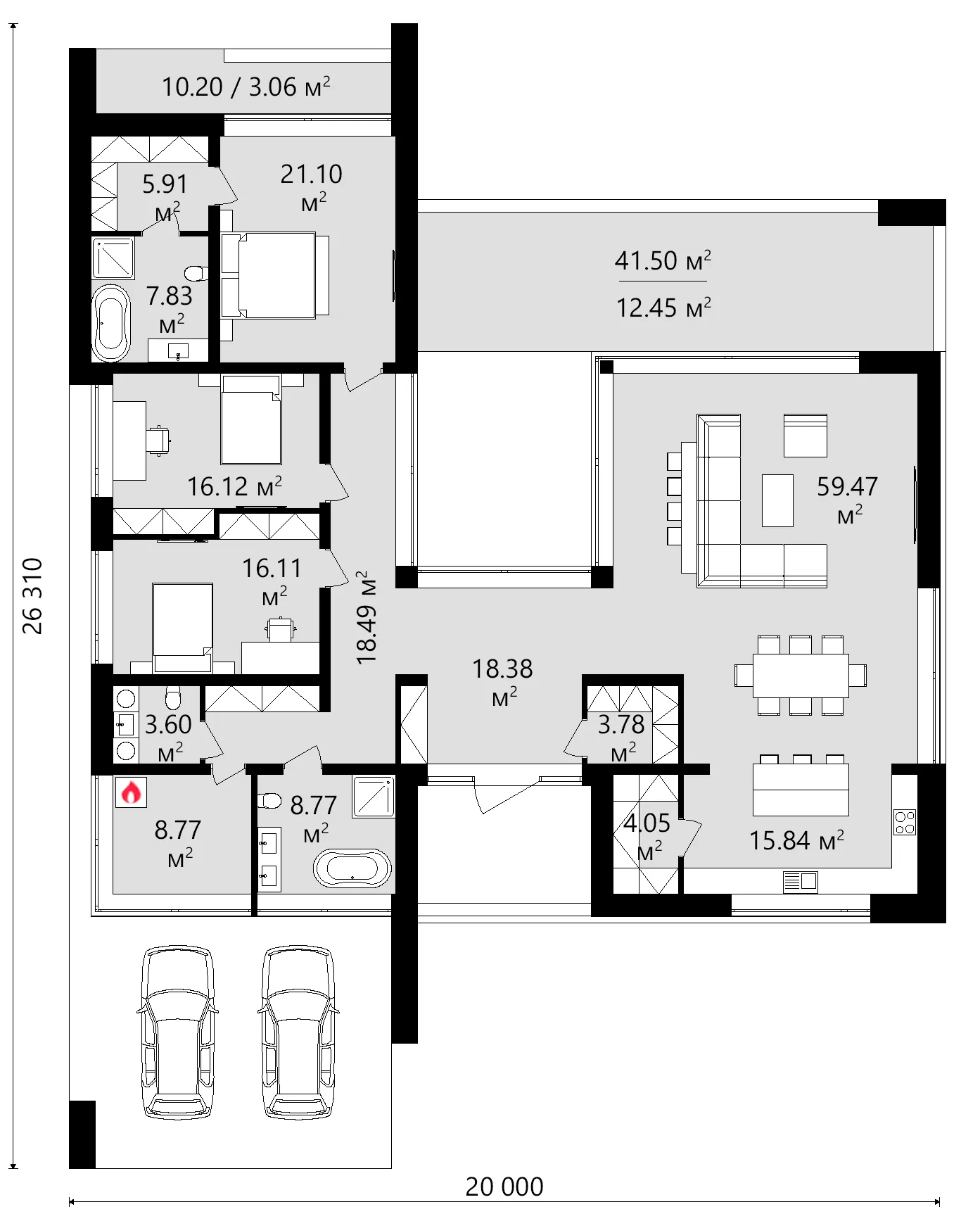

Floor Plans
Main Floor
Main Floor 7 – 1-Story House Plan 2409 ft², 3 Beds — 65455C
Full Specs & Features
Area
Total Heated: 2408.53 ft²
Dimensions
Depth: 80'2" ft
Width: 61'0" ft
Height: 13'8" ft
Garage
Cars: 2
Carport
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Wood
Stucco
Rooms
Full bathrooms: 3
Bedrooms: 3
Utility room
Walk In Closet
Kitchen and Dining
Walk-in Pantry
Breakfast Nook
Island
Interior Features
Main Floor Master
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Covered Rear Porch
Corner Window
Panoramic Windows
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Contemporary
Modern
Roof
Roof Area: 3421.74 ft²
Flat

Home design 65455C is a 3-bedroom bungalow house plan with three full bathrooms and 2409 ft² on a single storey. It has a contemporary, modern look and a flat roof that keeps the profile low and clean. Its U-shaped and H-shaped layout arranges the rooms in wings around a central core, and the single family home measures 61'0" wide and 80'2" deep, rising 13'8" in height. Wood and stucco share the facades. The exterior walls are built of aerated concrete, with clay hollow block or calcium silicate block offered as alternatives on request.

Privacy comes first in the sleeping wing. The main floor master and the two other bedrooms are clustered in one part of the house, away from the sounds of cooking and conversation. A walk-in closet serves the master suite, and three full bathrooms mean no one waits their turn on a school morning. A utility room takes care of laundry, cleaning supplies and household equipment, so chores stay out of the living spaces.

Across the centre of this open floor plan, a large family room and a large kitchen share one generous space. The island gives the household a place to prep, serve and gather for a quick lunch. The walk-in pantry keeps bulk groceries and appliances behind a door, and the breakfast nook offers a separate spot for coffee or homework. Floor-to-ceiling windows, panoramic windows and a corner window open the rooms to daylight and the views outside, a quiet pleasure on short winter afternoons.

At the back of the home, a covered rear porch adds a sheltered outdoor room for summer meals and long evenings in the fresh air. Parking is handled by a two-car carport rather than an enclosed garage, which keeps vehicles covered while the massing stays light. The house has no basement and sits on strip footings, and a slab or concrete block foundation can be ordered instead. For families comparing house plans Canada offers for single-storey living, this modern bungalow pairs large windows throughout with a crisp flat roofline.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.
