Renderings 2 – 2,139 Sq Ft Traditional Single-Story House Plan with Basement, 4 Bedrooms and 2-Car Garage – 51087C
Renderings 3 – 2,139 Sq Ft Traditional Single-Story House Plan with Basement, 4 Bedrooms and 2-Car Garage – 51087C Renderings 4 – 2,139 Sq Ft Traditional Single-Story House Plan with Basement, 4 Bedrooms and 2-Car Garage – 51087C
6
Concept
Construction documents are prepared for the following countries:

2,139 Sq Ft Traditional T-Shaped Single-Story House Plan with Basement, 4 Bedrooms, 3 Bathrooms and 2-Car Garage

Plan
51087C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2139
Total Heated ft²
3 + 0
Baths + 1/2 Baths
4 + 0
Beds + Home Office
2
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

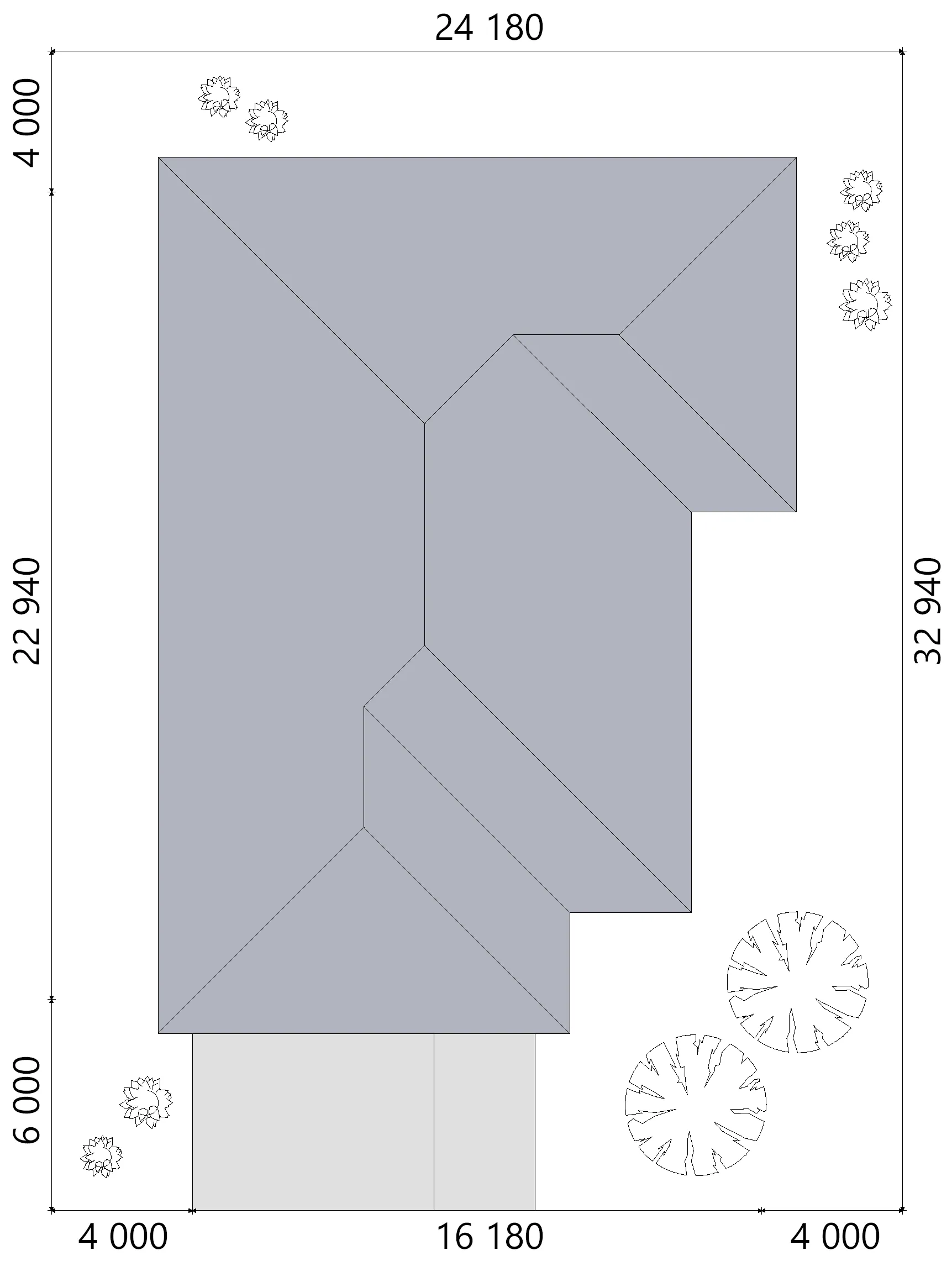

Rzut dachu

Przekroje

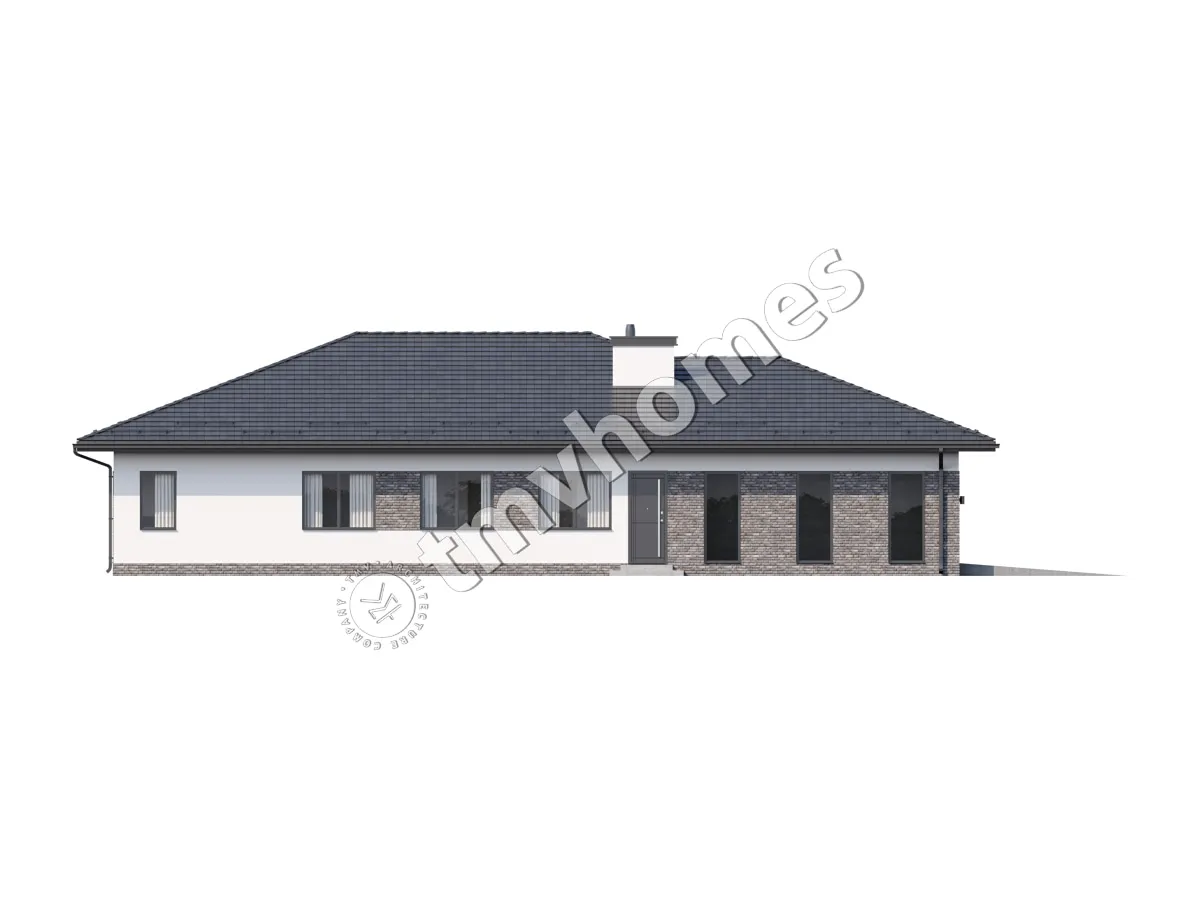

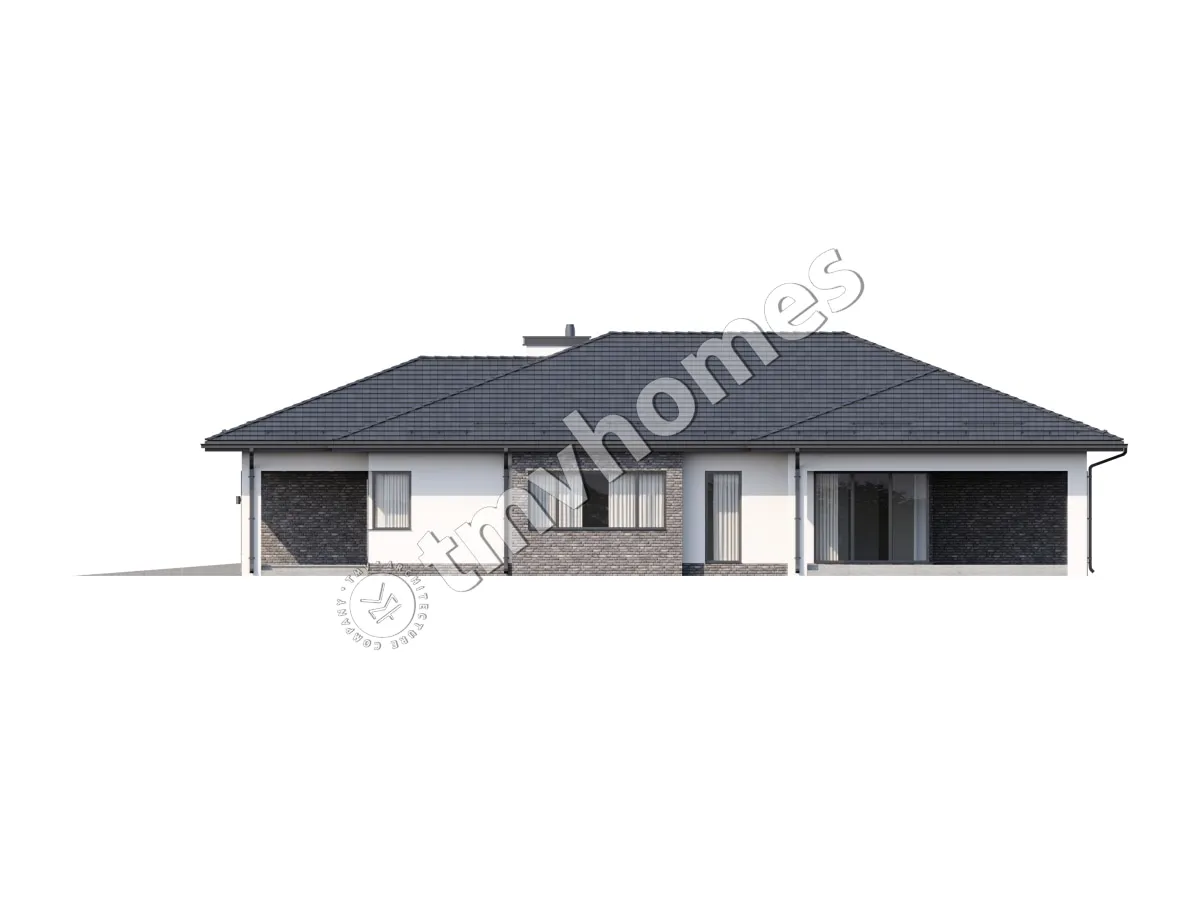

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

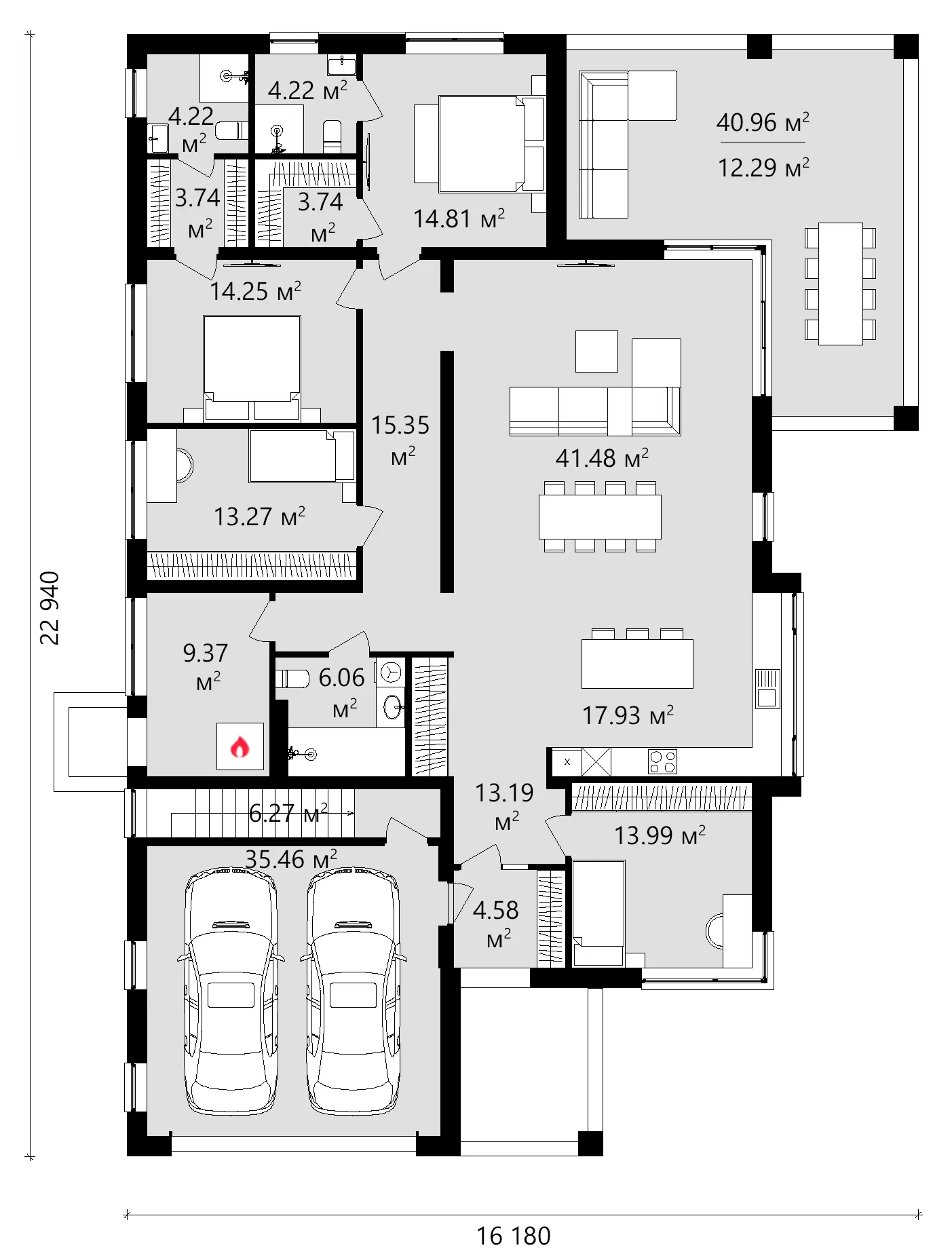

Main Floor
Main Floor 12 – 2,139 Sq Ft Traditional Single-Story House Plan with Basement, 4 Bedrooms and 2-Car Garage – 51087C
Basement
Basement 11 – 2,139 Sq Ft Traditional Single-Story House Plan with Basement, 4 Bedrooms and 2-Car Garage – 51087C
Full Specs & Features
Area
Basement: 422.59 ft²
Total Unheated: 804.28 ft²
Total Heated: 2139.43 ft²
Dimensions
Depth: 69'9" ft
Width: 49'3" ft
Height: 20'0" ft
Garage
Area: 382 ft²
Cars: 2
Front Entry
Extension Forward
Foundation
Concrete Stem Wall (Optional)
Slab (Optional)
Block Stem Wall (Optional)
Full Basement
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Stone/Brick Veneer
Stucco
Rooms
Full bathrooms: 3
Bedrooms: 4
Utility room
Entry
Storage
Walk In Closet
Kitchen and Dining
Island
Interior Features
Main Floor Master
2 Master Suites
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Covered Rear Porch
Corner Window
Large Windows
Floor-to-Ceiling Windows
Architectural Style
European
Traditional
Roof
Roof Area: 4560.45 ft²
Hip & Valley
Roof Pitch: 5/12 (22°)

Designed as a 4-bedroom bungalow house plan, Plan 51087C places 2,139 Sq Ft on a single storey, with a full basement below and a hip & valley roof above. This 1-storey home blends European and Traditional character, pairing stone/brick veneer with stucco across a T-shaped form. The roof is set at a 5/12 (22°) pitch, and the house is 49'3" wide and 69'9" deep, with a height of 20'0". The walls are framed in aerated concrete, while clay block and calcium silicate block framing can be supplied on request.

The sleeping arrangement is what sets this design apart. It includes 2 master suites, one of them a main floor master, so grandparents, adult children or long-term guests can have a private retreat of their own without anyone giving up comfort. All four bedrooms are clustered together, keeping the quiet side of the house compact and easy to manage, and a walk-in closet adds generous space for clothing. Three full bathrooms serve the household, enough for school-day mornings without a queue at any door. A utility room takes care of laundry and household chores, and a dedicated storage room absorbs sports gear, holiday décor and everything else that tends to drift into the living areas.

Past the entry, an open floor plan joins a large family room and a large kitchen into one generous living zone. The island is the working centre of the kitchen, offering prep space and a natural spot for casual meals, and because no walls close it off, whoever is cooking stays part of the conversation. Floor-to-ceiling windows, large windows and a corner window brighten the main rooms; on a short winter afternoon, that daylight makes a noticeable difference.

Outside, the 2-car garage is front entry and extends forward of the main house, giving the façade a layered, welcoming profile. A covered rear porch provides a sheltered place for morning coffee or an evening meal with the family. Below, the full basement offers room for mechanical equipment, extra storage or future finishing, and strip footings, a slab or a block foundation are also available on request. For anyone browsing house plans Canada for a bungalow with a basement and two master suites, this home design combines single-level convenience with space for a larger household.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept (Metric)
CA$1675
Subtotal
Payment Protection: Plansplace releases your payment to the seller only after your plan set is delivered, digitally or in print.
Local Architects
Offers from your local architects who are ready to develop construction documents based on the digital concept.
