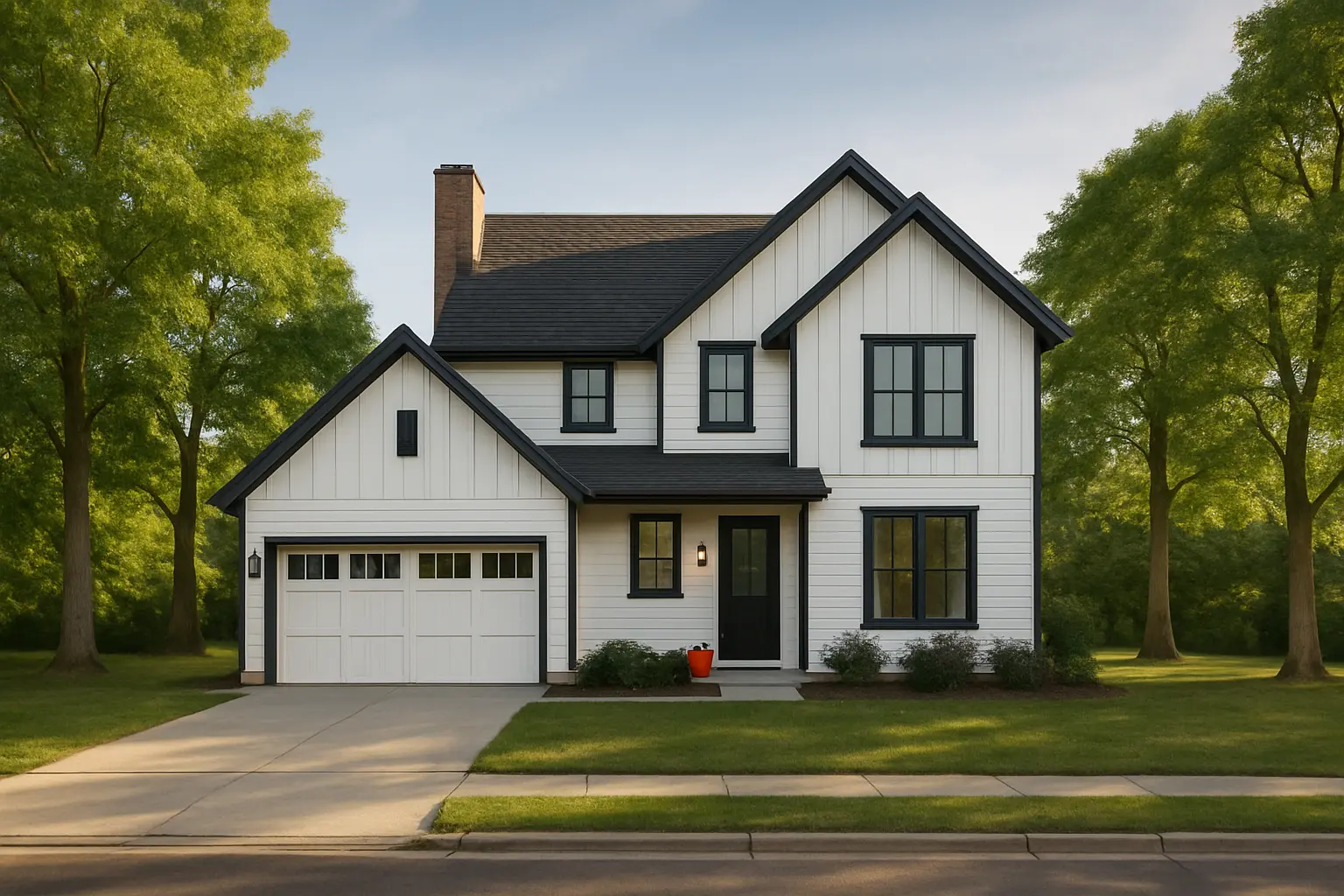

2-Story House Plan 2800 ft²: 2 Beds, Home Office, 3 Baths, Open Floor Plan, 2-Car Garage
2-Story House Plan 2800 ft²: 2 Beds, Home Office, 3 Baths, Open Floor Plan, 2-Car Garage 2-Story House Plan 2800 ft²: 2 Beds, Home Office, 3 Baths, Open Floor Plan, 2-Car Garage
6
Construction documents are prepared for the following countries:

2-Story House Plan 2800 ft²: 2 Beds, Home Office, 3 Baths, Open Floor Plan, 2-Car Garage

Plan
47209R
Complete
Unsigned & Unsealed
DC None
Key Specs
2800
Total Heated ft²
3 + 0
Baths + 1/2 Baths
2 + 1
Beds + Home Office
2
Cars
Architectural drawings

Cover sheet

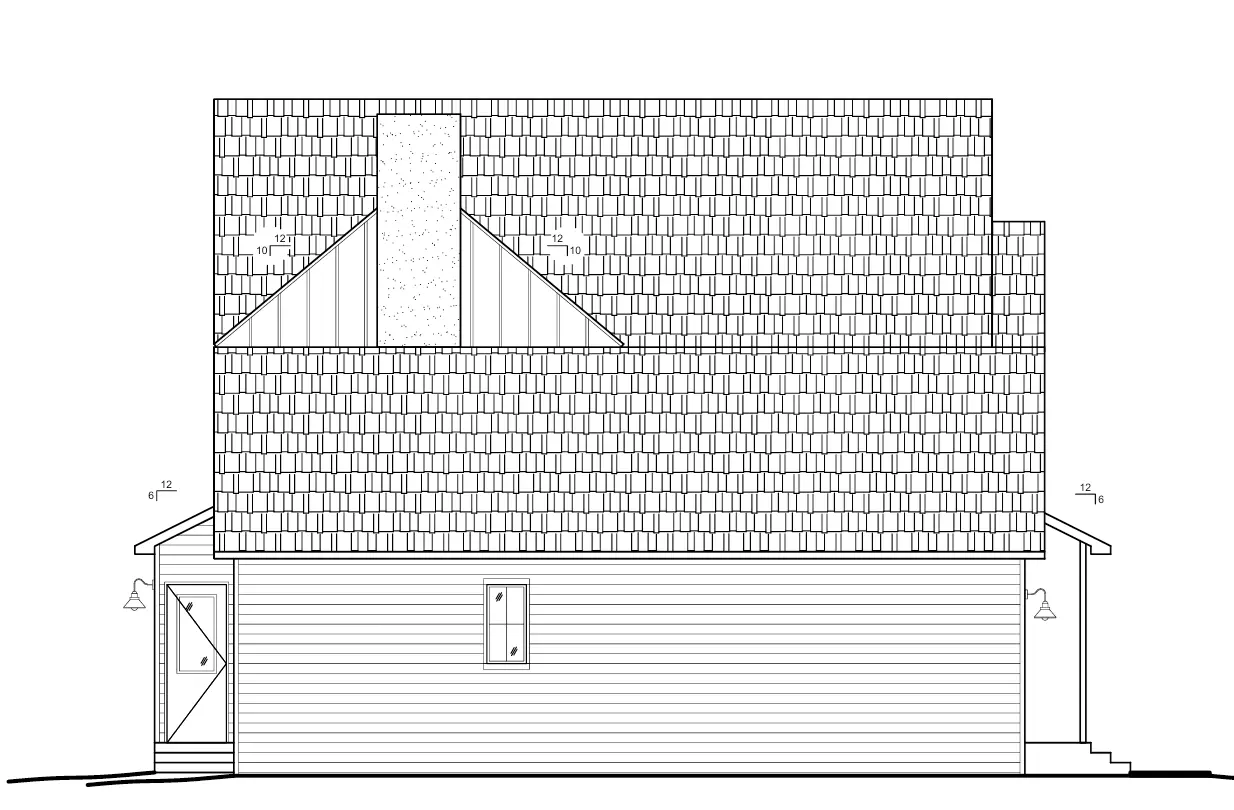

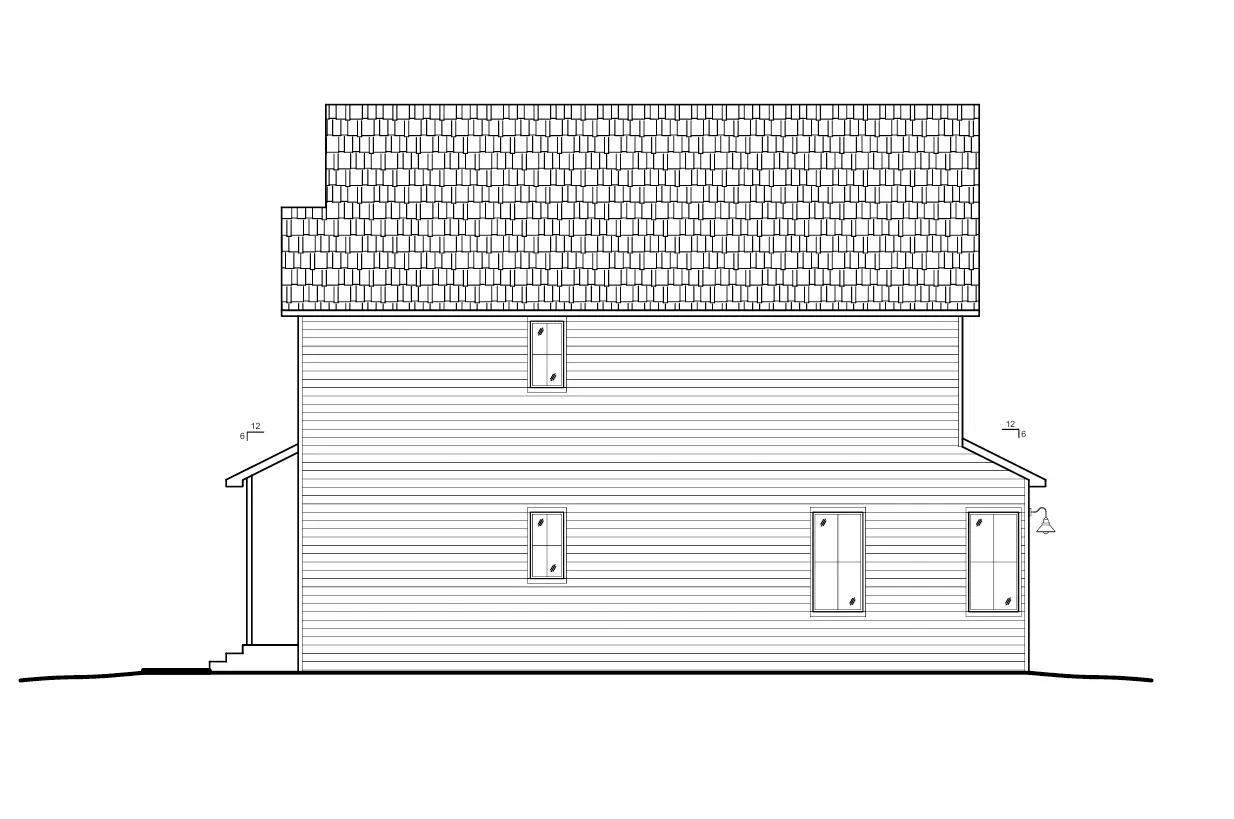

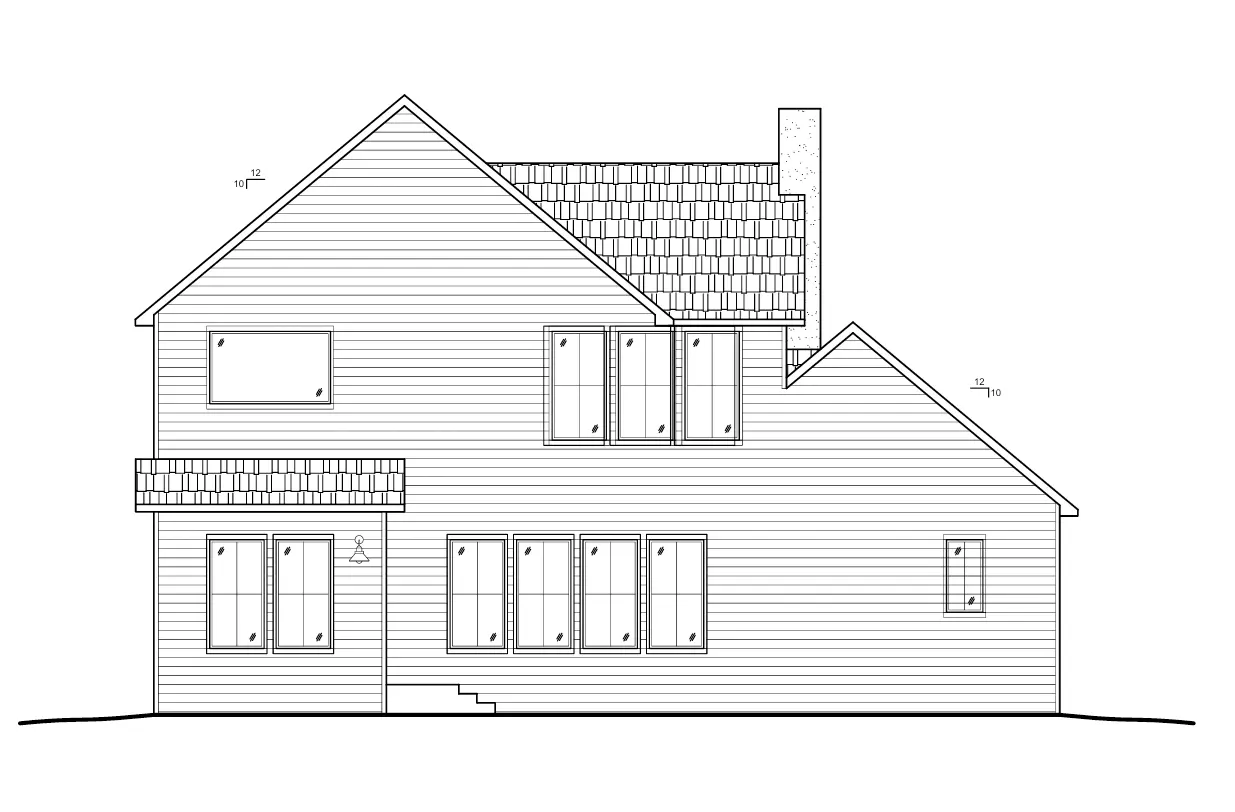

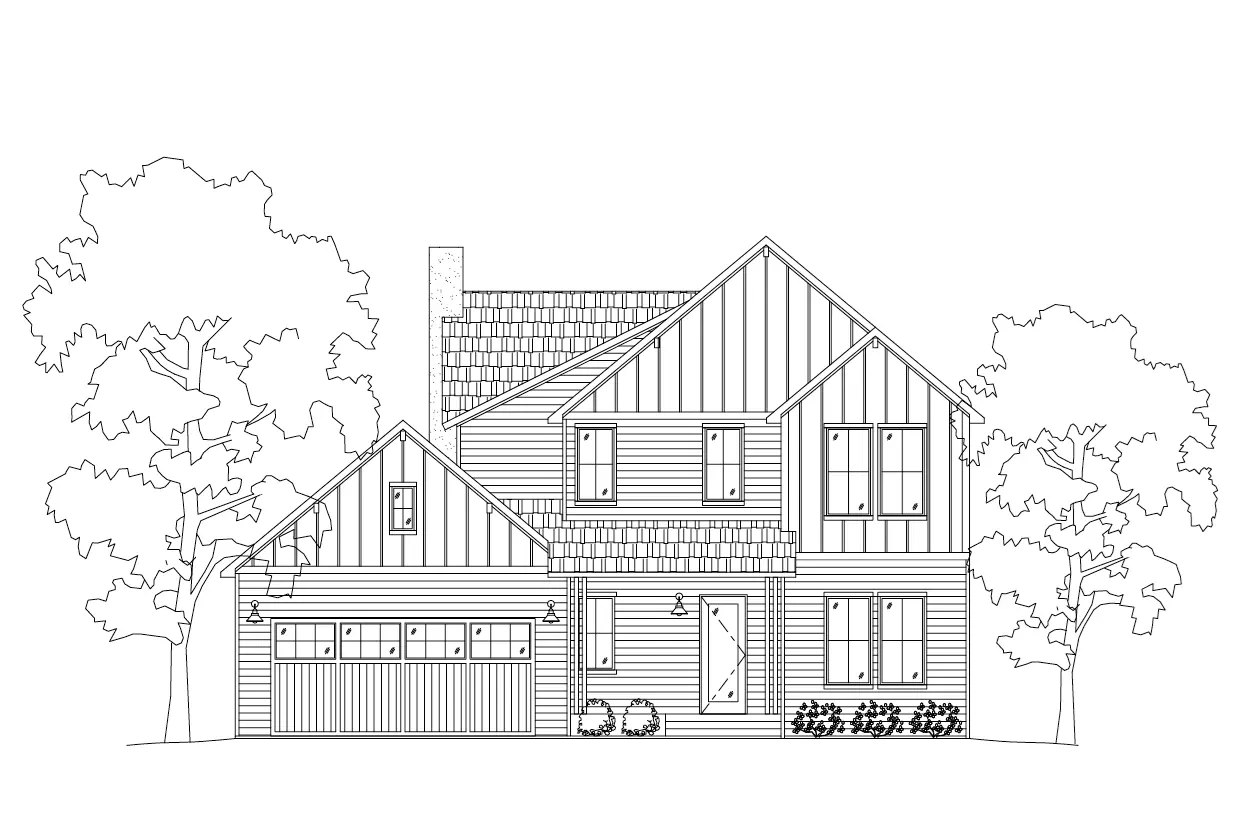

Exterior elevations

Interior elevations

Roof plan

Foundation plan

Cross-section details

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

If you would like to modify this house plan, you have two options:

1. Modifications by the Original Architect: Work directly with the original architect to purchase a modified digital concept, then forward it to your local architect to order the construction documents.

2. Modifications by Your Local Architect: Purchase the digital concept as-is, work with your local architect to make changes, and then proceed with ordering the construction documents.

Floor Plans

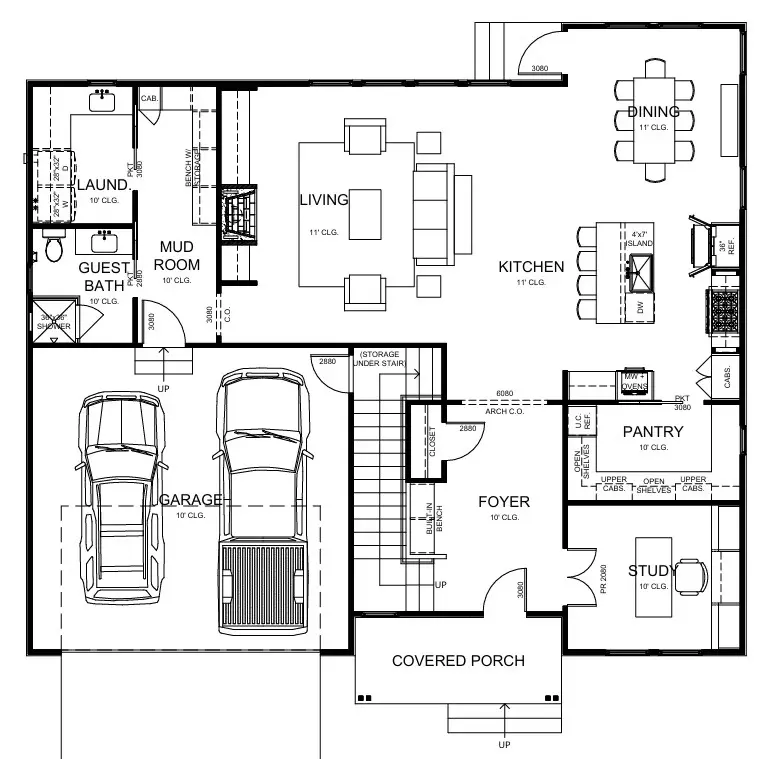

Main Floor
47209R - Main Floor

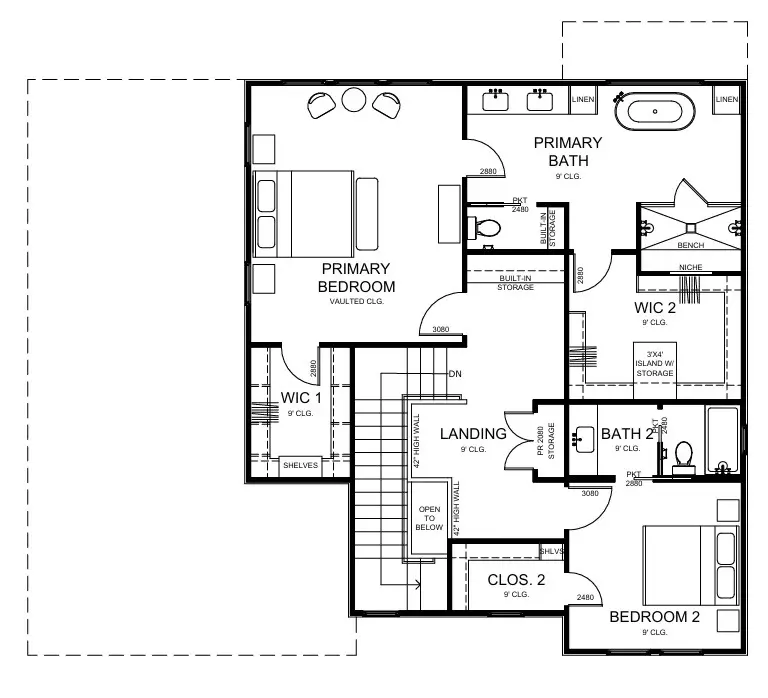

Second Floor
47209R - Second Floor
Full Specs & Features
Area
Main Floor: 1530 ft²
Second Floor: 1270 ft²
Total Heated: 2800 ft²
Dimensions
Depth: 43'9" ft
Width: 49'9" ft
Height: 32'6" ft
Garage
Area: 480 ft²
Cars: 2
Garage with Upstairs
Front Entry
Foundation
Slab
Exterior Wall Framing
2x4″ Lumber
Exterior Wall Materials
Siding
Rooms
Full bathrooms: 3
Bedrooms: 2
Laundry
Entry
Home Office
Walk In Closet
Mudroom
Kitchen and Dining
Walk-in Pantry
Breakfast bar
Breakfast Nook
Island
Interior Features
Laundry On Main Floor
Fireplace in Family Room
Second Floor Master
Split Bedrooms
Open to Below
Open Floor Plan
Large Kitchen (>130 ft²)
Exterior Features
Covered Front Porch
Large Windows
Architectural Style
Farmhouse
American
Modern Farmhouse
Roof
Hip & Valley
Roof Pitch: 10/12 (40°)
Ceiling
Main Floor Ceiling Height: 11'0" ft
Second Floor Ceiling Height: 9'0" ft
Architect
Plan & Simple LLC Plan & Simple LLC Architectural Designer country with code us United States
country with code us United States
Texas, Au
+17372311456
https://www.plansimpledesign.com/
Plan Package

The house plan might not adhere to the building codes of your country.

The architect does not sell digital concept or construction documents for your country. You can check the “Building codes match” box and view the Plan Package for the architect’s home country.

planSelect.safeCheckout.header: planSelect.safeCheckout.body
