1-Story House Plan 1290 ft²: 2 Beds, 2 Baths, Open Floor Plan, without Garage

Plan
88071R
Complete
Unsigned & Unsealed
DC None
Key Specs
1290
Total Heated ft²
2 + 0
Baths + 1/2 Baths
2 + 0
Beds + Home Office
1
Cars (Carport)
Architectural drawings

Cover sheet

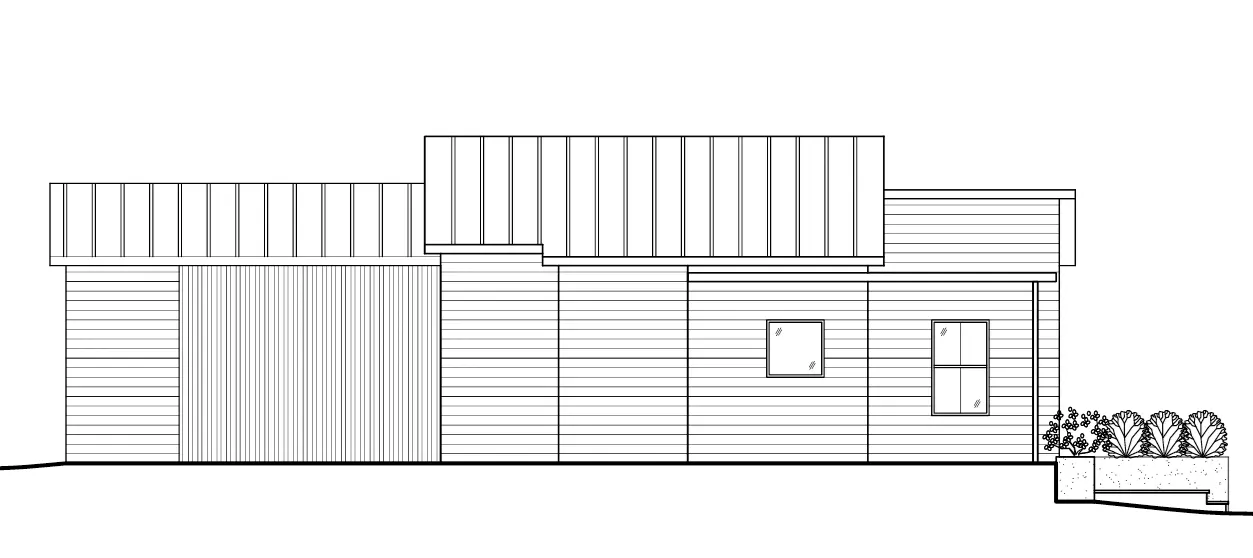

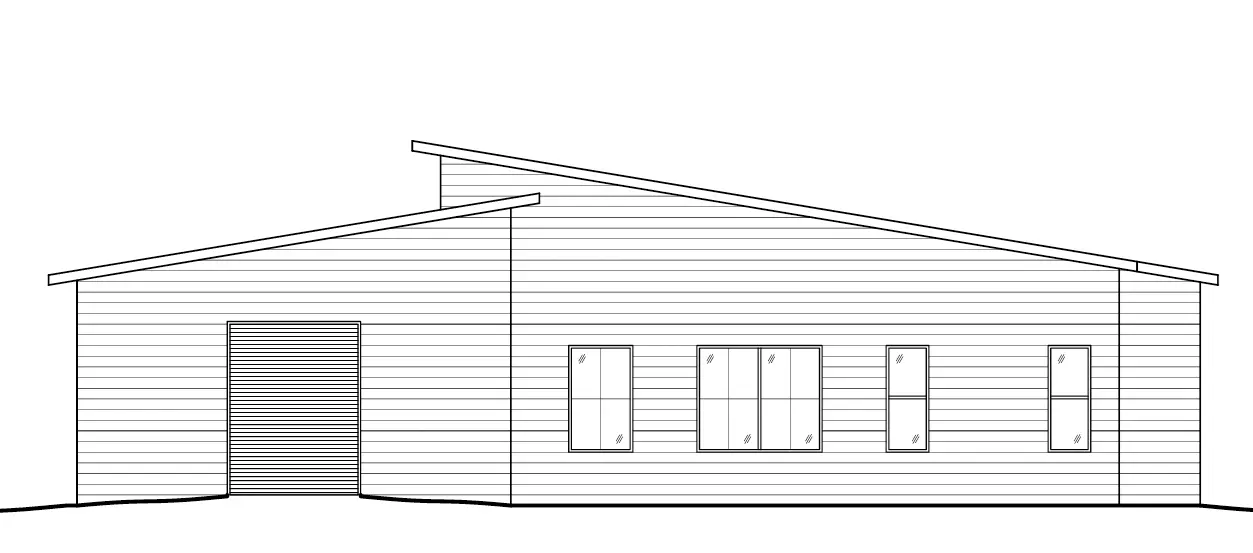

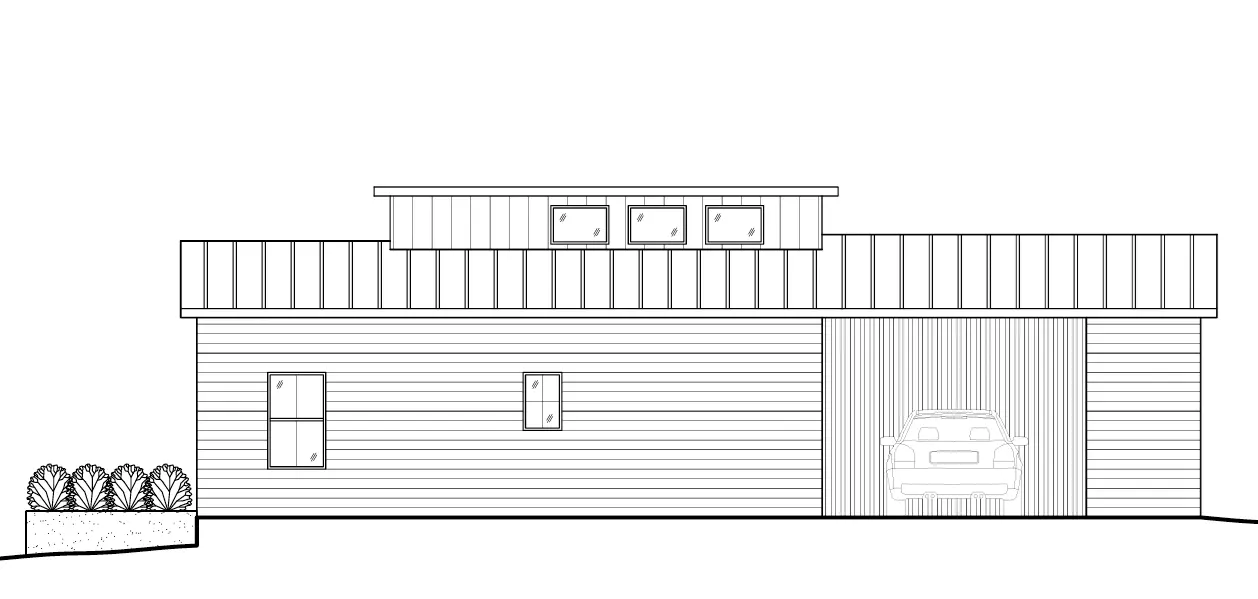

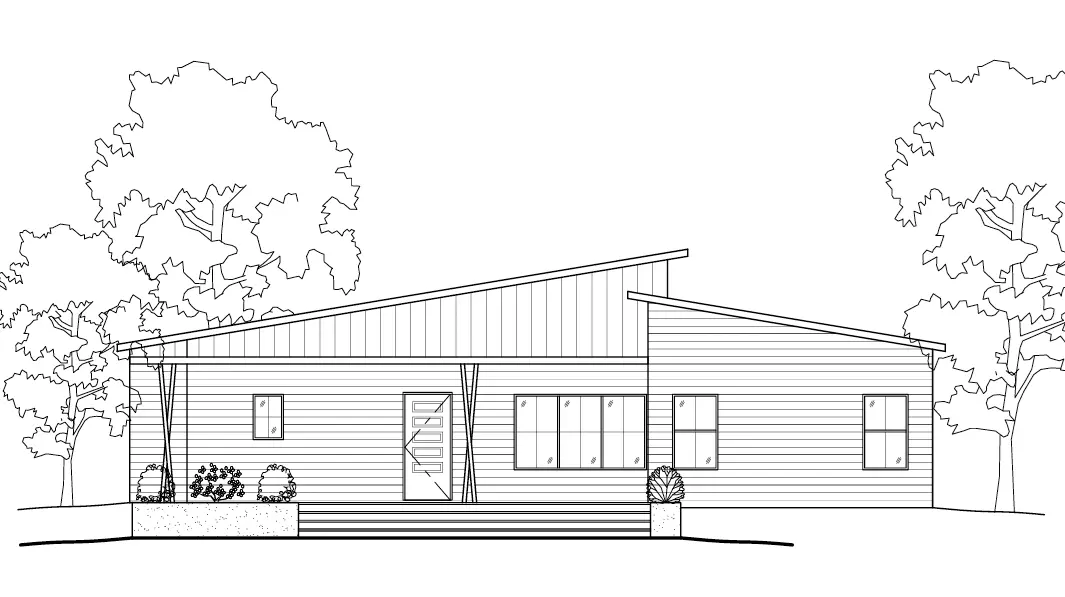

Exterior elevations

Interior elevations

Roof plan

Foundation plan

Cross-section details

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

If you would like to modify this house plan, you have two options:

1. Modifications by the Original Architect: Work directly with the original architect to purchase a modified digital concept, then forward it to your local architect to order the construction documents.

2. Modifications by Your Local Architect: Purchase the digital concept as-is, work with your local architect to make changes, and then proceed with ordering the construction documents.

Floor Plans
Main Floor

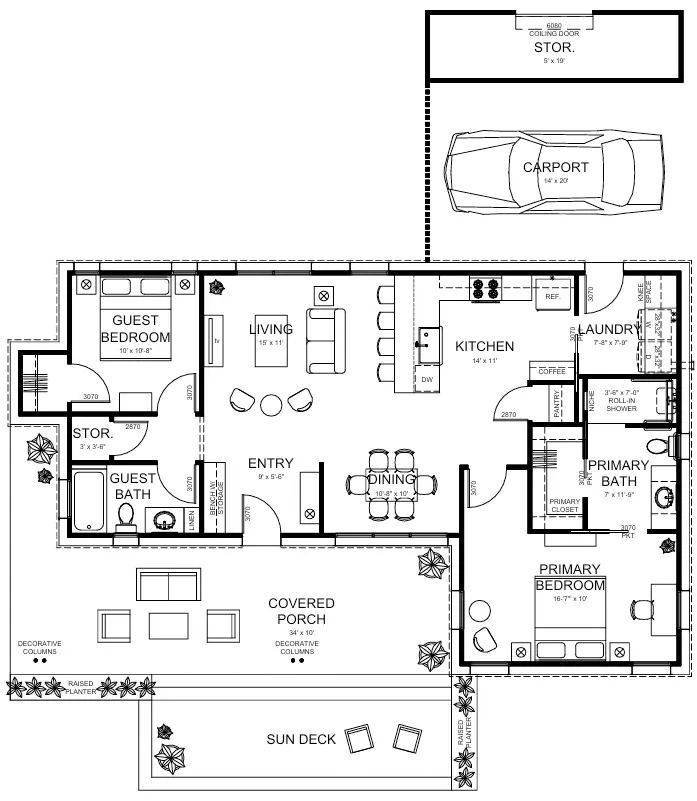

88071R - Main Floor
Full Specs & Features
Area
Main Floor: 1290 ft²
Total Heated: 1290 ft²
Dimensions
Depth: 51'9" ft
Width: 53'1" ft
Height: 16'7" ft
Garage
Cars: 1
Carport
Rear Entry
Foundation
Pier post beam
Exterior Wall Framing
2x4″ Lumber
Exterior Wall Materials
Siding
Rooms
Full bathrooms: 2
Bedrooms: 2
Laundry
Entry
Storage
Walk In Closet
Kitchen and Dining
Walk-in Pantry
Breakfast bar
Breakfast Nook
Interior Features
Laundry On Main Floor
Main Floor Master
2 Master Suites
Split Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Wrap Around Porch
Covered Front Porch
Deck
Architectural Style
Bungalow
Cabin
Modern
American
Roof
Double Shed
Roof Pitch: 2/12 (9.5°)
Ceiling
Main Floor Ceiling Height: 10'0" ft
Architect
Plan & Simple LLC Plan & Simple LLC Architectural Designer country with code us United States
Plan Package

The house plan might not adhere to the building codes of your country.

The architect does not sell digital concept or construction documents for your country. You can check the “Building codes match” box and view the Plan Package for the architect’s home country.
