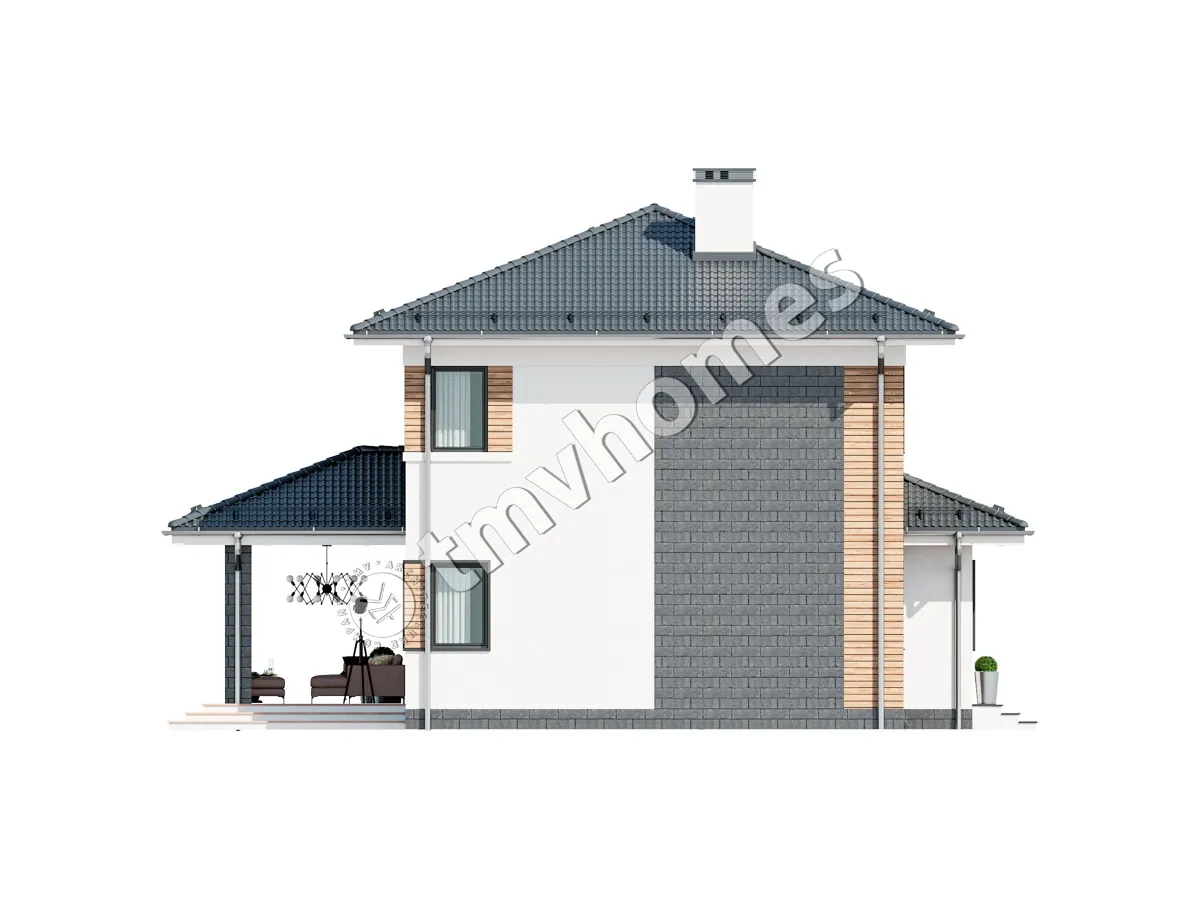

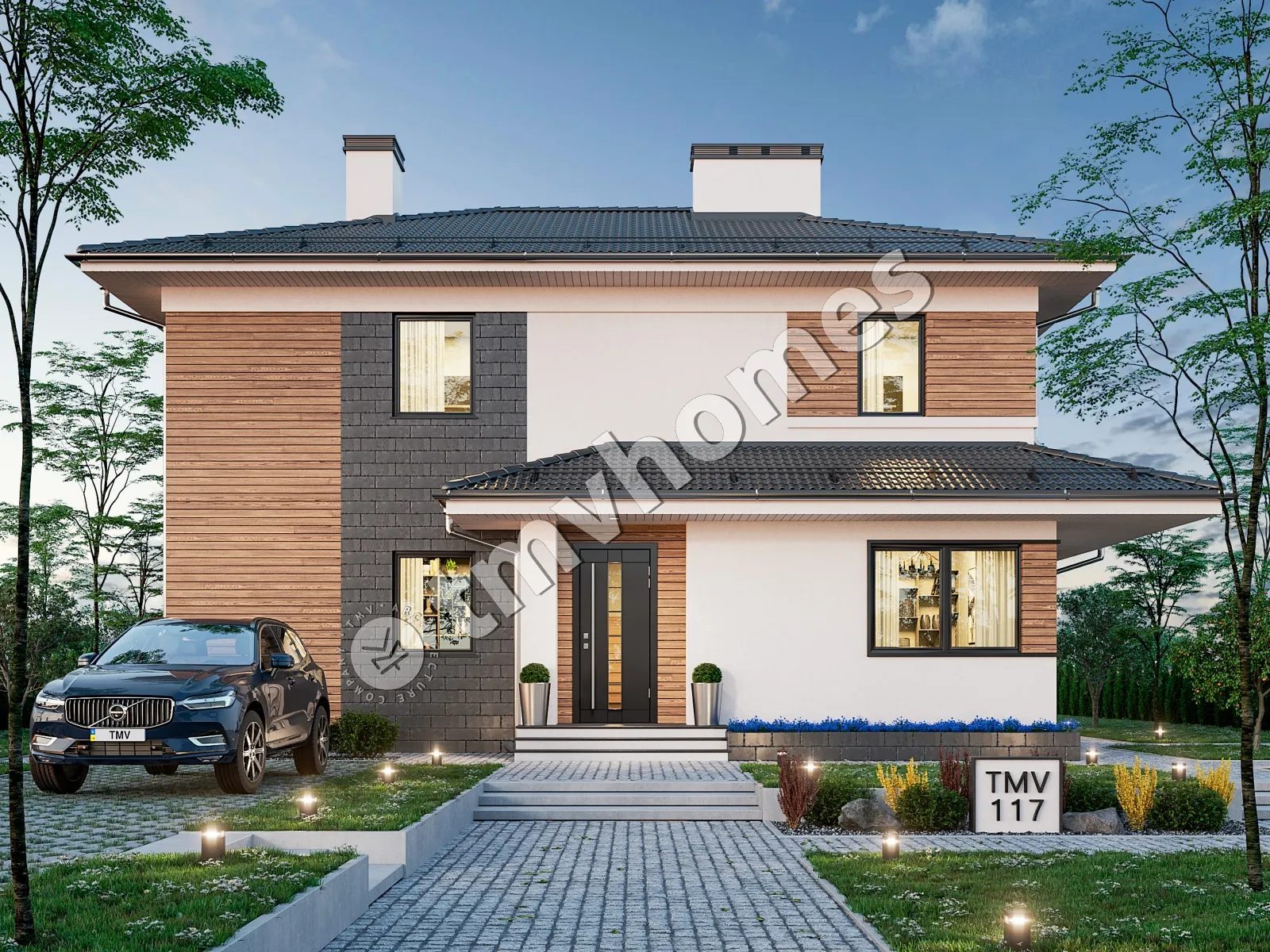

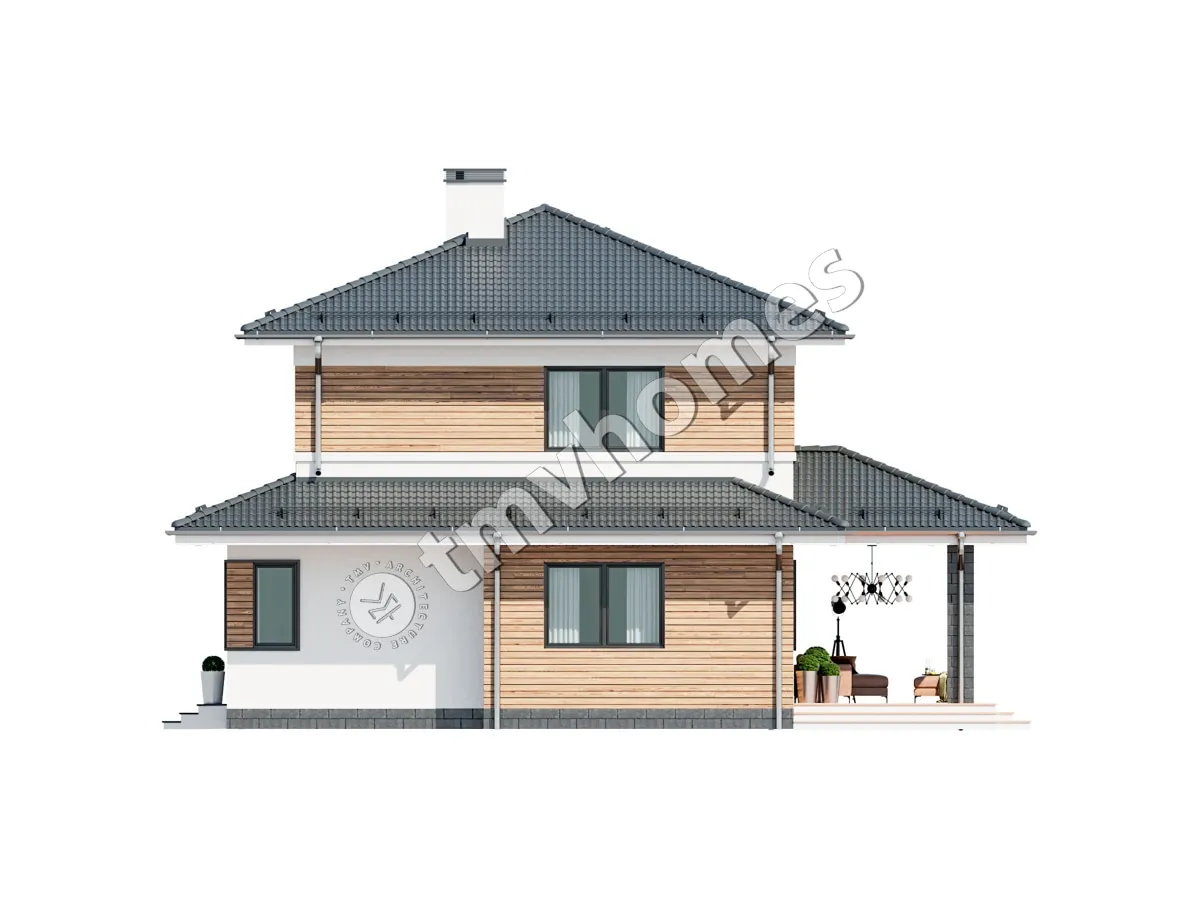

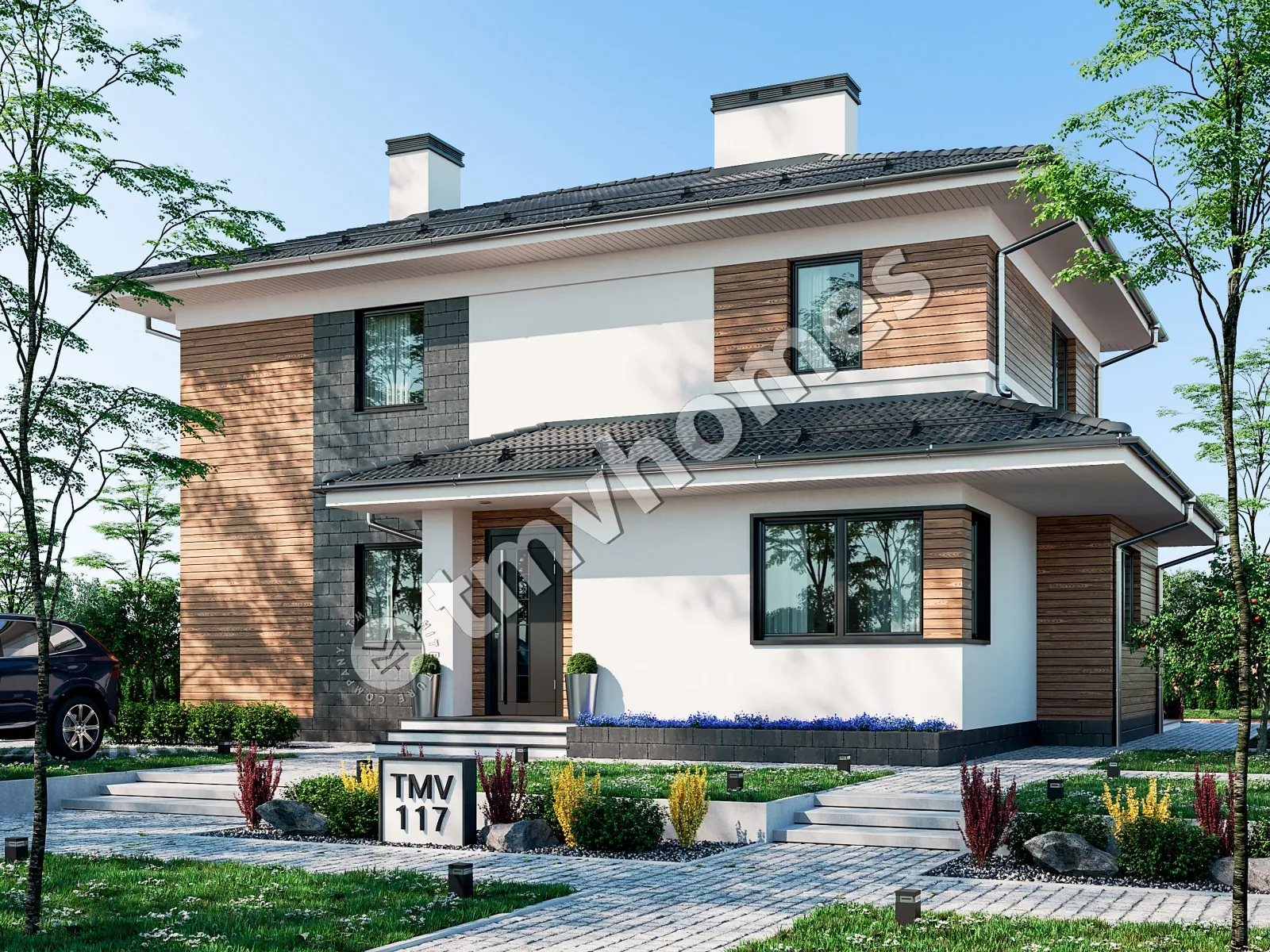

Renderings 2 – 2-Story House Plan 1995 ft², 3 Beds — 42242R
Renderings 3 – 2-Story House Plan 1995 ft², 3 Beds — 42242R Renderings 4 – 2-Story House Plan 1995 ft², 3 Beds — 42242R
8
Construction documents are prepared for the following countries:

2-Story House Plan 1995 ft²: 3 Beds, 3 Baths, without Garage

Plan
42242R
Complete
Signed & Sealed
DC Available
Key Specs
1995
Total Heated ft²
3 + 0
Baths + 1/2 Baths
3 + 0
Beds + Home Office
0
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

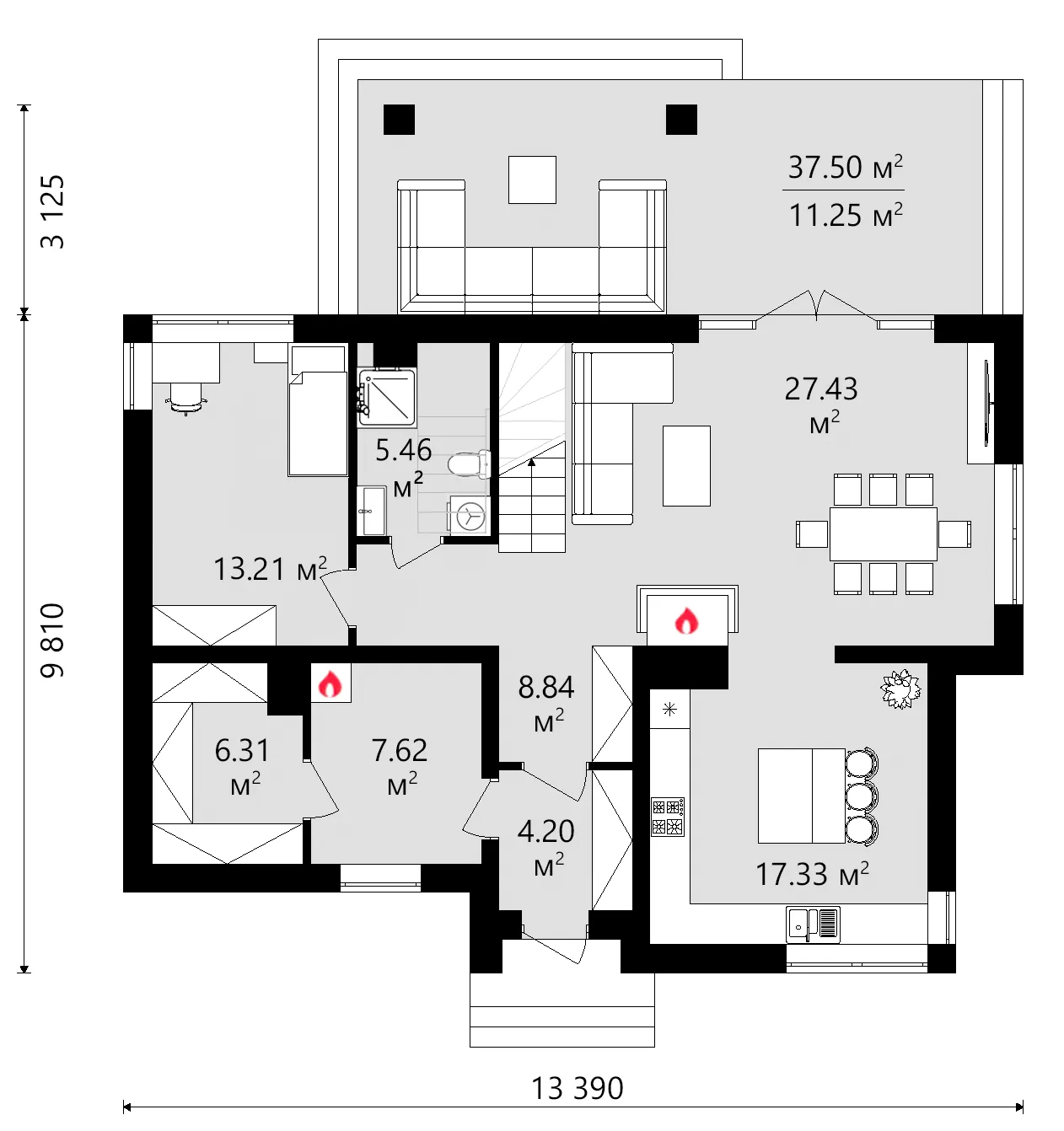

Main Floor
Main Floor 13 – 2-Story House Plan 1995 ft², 3 Beds — 42242R

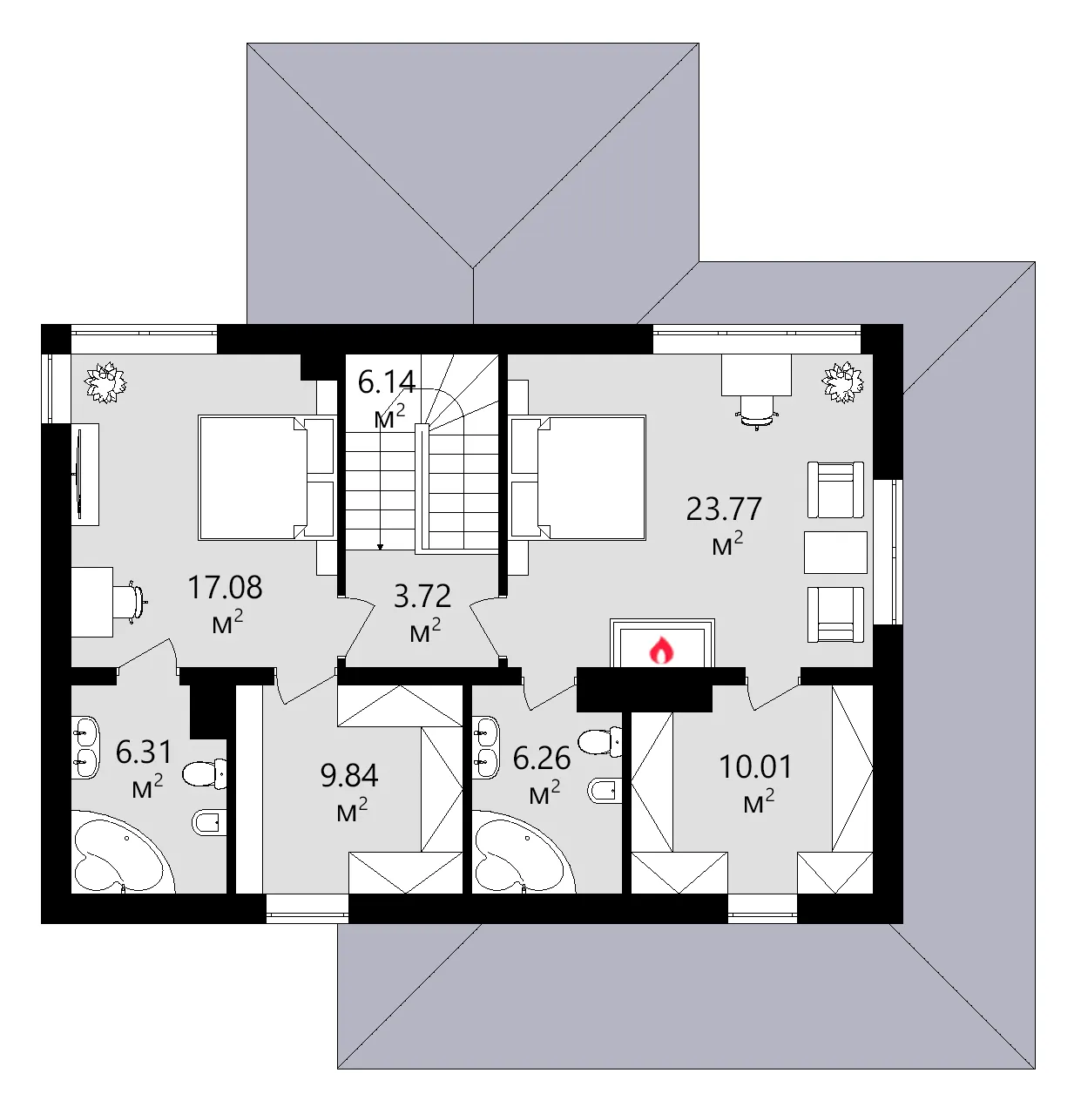

Second Floor
Second Floor 14 – 2-Story House Plan 1995 ft², 3 Beds — 42242R
Full Specs & Features
Area
Total Heated: 1994.66 ft²
Dimensions
Depth: 39'4" ft
Width: 40'8" ft
Height: 27'5" ft
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Wood
Stucco
Rooms
Full bathrooms: 3
Bedrooms: 3
Utility room
Entry
Storage
Walk In Closet
Kitchen and Dining
Breakfast bar
Island
Corner Window
Interior Features
Fireplace in Family Room
Fireplace in Master Suite
Second Floor Master
2 Master Suites
Clustered Bedrooms
Closed Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Covered Rear Porch
Corner Window
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Contemporary
European
Modern
Roof
Roof Area: 2499.27 ft²
Hip
Roof Pitch: 5/12 (22°)

Spread across three storeys, Plan 42242R is a 3-bedroom 3-storey house plan that pairs Contemporary and European lines with a hip roof at a 5/12 (22°) pitch and 1995 ft² of living space. Stucco and wood share the exterior walls, and generous glazing, from floor-to-ceiling windows and large windows to a corner window, keeps the modern facade open to daylight. The single family home is 40'8" wide and 39'4" deep, rising to a height of 27'5". Its walls are framed in aerated concrete, with ceramic block or sand-lime block framing offered on request.

The sleeping quarters are where this home design truly stands apart. Of the three bedrooms, two are master suites, so parents and a grown child or a visiting grandparent can each enjoy a private retreat. The principal suite sits on the second floor and has its own fireplace along with a walk-in closet; on a cold night, a fire a few steps from the bed is hard to beat. The bedrooms are clustered together for quiet, and three full bathrooms mean nobody waits their turn in the morning. A utility room and dedicated storage give the household a proper place for chores, tools and seasonal gear.

A defined entry welcomes guests and leads into a closed floor plan in which each room keeps its own character and its own sense of privacy. The large family room has a fireplace as its focal point and plenty of space for a sectional, a reading corner and family game nights. In the large kitchen, an island provides room for meal prep, a breakfast bar seats a quick bite before school or work, and a corner window lets light reach the counters from two sides while the cook is busy.

Behind the house, a covered rear porch adds sheltered outdoor living for long meals and quiet evenings outside. The home rests on strip footings and has no basement, and it can also be built on a slab or a concrete block foundation. The plan does not include a garage, keeping the design focused on the house itself. For families browsing house plans Canada for a three-storey contemporary home with two master suites, two fireplaces and 1995 ft² of carefully zoned rooms, Plan 42242R deserves a close look.
