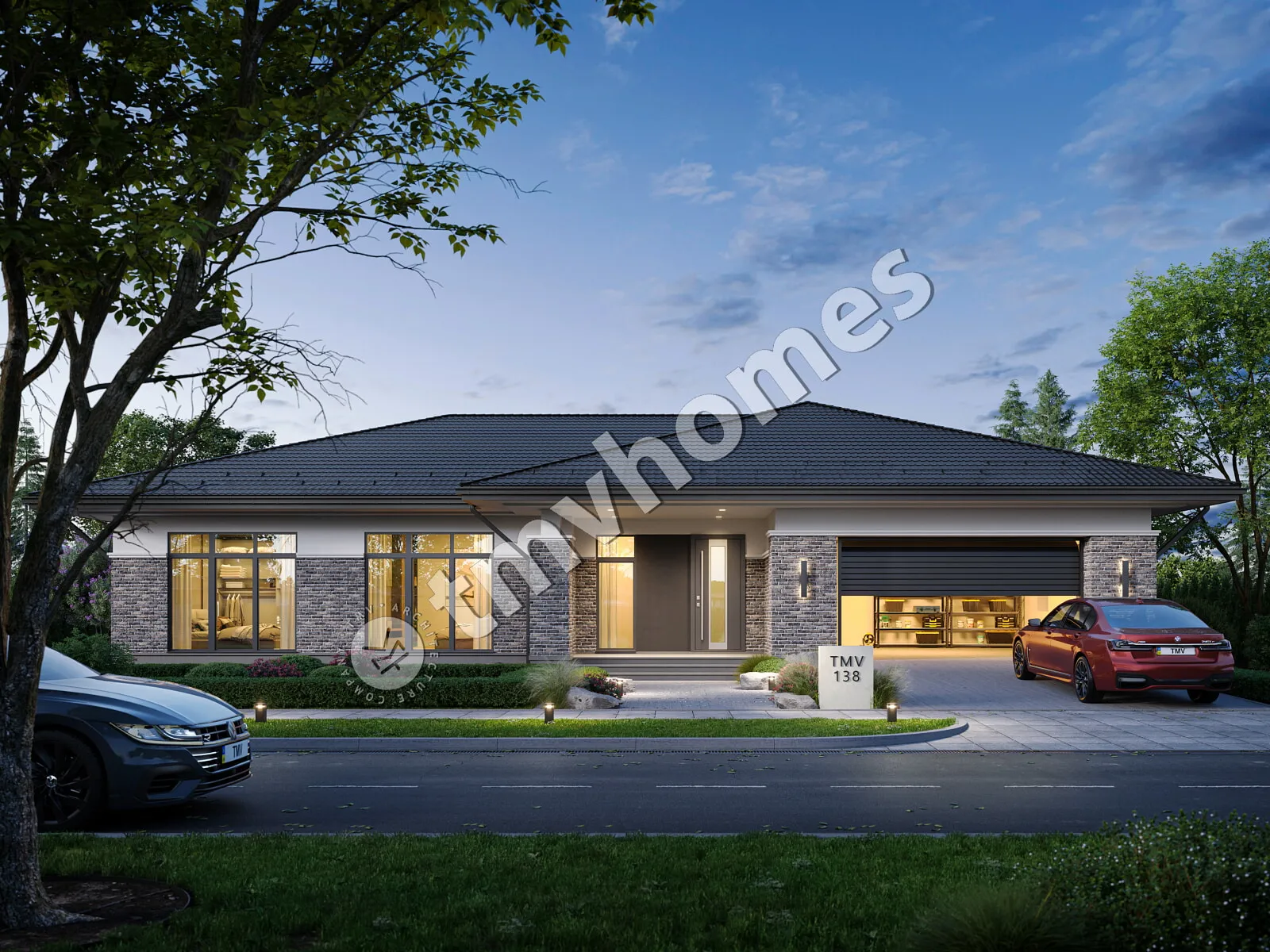

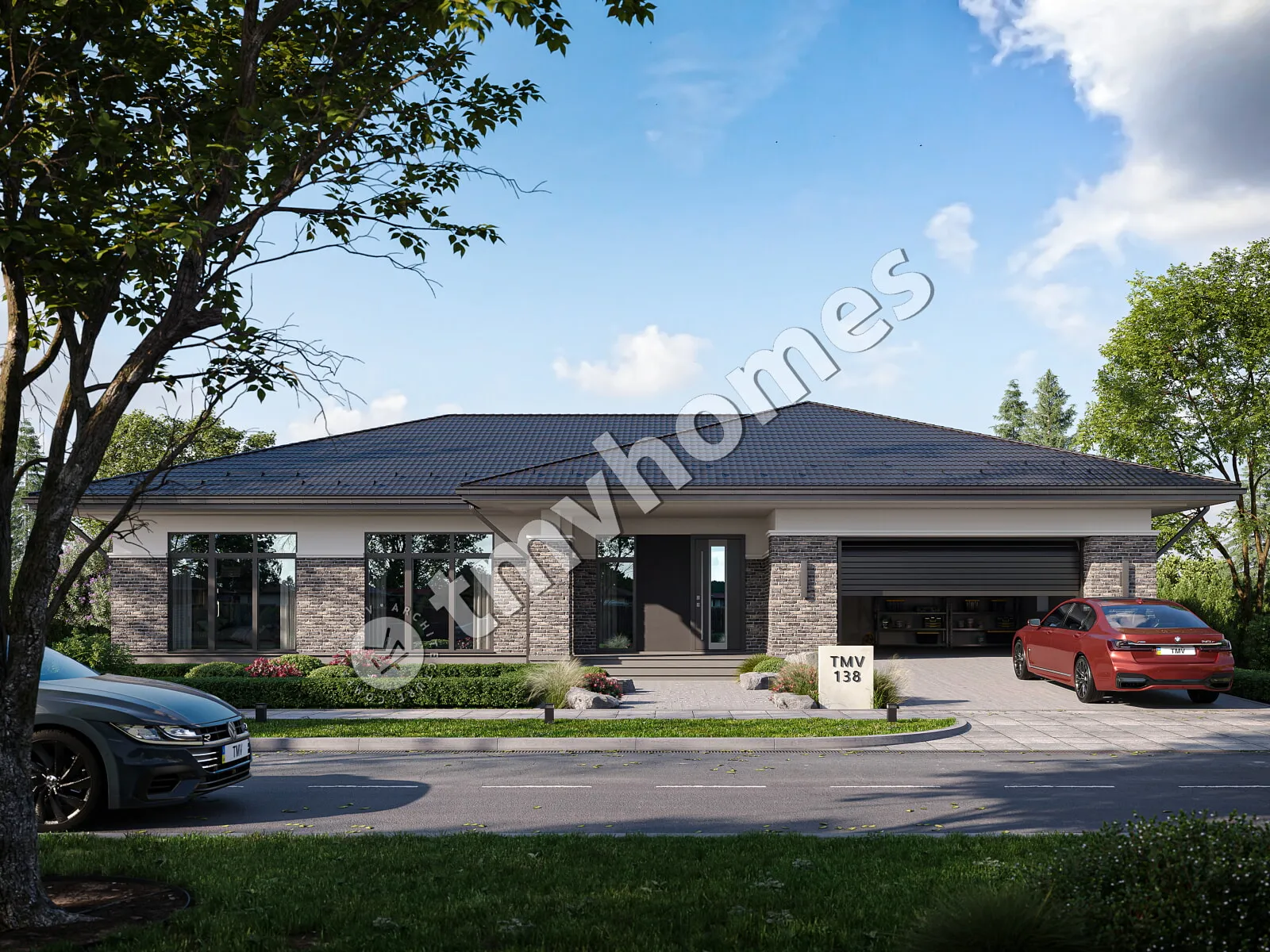

Renderings 2 – 1-Story House Plan 2299 ft², 3 Beds — 31806C
Renderings 3 – 1-Story House Plan 2299 ft², 3 Beds — 31806C Renderings 4 – 1-Story House Plan 2299 ft², 3 Beds — 31806C
5
Concept
Construction documents are prepared for the following countries:

1-Story House Plan 2299 ft²: 3 Beds, 3 Baths, Open Floor Plan, 2-Car Garage

Plan
31806C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2299
Total Heated ft²
3 + 0
Baths + 1/2 Baths
3 + 0
Beds + Home Office
2
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

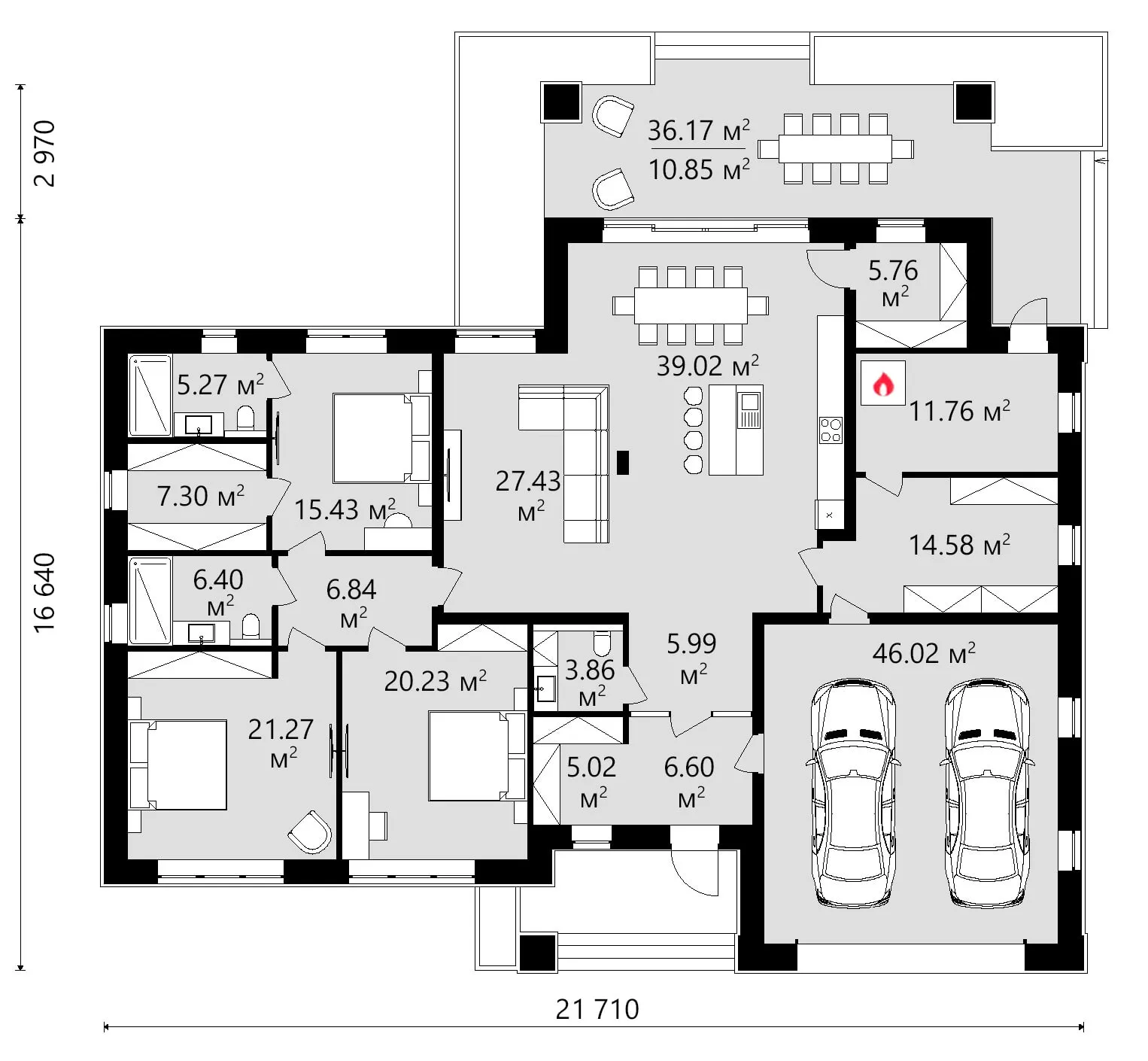

Floor Plans
Main Floor
Main Floor 11 – 1-Story House Plan 2299 ft², 3 Beds — 31806C
Full Specs & Features
Area
Total Unheated: 495.36 ft²
Total Heated: 2299.28 ft²
Dimensions
Depth: 59'8" ft
Width: 66'2" ft
Height: 20'0" ft
Garage
Area: 495 ft²
Cars: 2
Front Entry
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Stone/Brick Veneer
Stucco
Rooms
Full bathrooms: 3
Bedrooms: 3
Utility room
Entry
Storage
Walk In Closet
Kitchen and Dining
Breakfast bar
Breakfast Nook
Island
Interior Features
Main Floor Master
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Covered Rear Porch
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Contemporary
European
Modern
Transitional

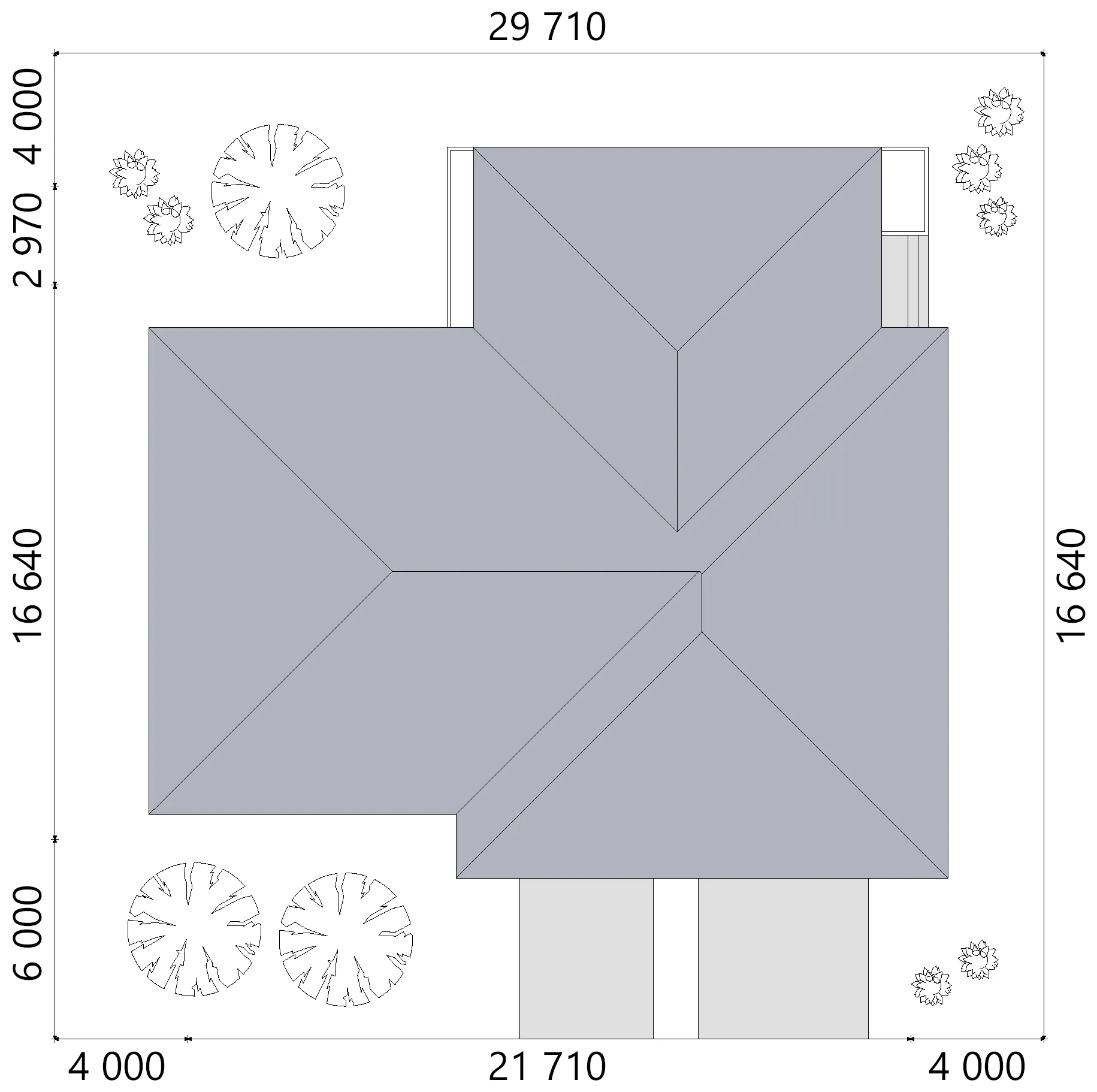

Roof
Roof Area: 5150.85 ft²
Hip & Valley
Roof Pitch: 5/12 (22°)

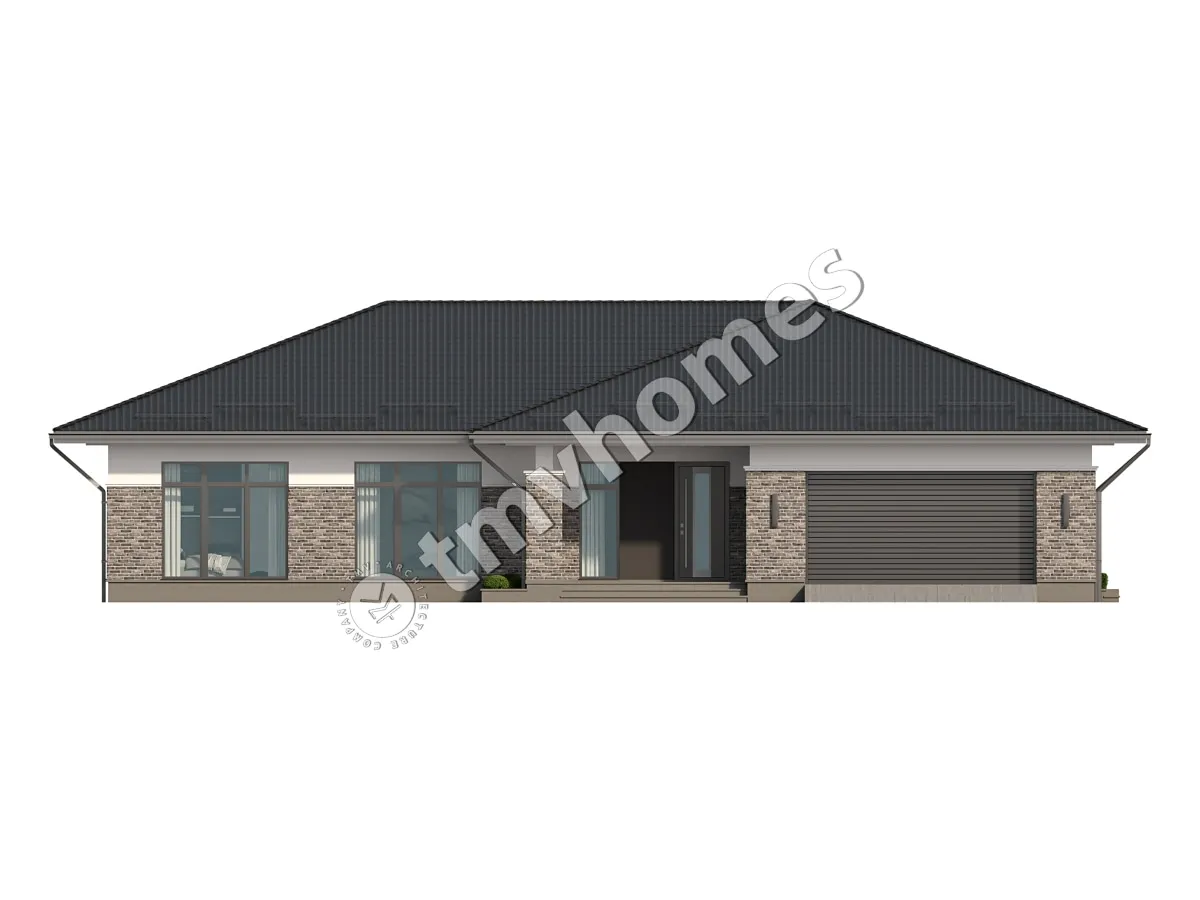

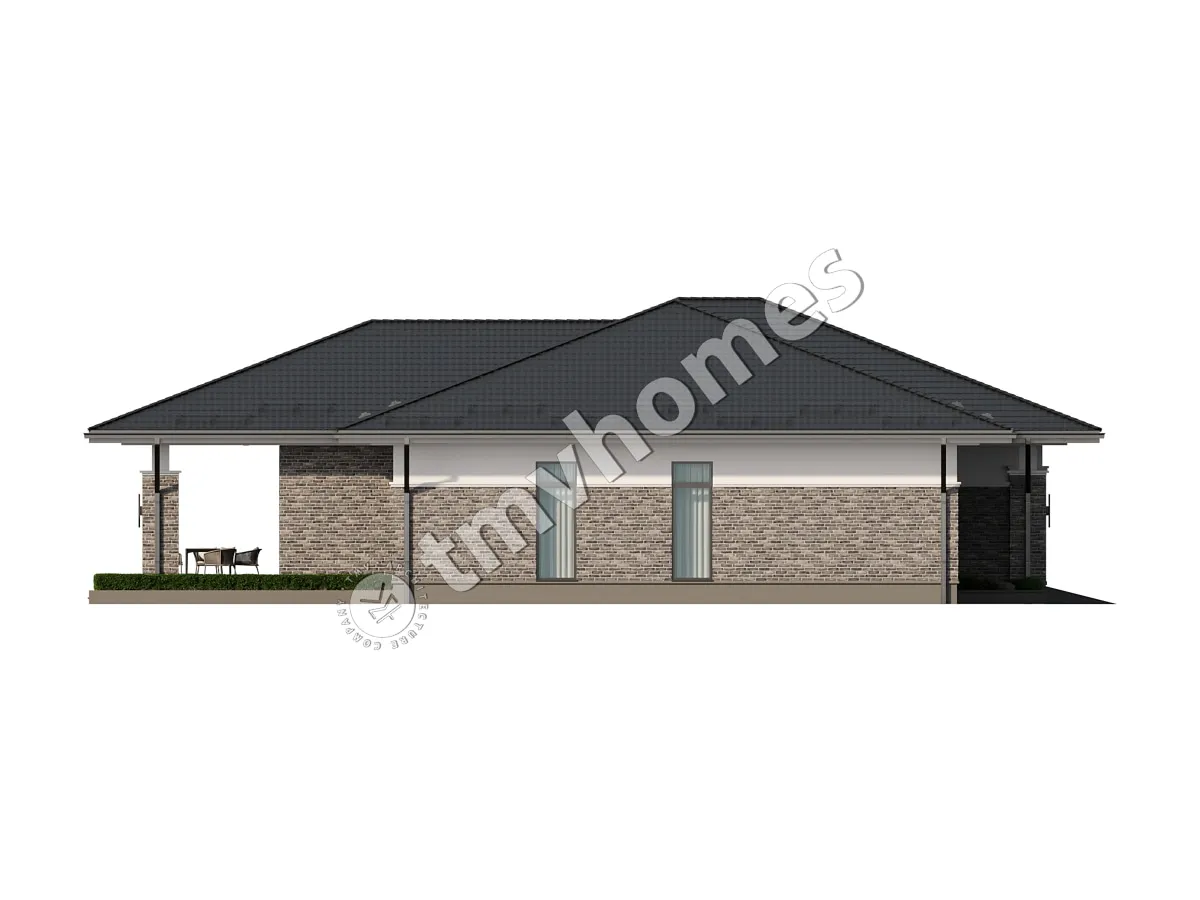

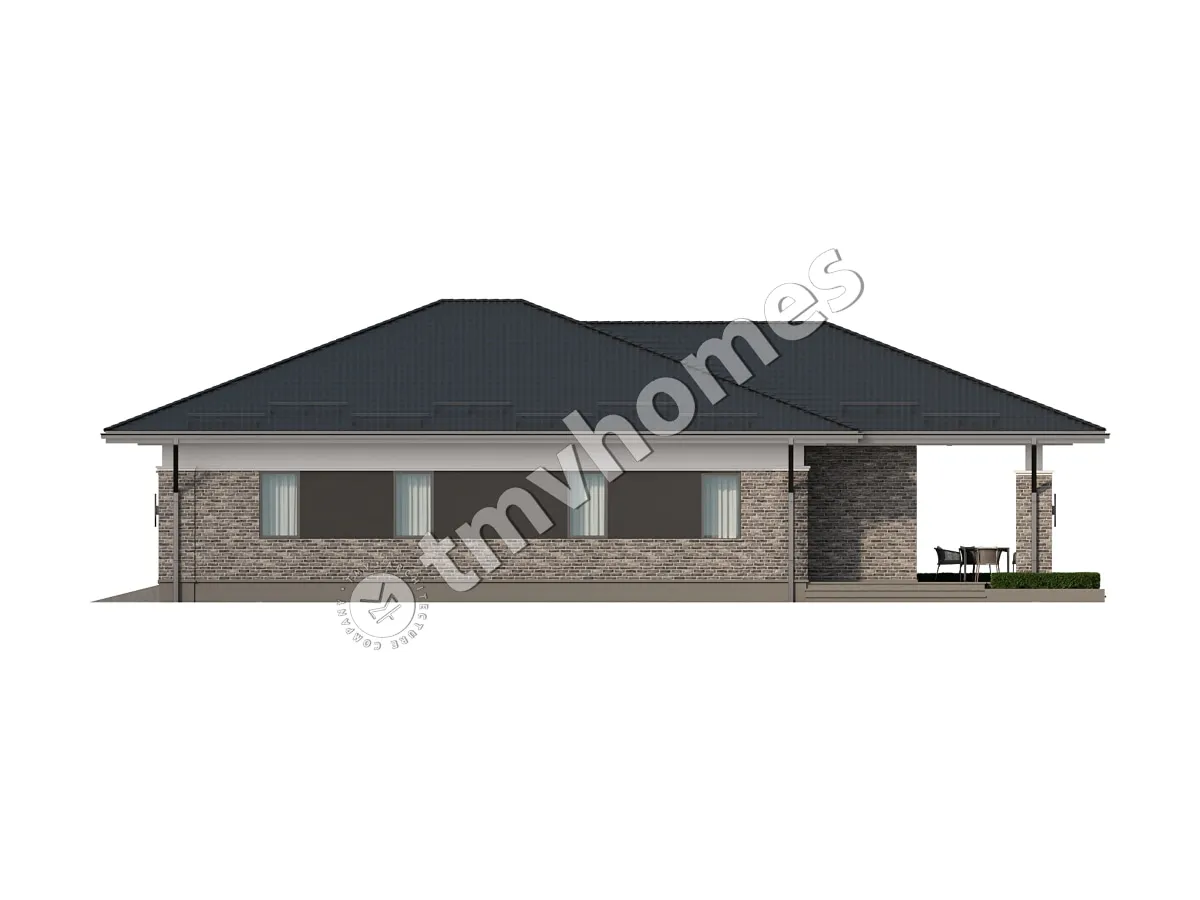

Designed as a 3-bedroom bungalow house plan, 31806C arranges 2299 ft² on a single storey beneath a hip & valley roof pitched at 5/12 (22°). Its modern and transitional lines borrow from European and contemporary architecture, while stucco walls trimmed with stone/brick veneer give the facade texture and a sense of permanence. The footprint is 66'2" wide and 59'8" deep, and the home rises 20'0" high. For families comparing house plans Canada offers for a single family home without stairs, this design brings three bedrooms and three full bathrooms together on one level.

Privacy begins with the layout of the sleeping quarters. Rather than being spread across the plan, the three bedrooms are clustered in one area, keeping the quiet side of the home separate from the rooms where everyone gathers. The main floor master comes with its own walk-in closet. Having three full bathrooms for three bedrooms is a generous ratio that suits teenagers, overnight guests or an older parent living with the family. Everyday logistics have their own place as well: a utility room takes care of household chores, and a separate storage room holds sports gear, holiday decorations and anything else that should stay out of sight.

A defined entry welcomes visitors and opens onto an open floor plan where the large family room and the large kitchen share one generous space. Floor-to-ceiling windows, together with large windows around the home, draw daylight deep into the interior, and on short winter afternoons that brightness is especially welcome. The kitchen centres on an island for preparing meals, adds a breakfast bar where children can sit with homework while dinner simmers, and sets aside a breakfast nook for unhurried weekend mornings. With this open concept home design, whoever is cooking remains part of the conversation in the family room.

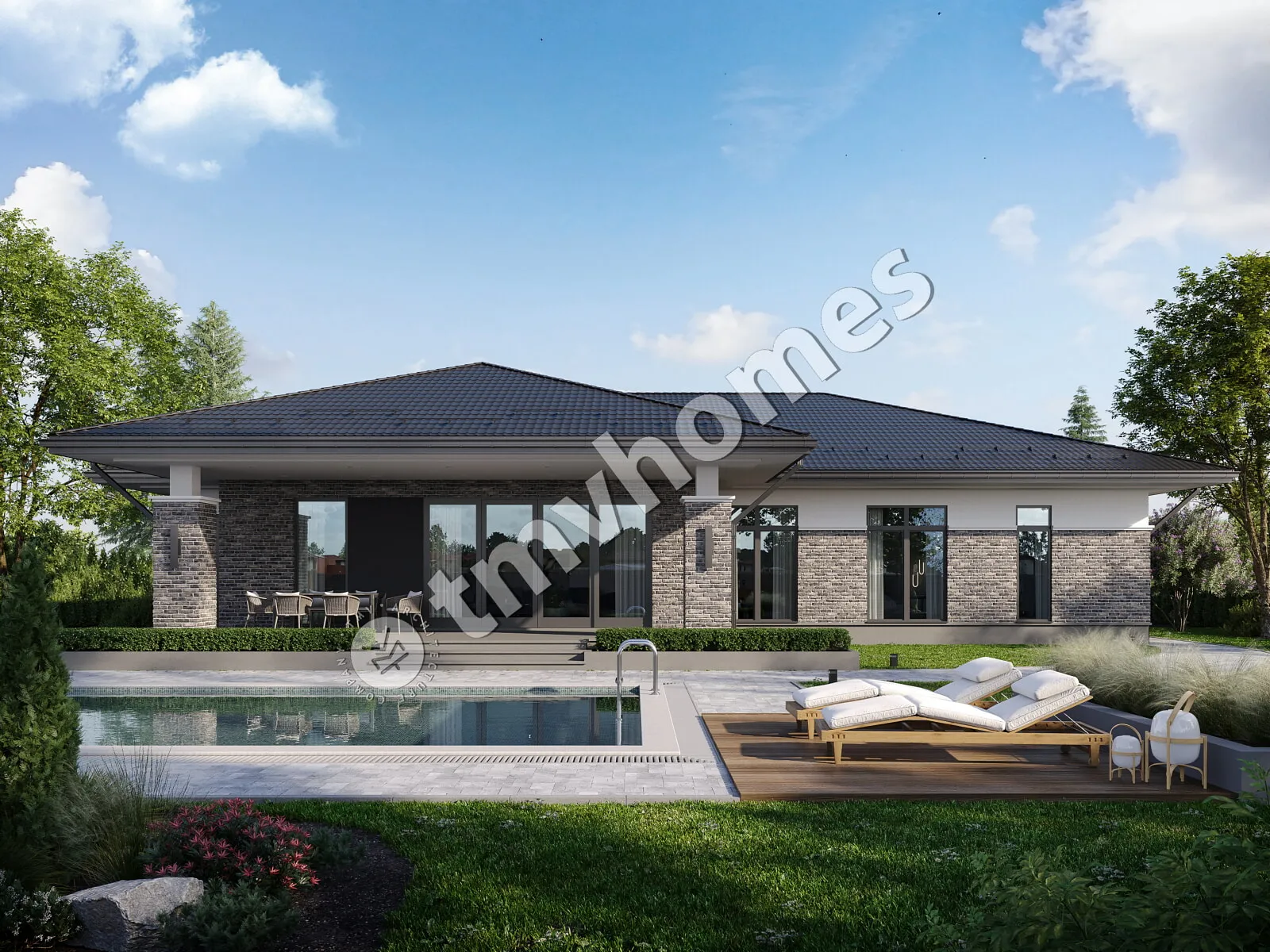

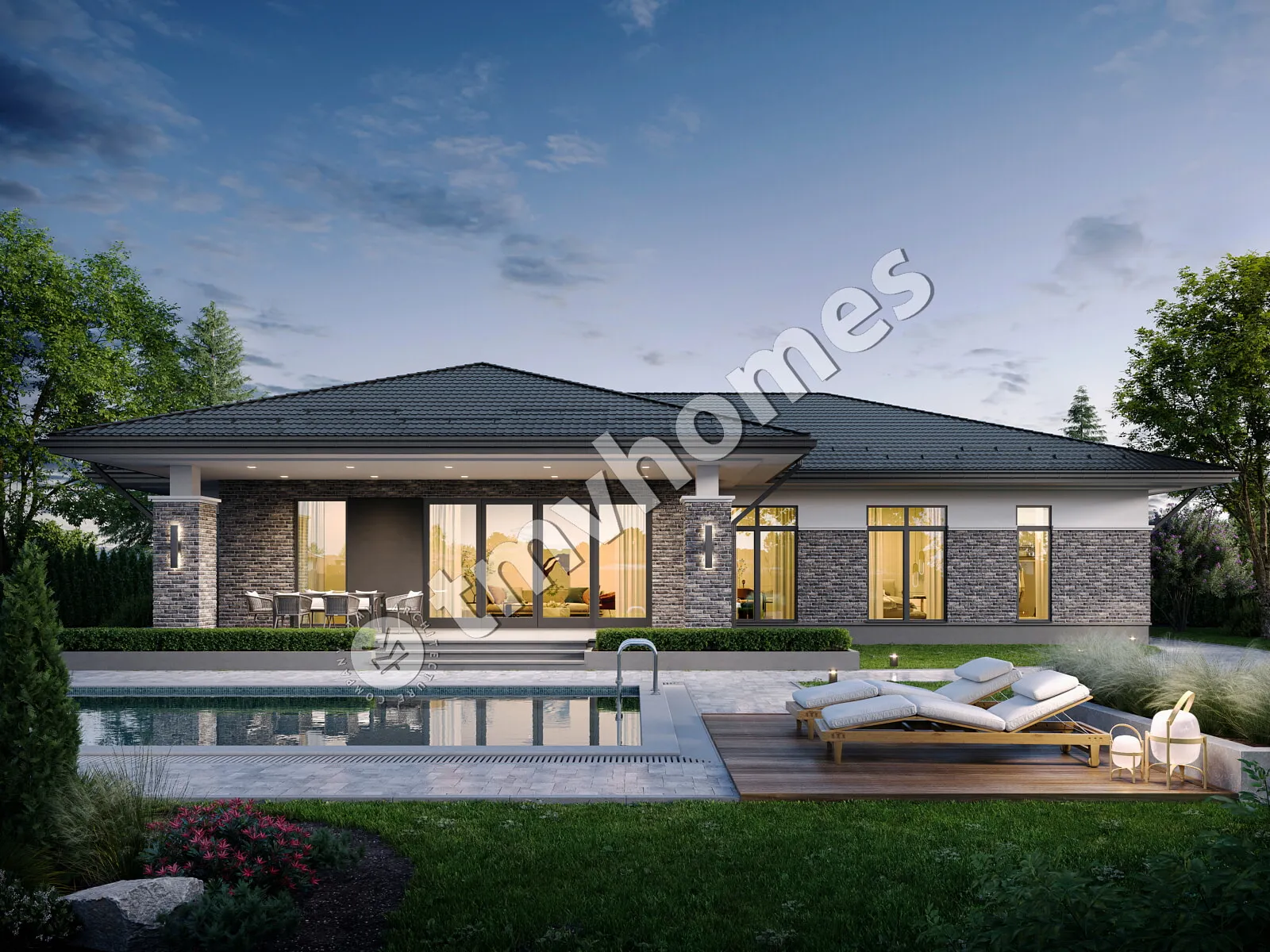

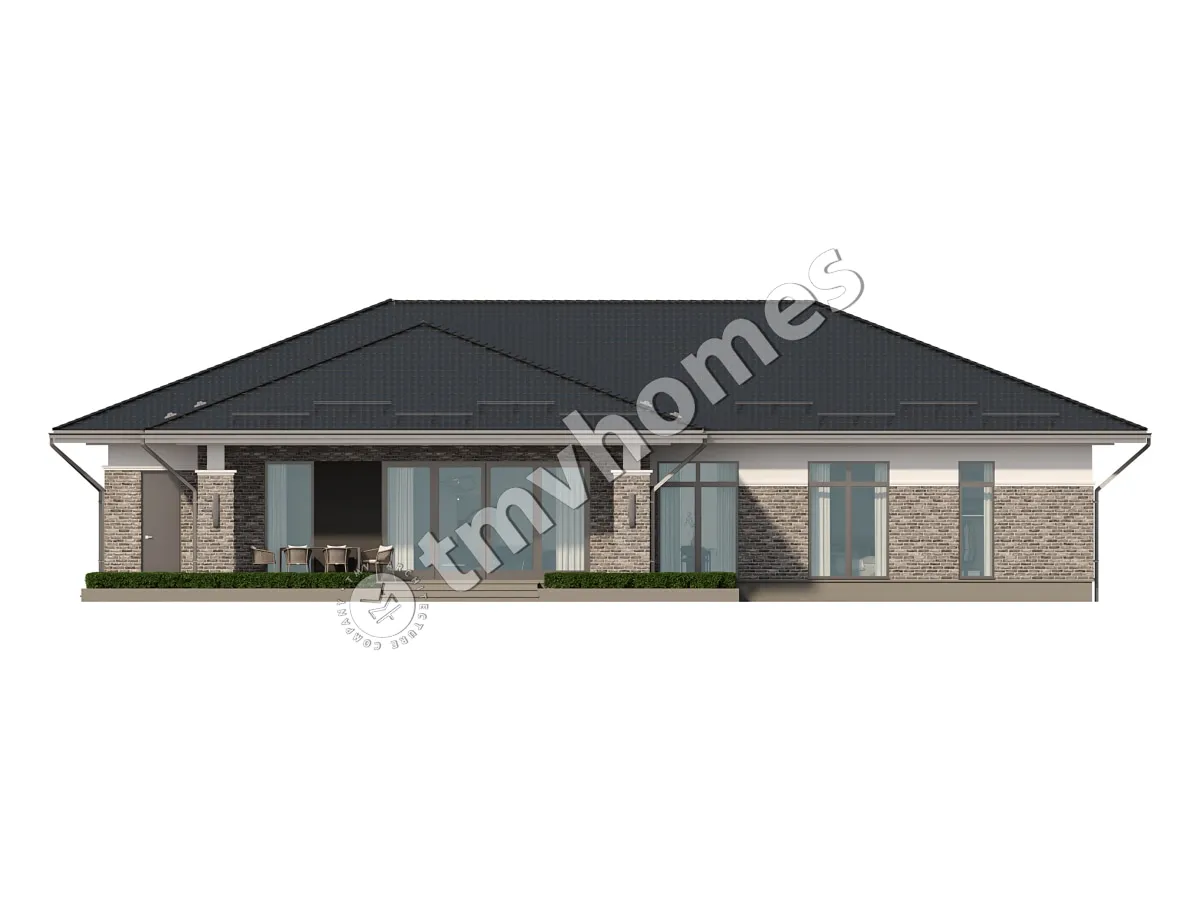

At the back, a covered rear porch offers a sheltered place for outdoor meals and quiet evenings. The front entry 2-car garage makes daily arrivals simple. This 1-storey home has no basement: it sits on strip footings, and a slab or a block foundation is also available. The exterior walls are built of aerated concrete, with ceramic hollow block or sand-lime block available as alternatives on request.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept (Metric)
CA$1606
Subtotal
Payment Protection: Plansplace releases your payment to the seller only after your plan set is delivered, digitally or in print.
