2-Story House Plan 3281 ft²: 3 Beds, Home Office, 3 Baths, Open Floor Plan, without Garage
2-Story House Plan 3281 ft²: 3 Beds, Home Office, 3 Baths, Open Floor Plan, without Garage 2-Story House Plan 3281 ft²: 3 Beds, Home Office, 3 Baths, Open Floor Plan, without Garage
6
Construction documents are prepared for the following countries:

2-Story House Plan 3281 ft²: 3 Beds, Home Office, 3 Baths, Open Floor Plan, without Garage

Plan
11403R
Complete
Unsigned & Unsealed
DC Available
Key Specs
3281
Total Heated ft²
3 + 0
Baths + 1/2 Baths
3 + 1
Beds + Home Office
0
Cars
Canada United States
Plans include:

Cover Page

Plans include:

Cover Page

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

Floor Plans
Main Floor

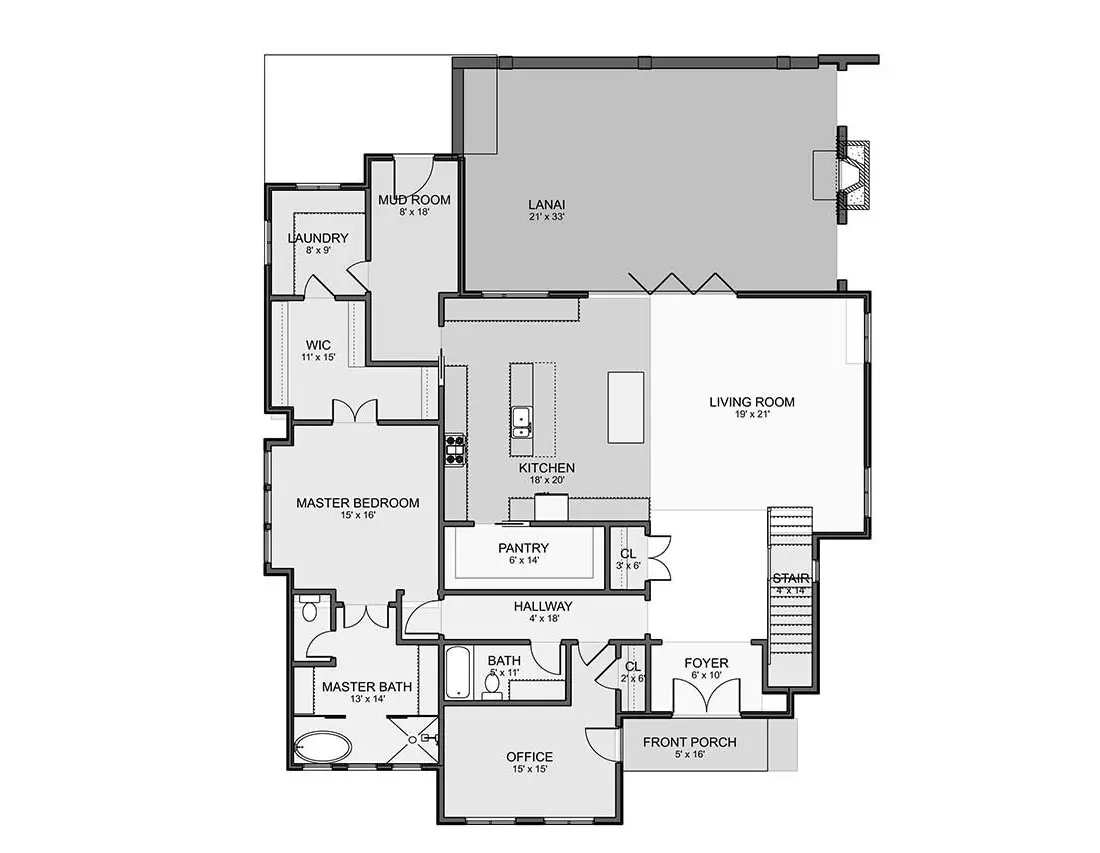

11403R - Main Floor

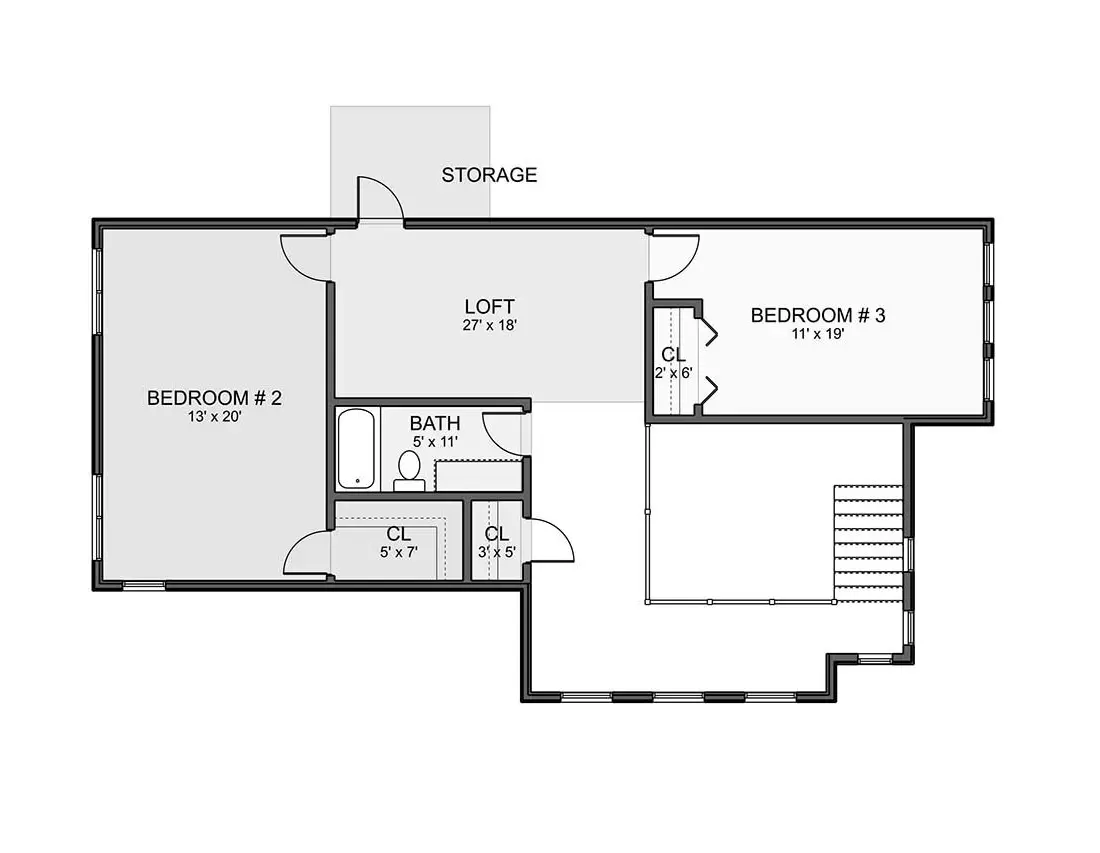

Second Floor
11403R - Second Floor
Full Specs & Features
Area
Main Floor: 2243 ft²
Second Floor: 1038 ft²
Third Floor: 0 ft²
Basement: 0 ft²
Bonus: 486 ft²
Porch: 973 ft²
Total Heated: 3281 ft²
Dimensions
Depth: 67'2" ft
Width: 54'0" ft
Height: 27'9" ft
Exterior Wall Framing
Wood-framed
Exterior Wall Materials
Siding
Stone/Brick Veneer
Rooms
Full bathrooms: 3
Bedrooms: 3
Laundry
Entry
Home Office
Walk In Closet
Foundation
Basement
Crawl Space
Slab
Architectural Style
Contemporary
Farmhouse
New American
Transitional
American
Exterior Features
Outdoor Fireplace
Covered Rear Porch
Interior Features
Laundry On Main Floor
Laundry Access from Master Suite
Main Floor Master
Split Bedrooms
Open to Below
Loft
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Kitchen and Dining
Walk-in Pantry
Breakfast bar
Island
Garage
Area: 0 ft²
Roof
Hip & Valley
Roof Pitch: 6/12 (26°)
Ceiling
Main Floor Ceiling Height: 10'0" ft
Second Floor Ceiling Height: 9'0" ft
Third Floor Ceiling Height: 0'0" ft
Basement Ceiling Height: 0'0" ft
Architect
Advanced Drafting & Design Co. Advanced Drafting & Design Co. Architectural Designer country with code us United States
country with code us United States
North Carolina, Mooresville, NC 28117
+17046108070
https://advanceddrafting.net/
Plan Package

Digital Concept plan_plan_cad_owner_country_desc
C$560
Printed Plan Set
C$2567
Digital Plan Set
C$1518
C$2098
C$4126
C$4568
C$5023
Foundation
C$911
C$911
C$0
Exterior Walls
C$0
C$911
Additional Options
C$1518
C$642
C$97
C$193
Subtotal
