Renderings 2 – 2,408 Sq Ft Modern Single-Story House Plan with 3 Bedrooms and Carport – 11223C

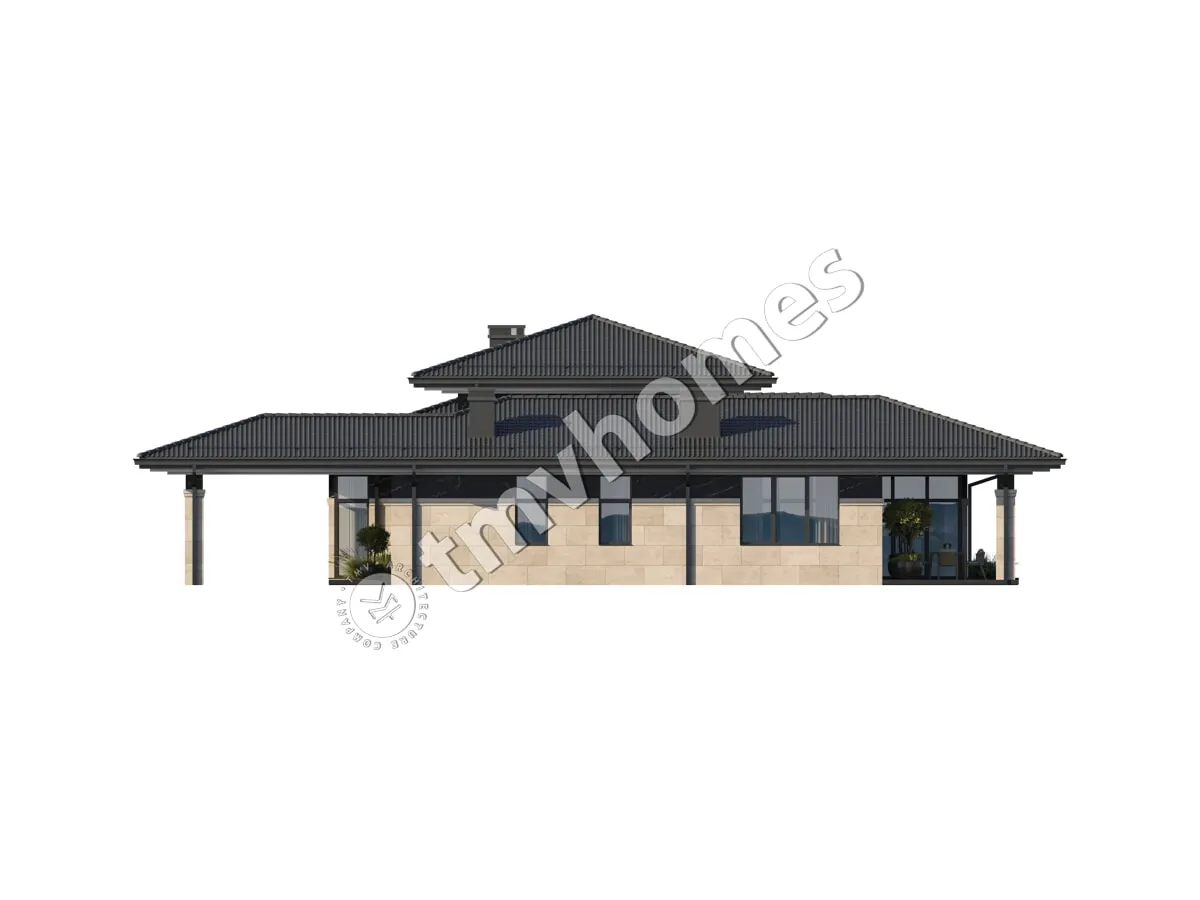

Renderings 3 – 2,408 Sq Ft Modern Single-Story House Plan with 3 Bedrooms and Carport – 11223C Renderings 4 – 2,408 Sq Ft Modern Single-Story House Plan with 3 Bedrooms and Carport – 11223C
6
Concept
Construction documents are prepared for the following countries:

2,408 Sq Ft Modern H-Shaped Single-Story House Plan with 3 Bedrooms, 3 Bathrooms and Carport

Plan
11223C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2408
Total Heated ft²
3 + 0
Baths + 1/2 Baths
3 + 0
Beds + Home Office
1
Cars (Carport)
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

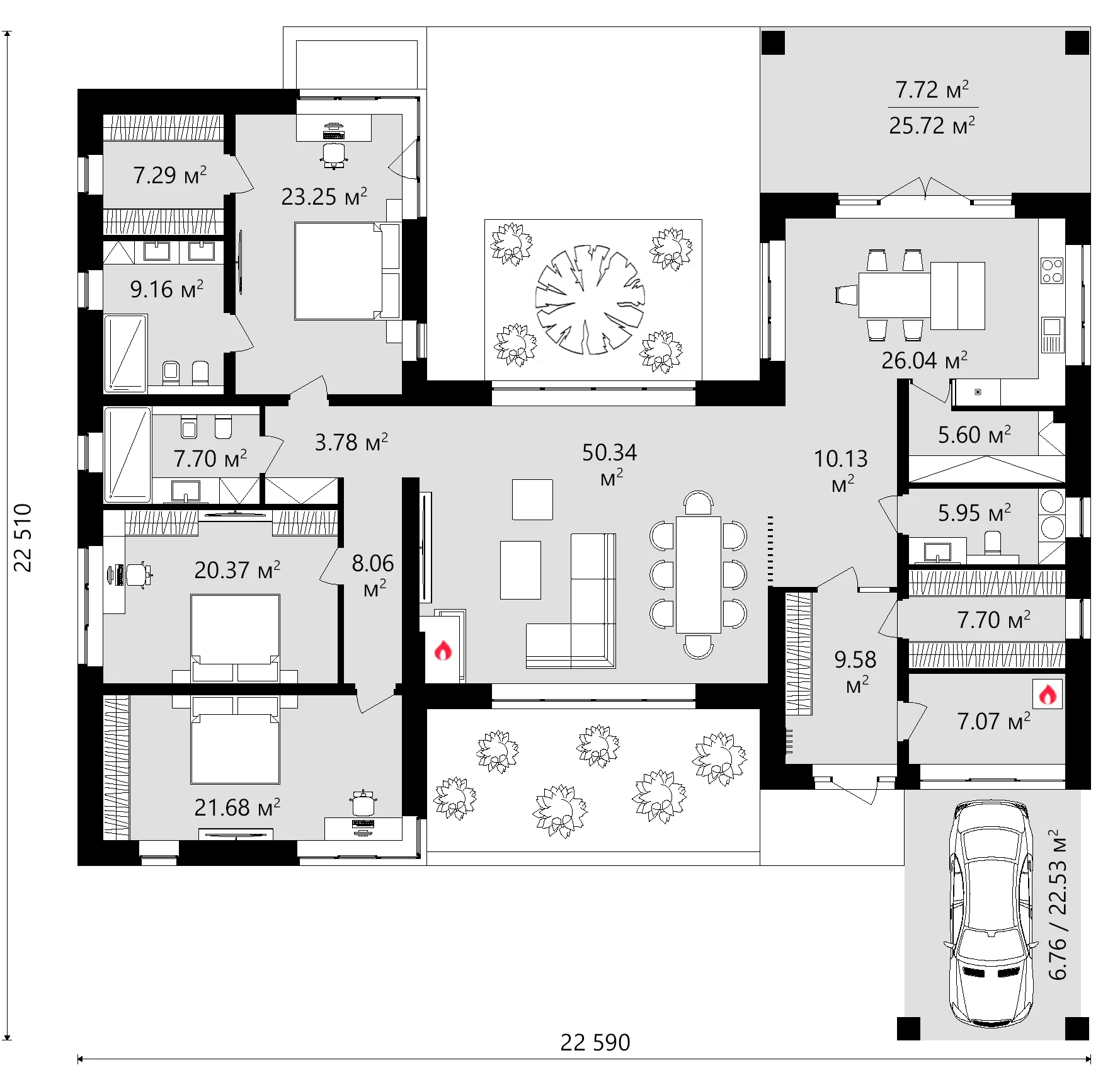

Floor Plans
Main Floor
Main Floor 12 – 2,408 Sq Ft Modern Single-Story House Plan with 3 Bedrooms and Carport – 11223C
Full Specs & Features
Area
Total Heated: 2407.89 ft²
Dimensions
Depth: 68'6" ft
Width: 68'9" ft
Height: 22'3" ft
Garage
Cars: 1
Carport
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Tiles
Rooms
Full bathrooms: 3
Bedrooms: 3
Utility room
Entry
Walk In Closet
Kitchen and Dining
Walk-in Pantry
Breakfast Nook
Island
Interior Features
Fireplace in Family Room
Main Floor Master
Clustered Bedrooms
Closed Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Courtyard
Covered Rear Porch
Corner Window
Large Windows
Floor-to-Ceiling Windows
Architectural Style
California Style
Contemporary
Florida Style
Luxury
Modern
Prairie

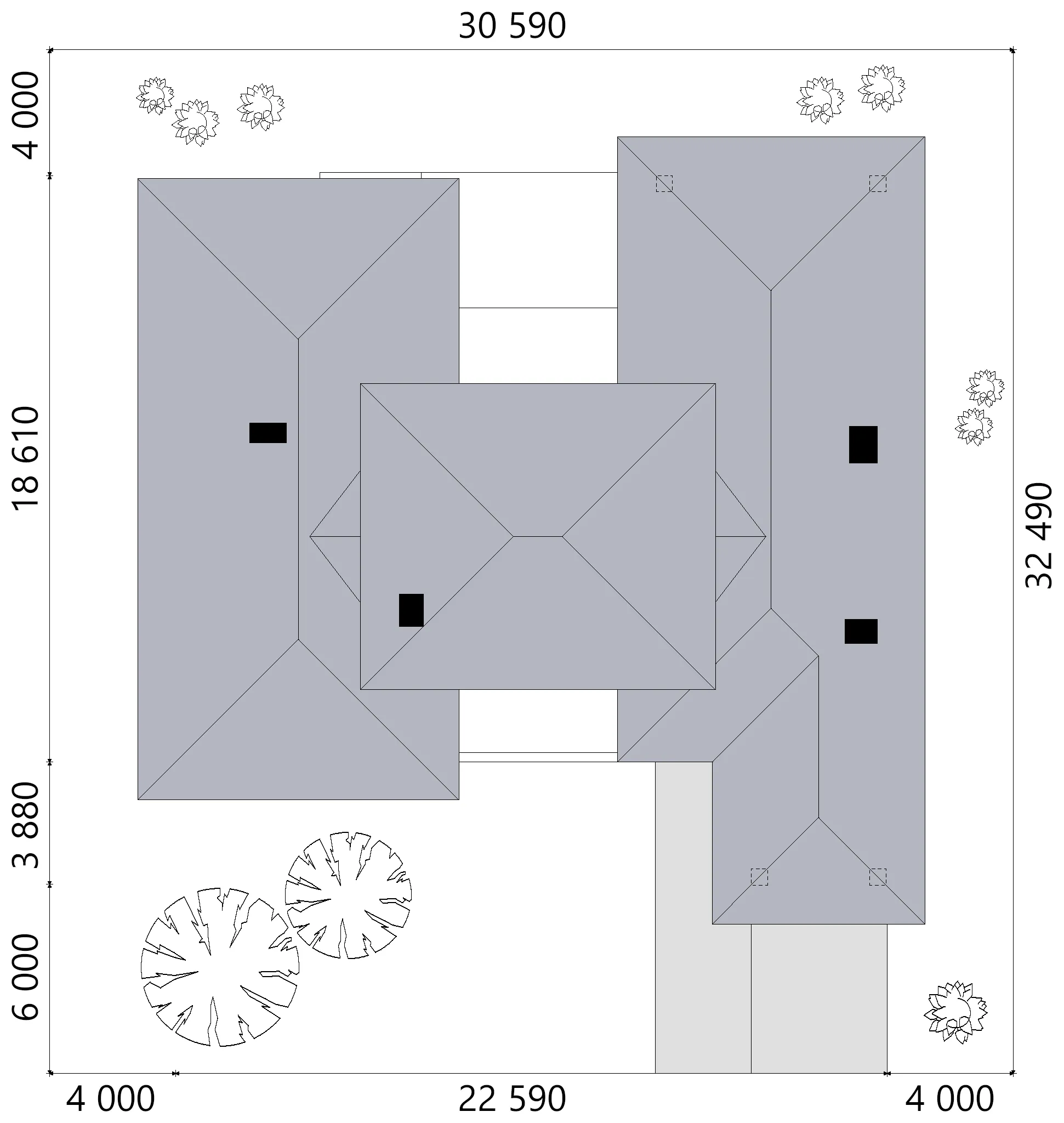

Roof
Roof Area: 5779.47 ft²
Hip
Hip & Valley
Roof Pitch: 4/12 (18°)

Spread across one level beneath a hip and valley roof, plan 11223C is a 3-bedroom bungalow house plan with 2,408 Sq Ft of space, shaped as a modern Prairie home with Contemporary, California Style and Florida Style influences. The gentle 4/12 (18°) roof pitch and tile-clad exterior walls give this luxury single family design a long, low profile, and its U-shaped, H-shaped form wraps around a central courtyard. Overall, the home measures 68'9" wide and 68'6" deep, with a height of 22'3".

The sleeping quarters are grouped together, away from the daily bustle. All three bedrooms are clustered in one wing, which keeps nights quiet and makes the layout easy to read. The main floor master offers a walk-in closet, so clothing and seasonal items have a proper place. Three full bathrooms serve the household, a generous count for a three-bedroom home that spares everyone a morning queue. A separate utility room takes on the practical side of family life and keeps it out of sight.

A defined entry welcomes visitors and leads into the living areas. This 1-storey home design follows a closed floor plan, so the kitchen, the family room and the dining corner each keep their own character. The large family room is the centre of the house, anchored by a fireplace that sets the mood on a snowy evening. Floor-to-ceiling windows, large windows and a corner window open the rooms to daylight and to views of the courtyard. In the large kitchen, an island provides a broad surface for cooking and conversation, a walk-in pantry holds groceries and small appliances, and a breakfast nook suits a coffee before the day begins.

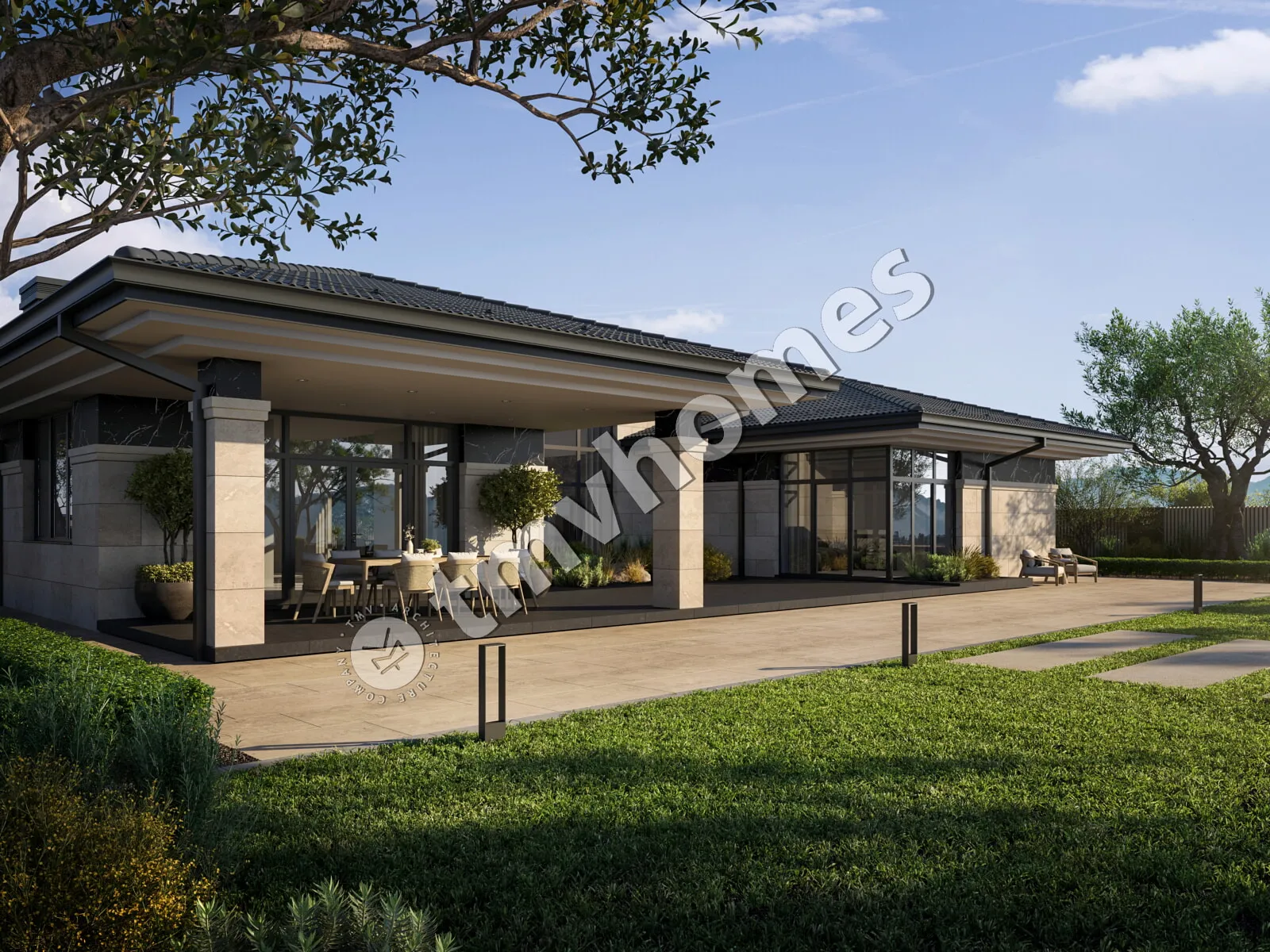

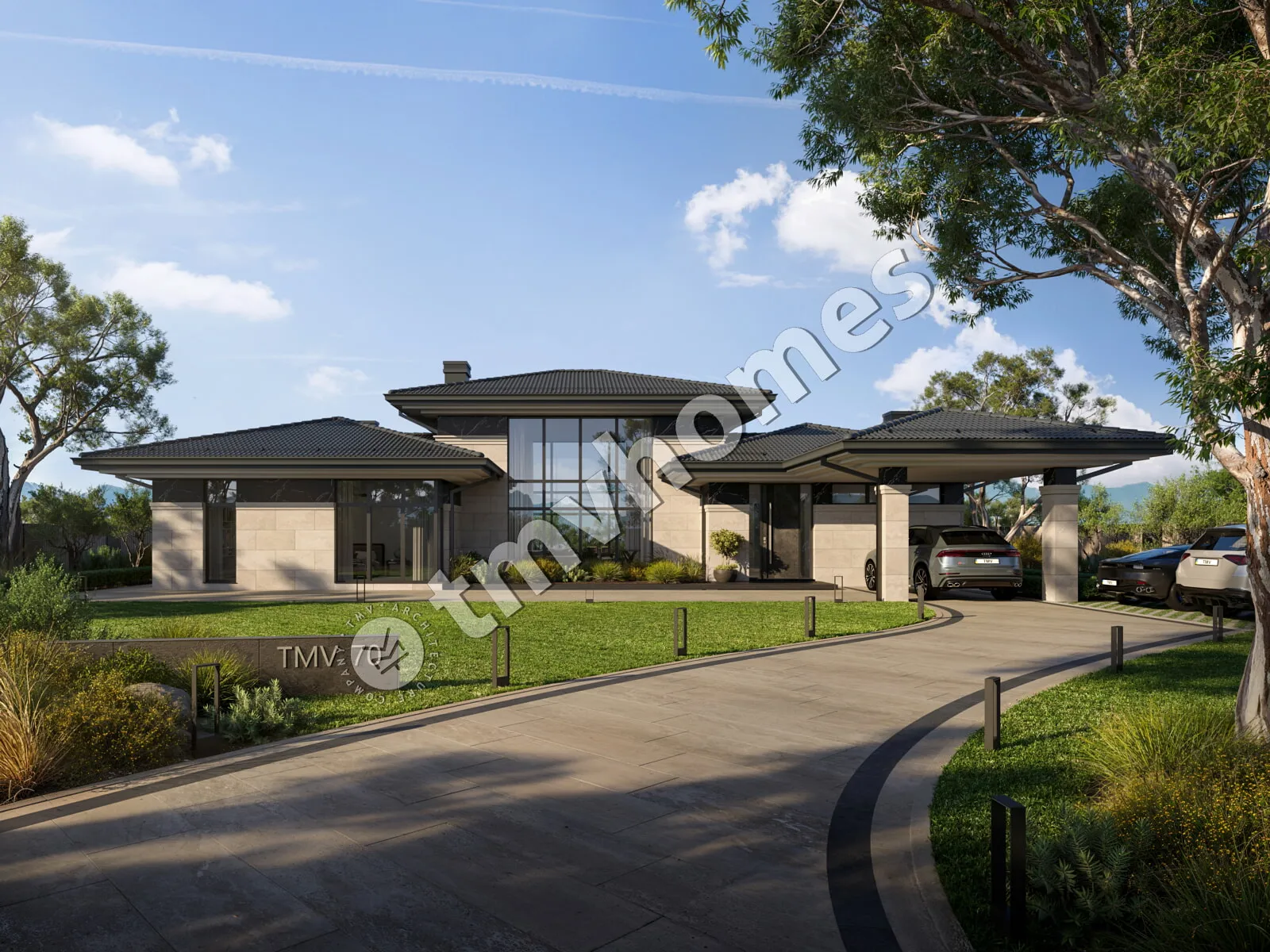

Outside, a single-car carport shelters the vehicle while keeping the façade light and open. The covered rear porch is a favourite spot for long summer meals, and together with the courtyard it extends the living space outdoors. The house rests on strip footings with no basement, and a slab or a concrete block foundation is also available. The walls are built of aerated concrete, with clay block or calcium silicate block offered as alternatives. Among house plans Canada families browse for single-level living, this design pairs a refined modern look with a calm, well-zoned interior.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept (Metric)
CA$2850
Subtotal
Payment Protection: Plansplace releases your payment to the seller only after your plan set is delivered, digitally or in print.
Local Architects
Offers from your local architects who are ready to develop construction documents based on the digital concept.
