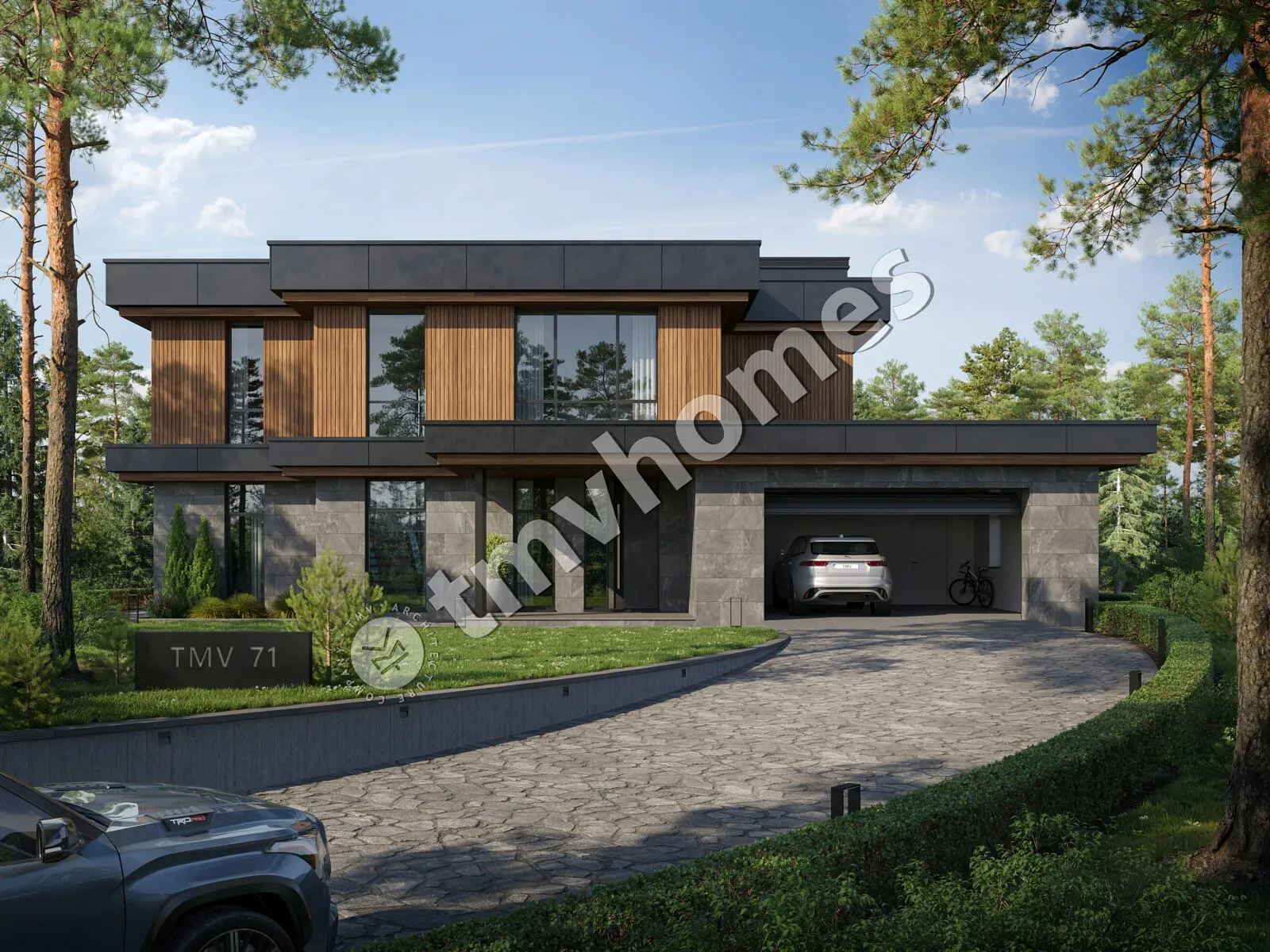

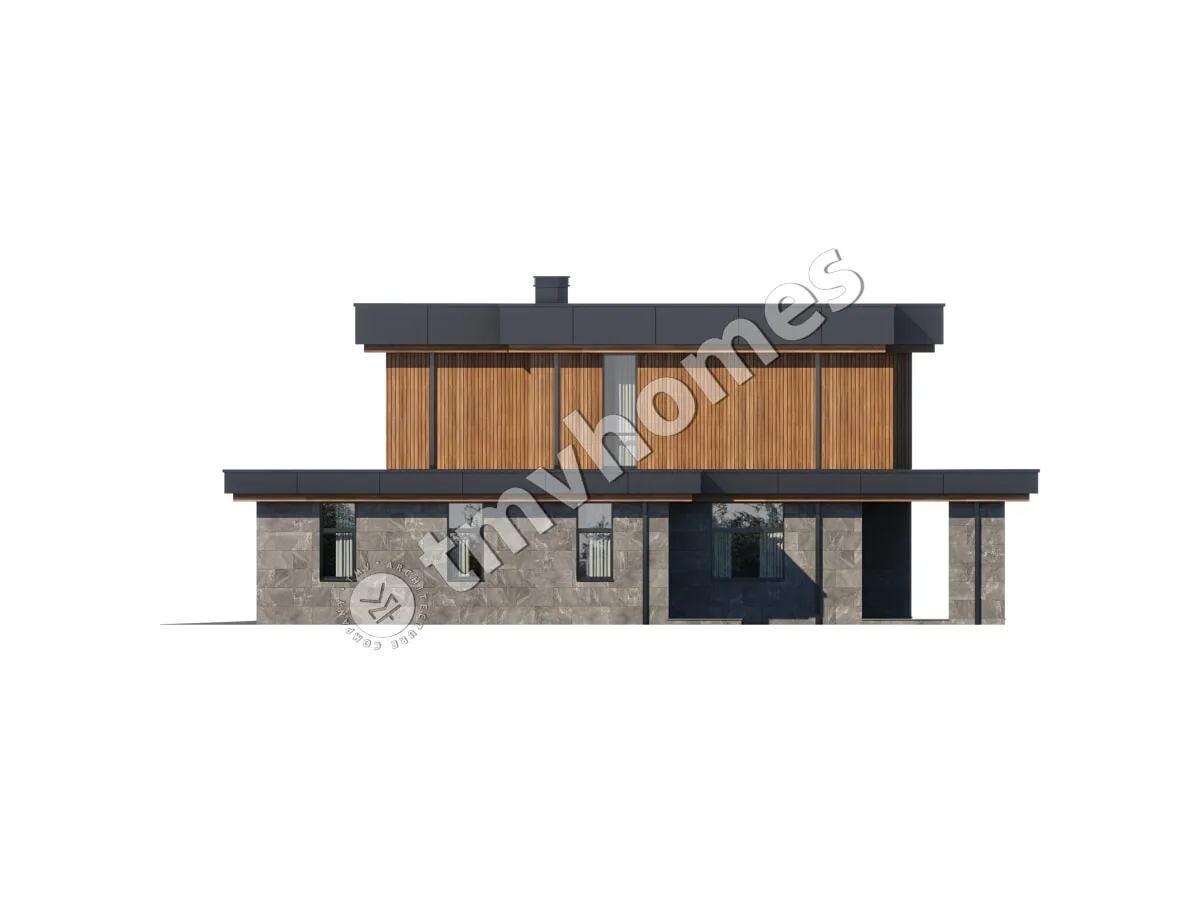

Renderings 2 – 2,628 Sq Ft Modern 2-Story House Plan with 4 Bedrooms and 2-Car Garage – 97687C

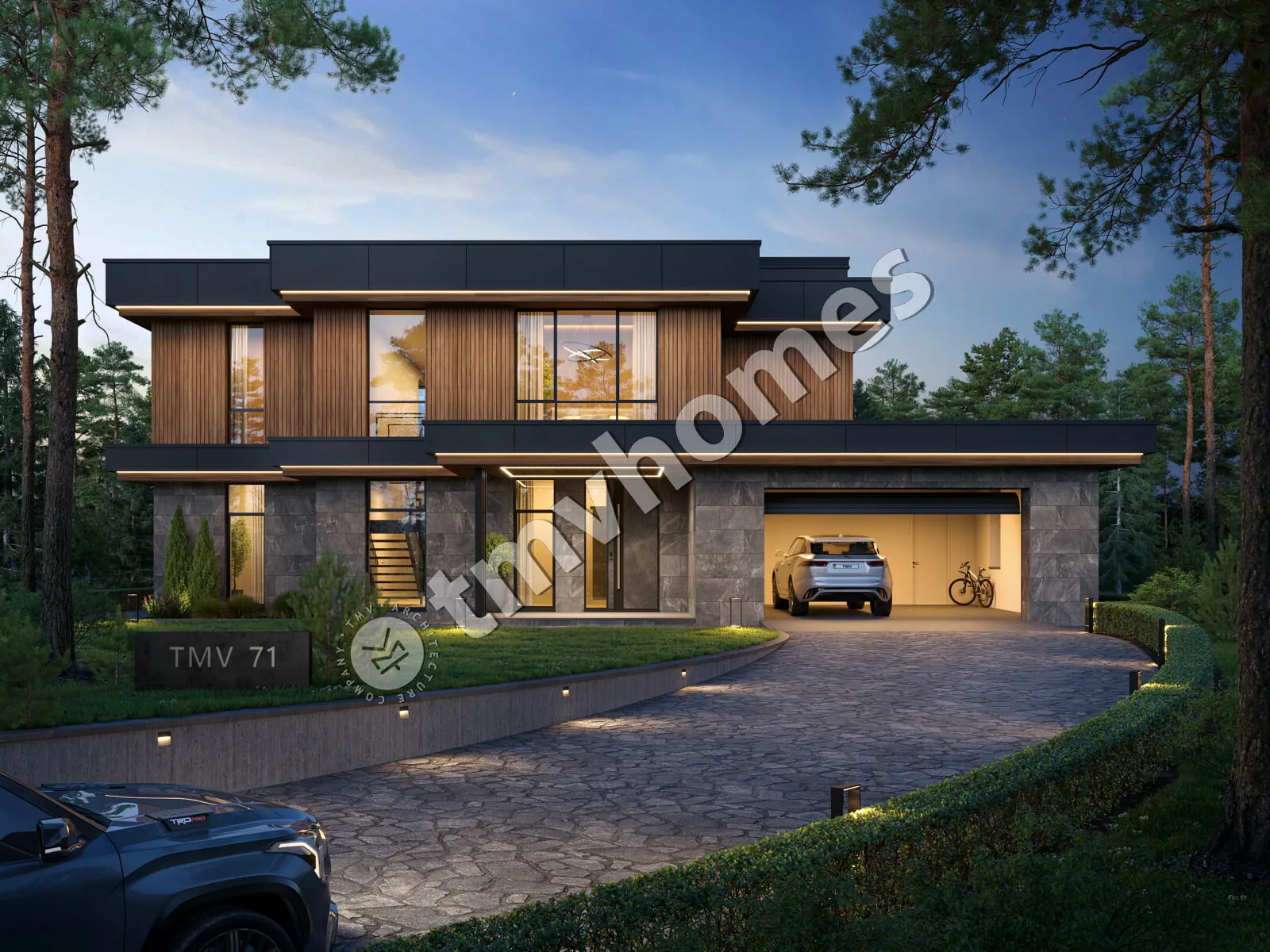

Renderings 3 – 2,628 Sq Ft Modern 2-Story House Plan with 4 Bedrooms and 2-Car Garage – 97687C Renderings 4 – 2,628 Sq Ft Modern 2-Story House Plan with 4 Bedrooms and 2-Car Garage – 97687C
7
Concept
Construction documents are prepared for the following countries:

2,628 Sq Ft Modern 2-Story House Plan with 4 Bedrooms, 4 Bathrooms and 2-Car Garage

Plan
97687C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2628
Total Heated ft²
4 + 0
Baths + 1/2 Baths
4 + 0
Beds + Home Office
2
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

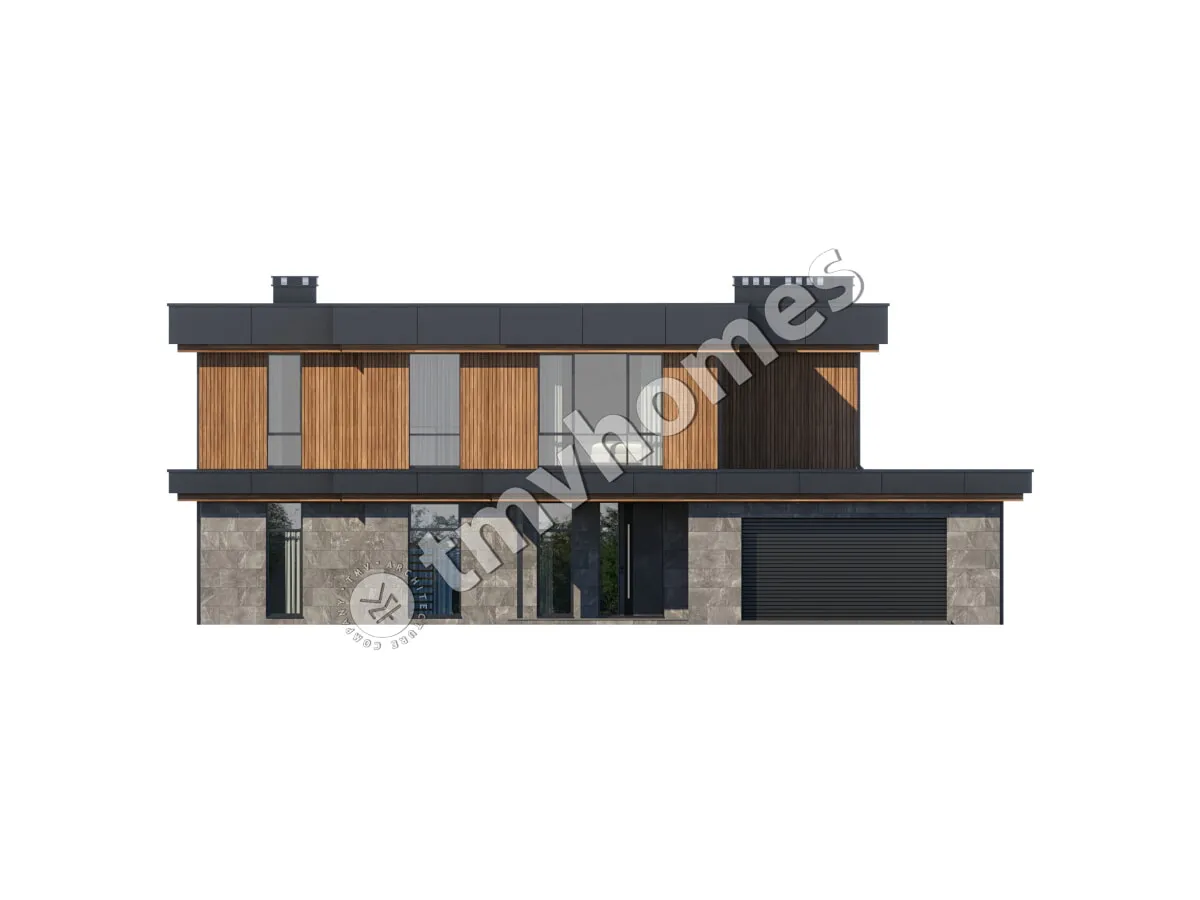

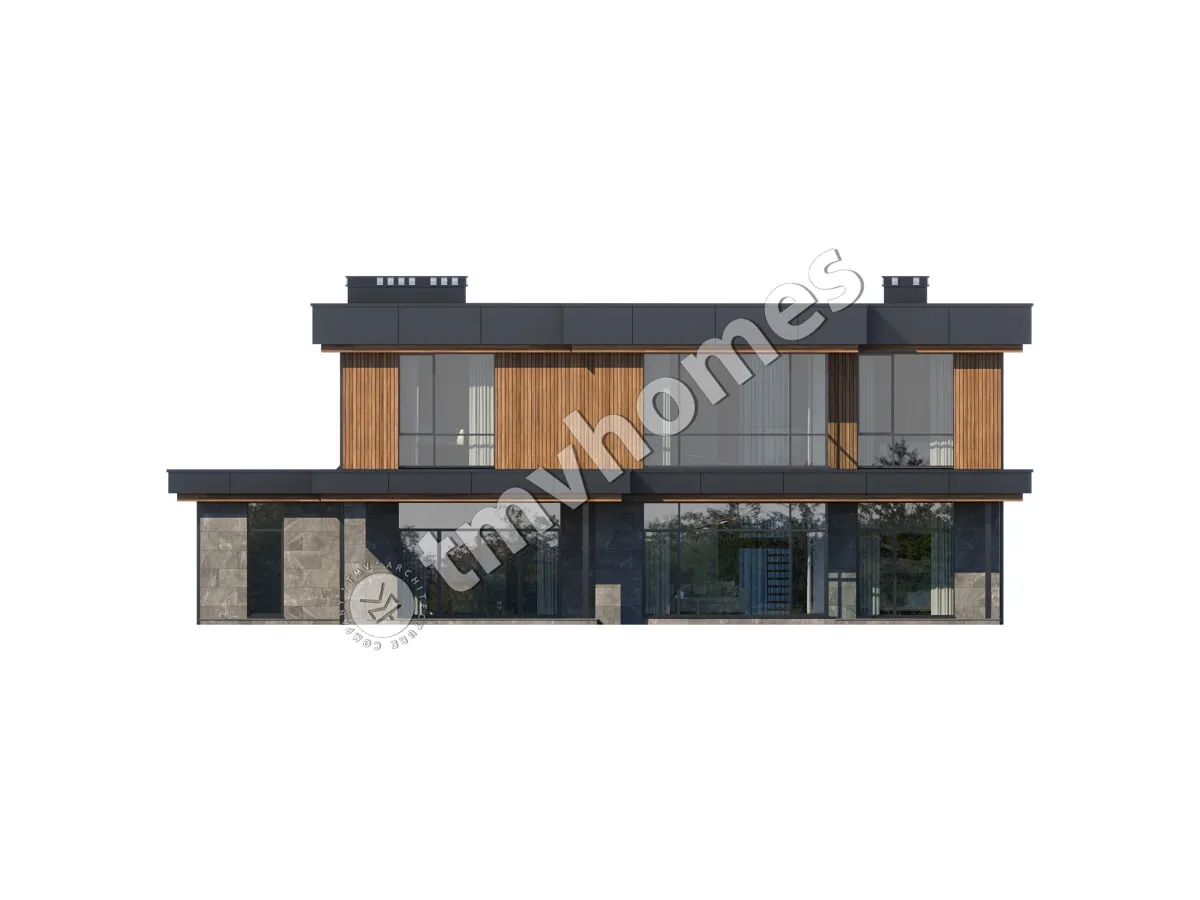

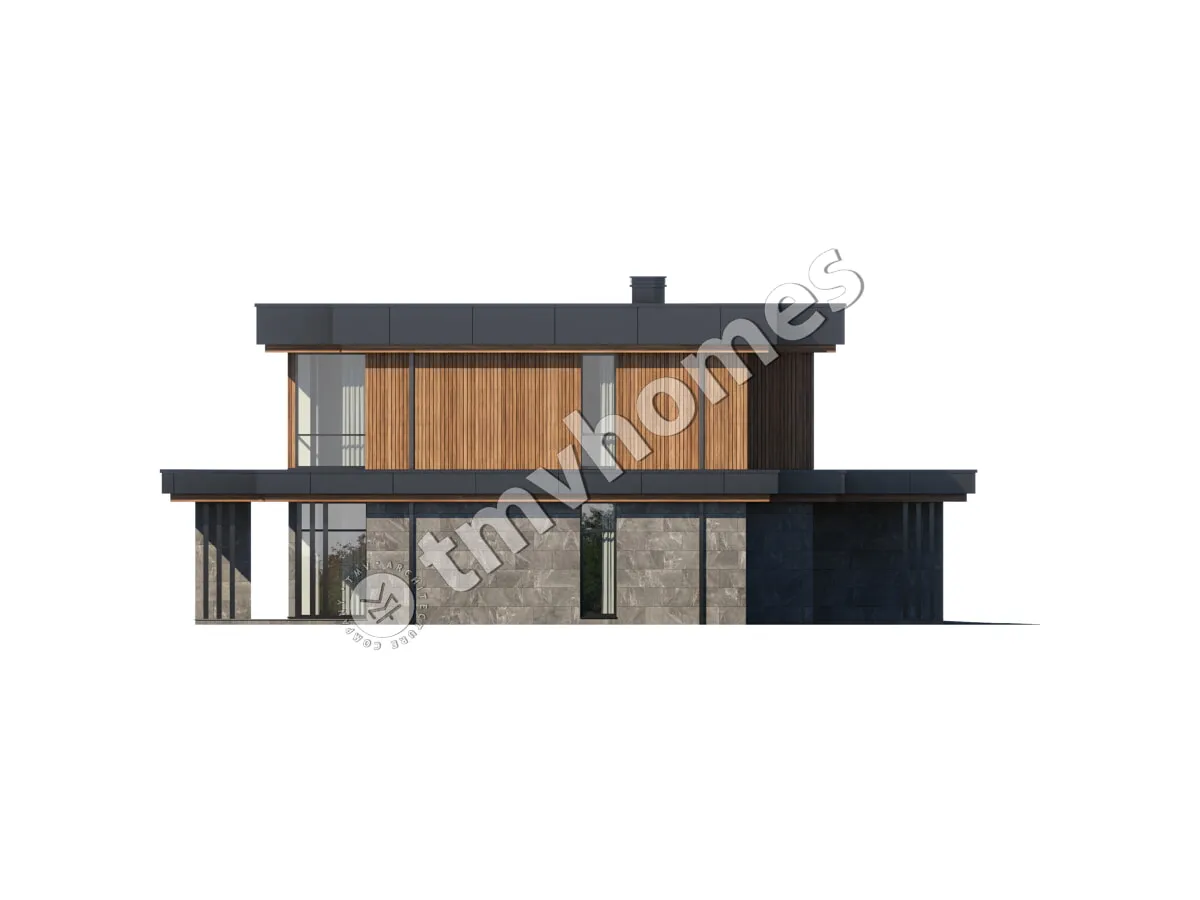

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

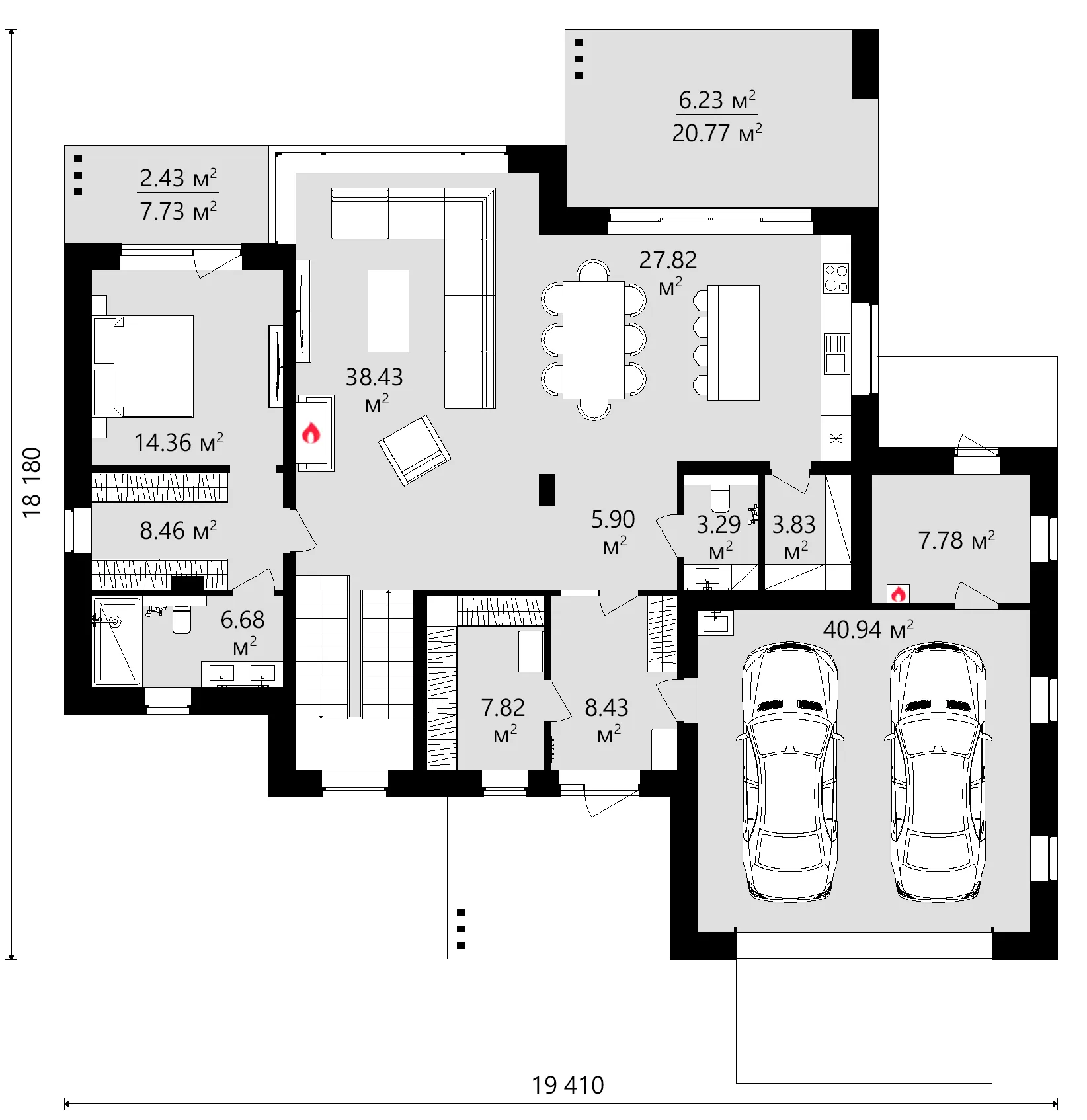

Main Floor
Main Floor 12 – 2,628 Sq Ft Modern 2-Story House Plan with 4 Bedrooms and 2-Car Garage – 97687C

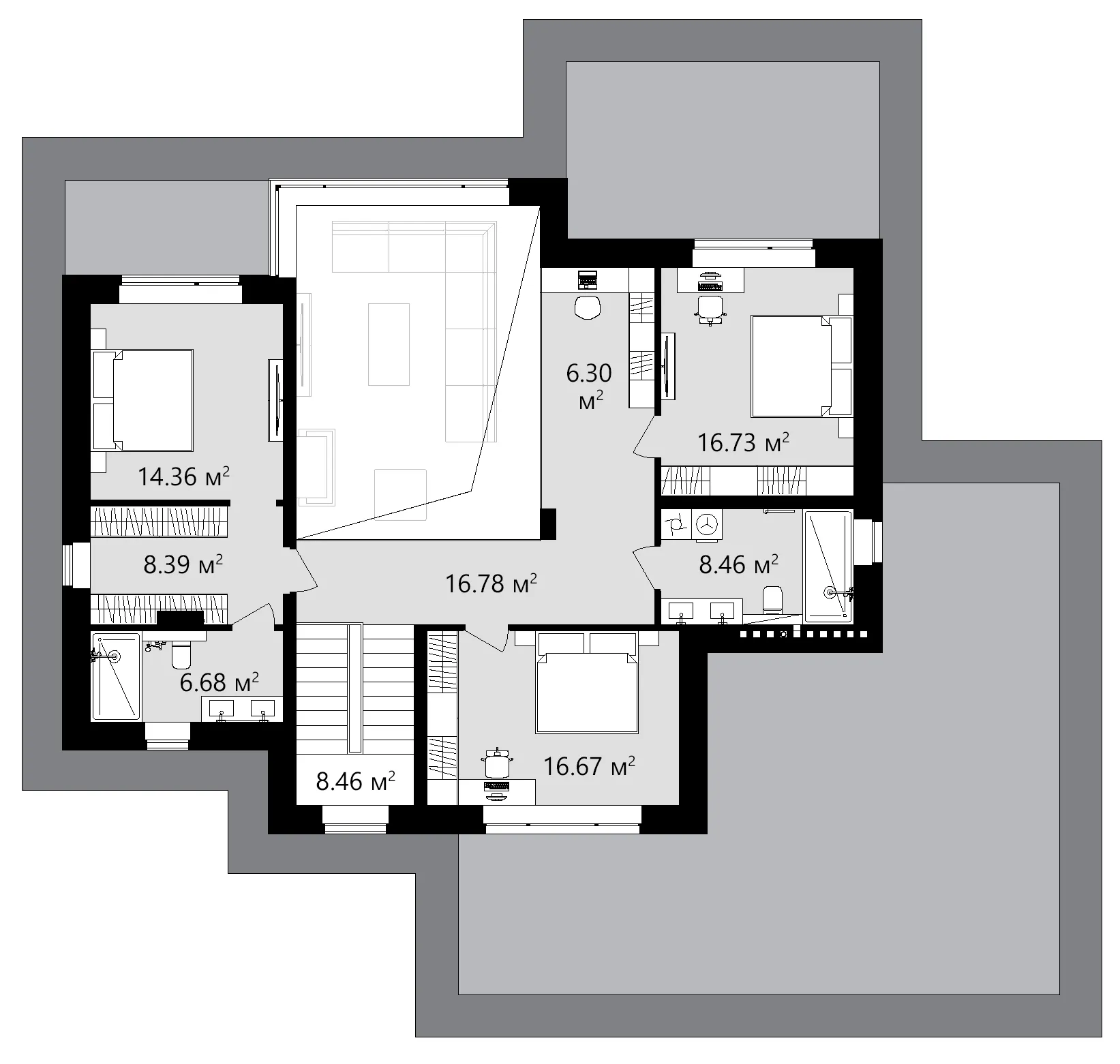

Second Floor
Second Floor 13 – 2,628 Sq Ft Modern 2-Story House Plan with 4 Bedrooms and 2-Car Garage – 97687C
Full Specs & Features
Area
Total Unheated: 440.67 ft²
Total Heated: 2628.01 ft²
Dimensions
Depth: 55'4" ft
Width: 59'2" ft
Height: 23'8" ft
Garage
Area: 441 ft²
Cars: 2
Attached
Front Entry
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Wood
Tiles
Panels
Rooms
Full bathrooms: 4
Bedrooms: 4
Utility room
Entry
Walk In Closet
Kitchen and Dining
Walk-in Pantry
Breakfast bar
Breakfast Nook
Island
Interior Features
Laundry Second Floor
Fireplace in Family Room
Main Floor Master
Second Floor Master
2 Master Suites
Split Bedrooms
Open to Below
Loft
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Covered Rear Porch
Corner Window
Panoramic Windows
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Contemporary
Modern
Roof
Roof Area: 3221.32 ft²
Flat

Designed over three levels, plan 97687C is a 4-bedroom 3-storey house plan with 2,628 Sq Ft of living space beneath a flat roof and a sharp contemporary profile. Modern and high-tech in spirit, this single-family home design pairs wood, tiles and panels on its facades, and it measures 59'2" wide and 55'4" deep, with a height of 23'8". Four full bathrooms serve the four bedrooms, so the layout suits a busy household or one that often hosts guests.

Families browsing house plans Canada for flexible living will notice the two master suites, each on its own floor. One suite sits on the main floor, away from the stairs, and the other is on the second floor, while the split bedrooms layout keeps the private rooms well apart. A walk-in closet adds generous storage, and with four full baths every bedroom has a bathroom close by. Laundry is on the second floor, which spares the trips up and down with baskets, and a dedicated utility room keeps the mechanical systems in their own space.

Past the entry, an open concept layout joins the large kitchen, the breakfast nook and the large family room. A fireplace in the family room gives the main living area its focal point, and because the room is open to below, the ceiling rises well above the usual single storey. A loft provides a quiet corner for homework, reading or a compact office. In the kitchen, an island offers workspace at the centre of the room, a breakfast bar seats the family for a quick bite, and a walk-in pantry holds groceries and small appliances. Floor-to-ceiling, panoramic and large windows, together with a corner window, carry daylight deep into the interior from morning to evening.

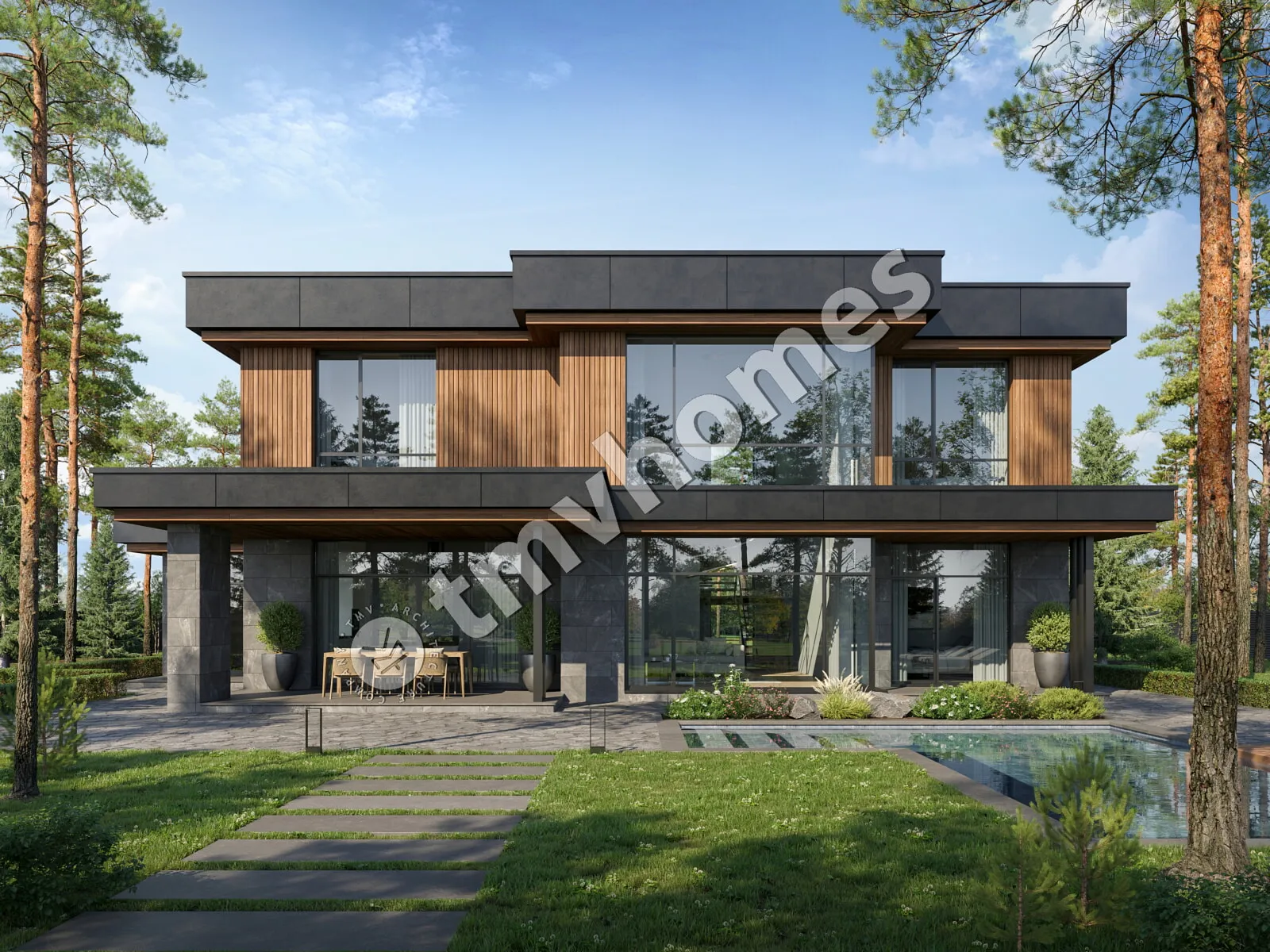

At the back, a covered rear porch extends living outdoors and offers shelter for a meal or a slow coffee. The attached 2-car garage has a front entry, convenient for the daily comings and goings. This flat roof home has no basement; it rests on strip footings, with a slab or a concrete block foundation also available. The walls are built of aerated concrete blocks, and ceramic hollow blocks or calcium silicate blocks can be chosen instead on request, giving this modern home design some freedom in construction while keeping its clean lines.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.
