Renderings 2 – 2,644 Sq Ft Traditional 2-Story House Plan with 4 Bedrooms and 3 Bathrooms – 88916C

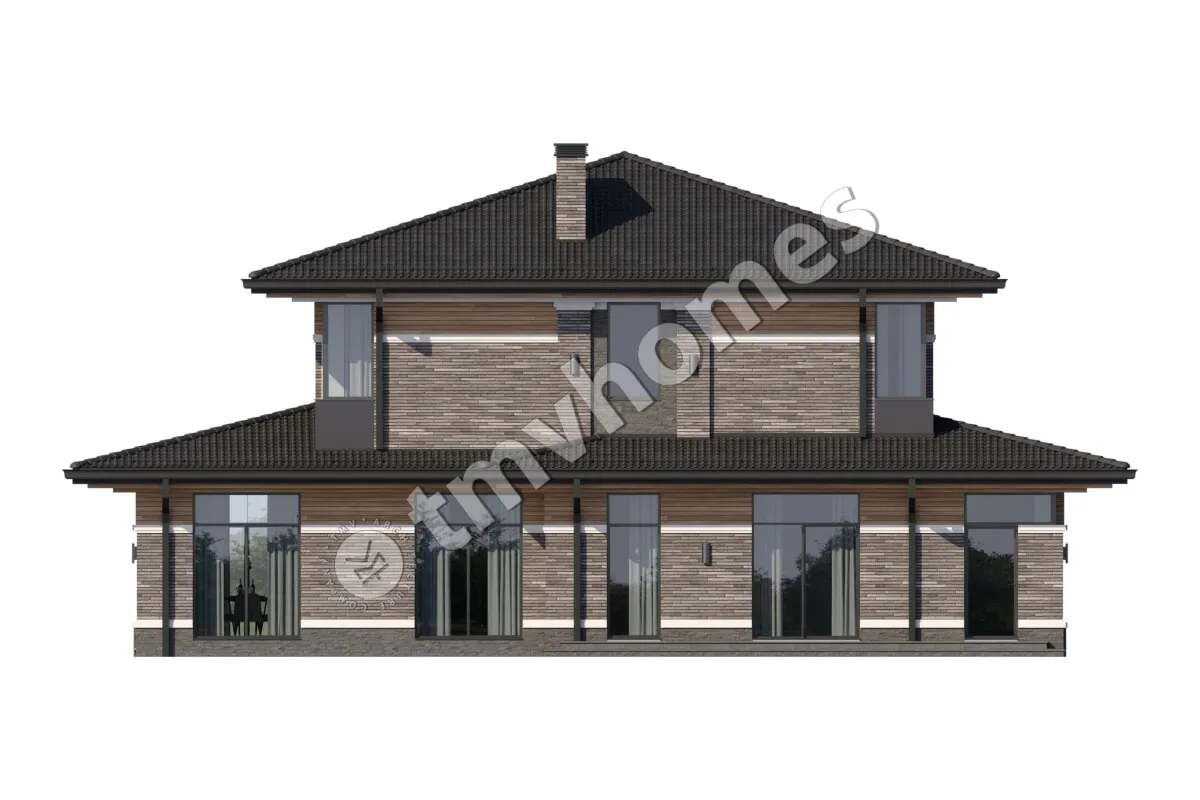

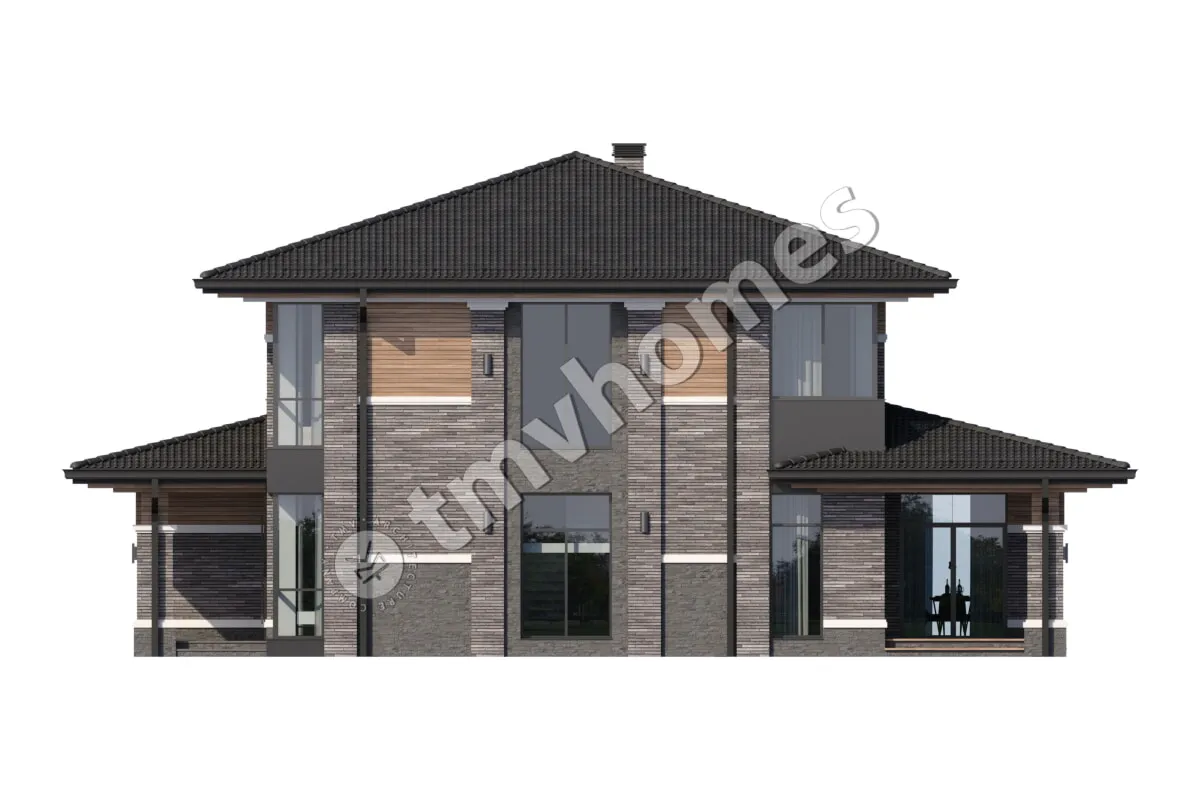

Renderings 3 – 2,644 Sq Ft Traditional 2-Story House Plan with 4 Bedrooms and 3 Bathrooms – 88916C Renderings 4 – 2,644 Sq Ft Traditional 2-Story House Plan with 4 Bedrooms and 3 Bathrooms – 88916C
6
Concept
Construction documents are prepared for the following countries:

2,644 Sq Ft Traditional 2-Story House Plan with 4 Bedrooms and 3 Bathrooms

Plan
88916C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2644
Total Heated ft²
3 + 0
Baths + 1/2 Baths
4 + 0
Beds + Home Office
0
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

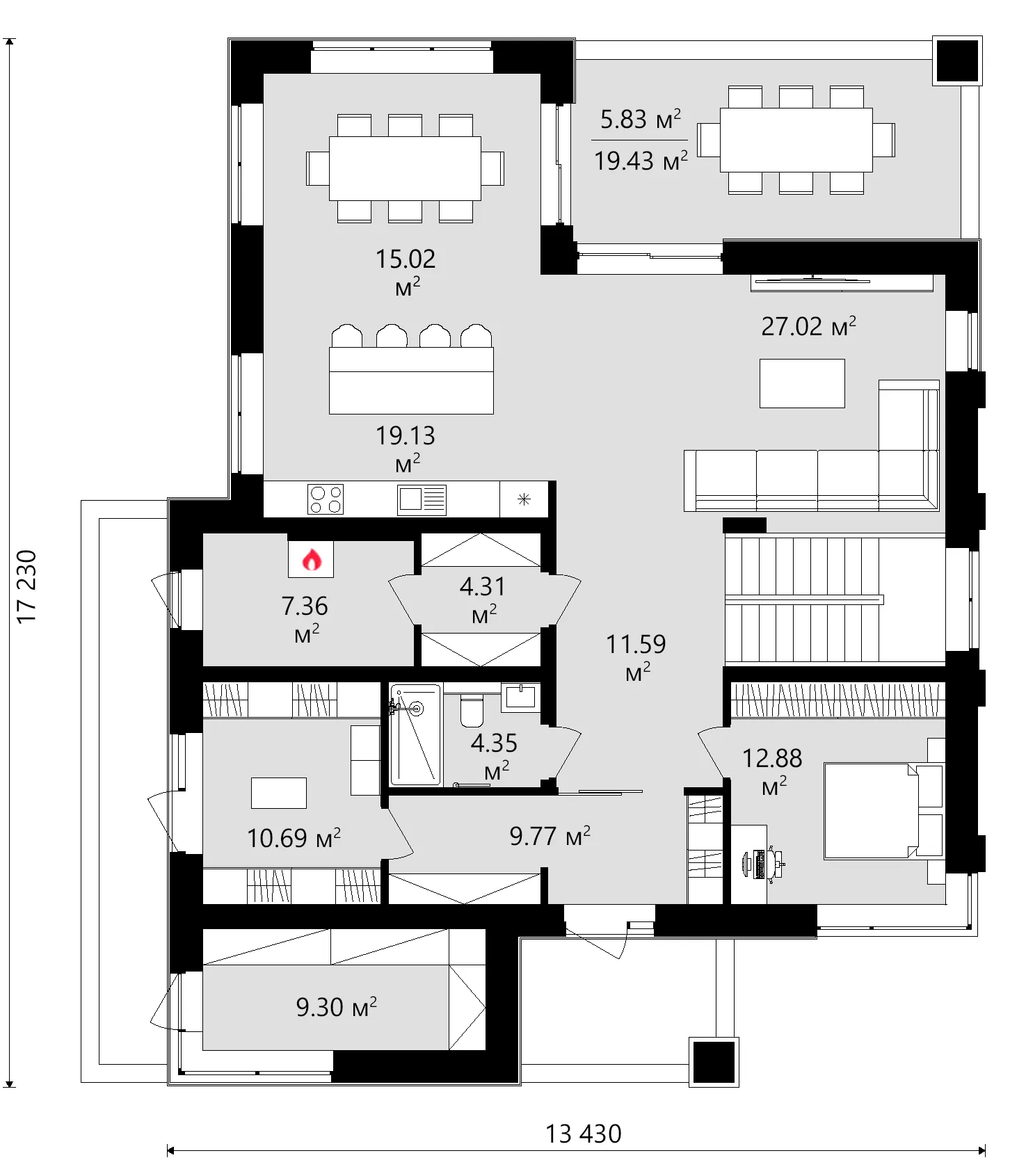

Main Floor
Main Floor 11 – 2,644 Sq Ft Traditional 2-Story House Plan with 4 Bedrooms and 3 Bathrooms – 88916C

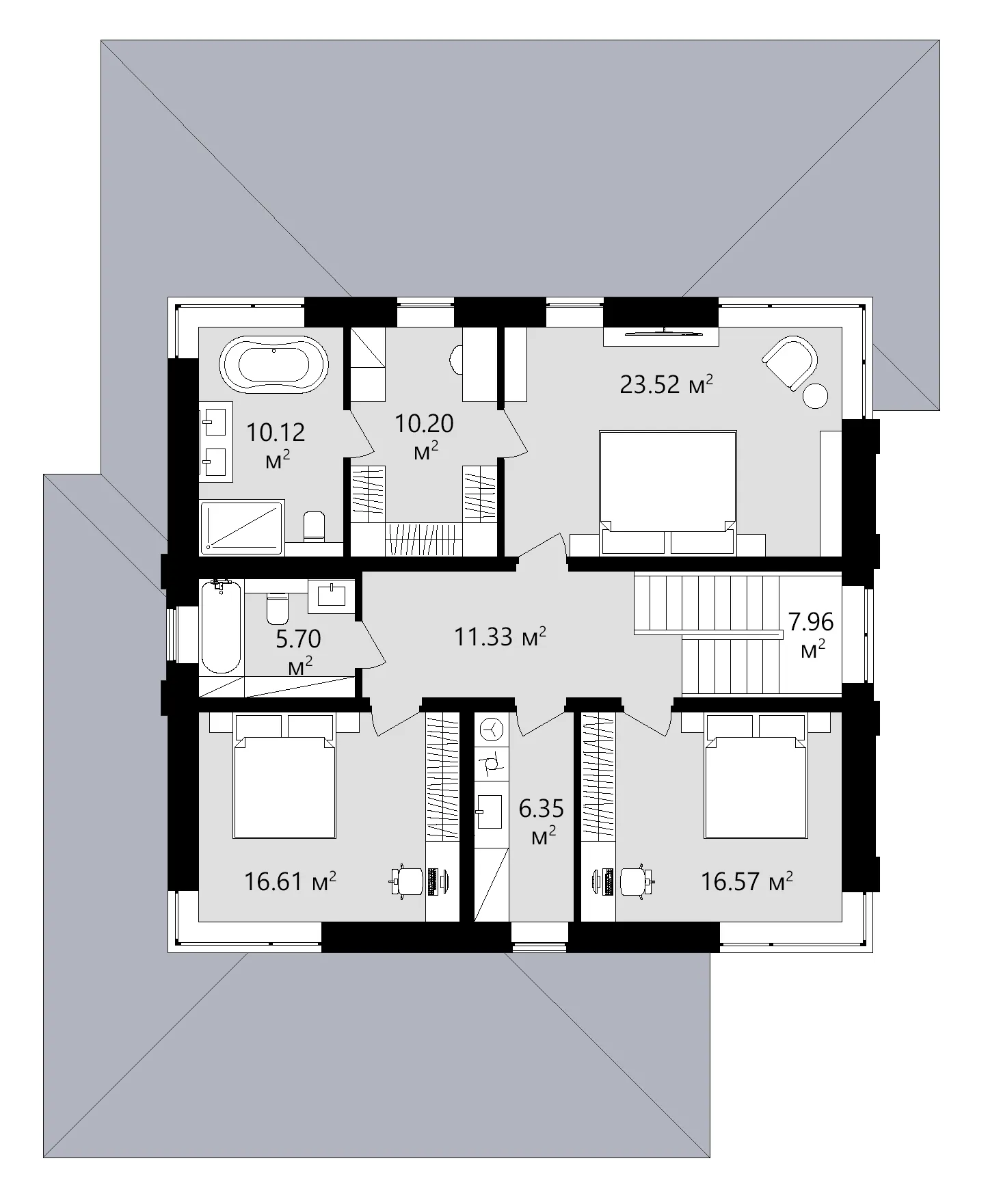

Second Floor
Second Floor 12 – 2,644 Sq Ft Traditional 2-Story House Plan with 4 Bedrooms and 3 Bathrooms – 88916C
Full Specs & Features
Area
Total Heated: 2643.72 ft²
Dimensions
Depth: 52'5" ft
Width: 40'9" ft
Height: 28'3" ft
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Brick
Wood
Rooms
Full bathrooms: 3
Bedrooms: 4
Utility room
Bonus/Flex Room
Laundry
Entry
Storage
Walk In Closet
Kitchen and Dining
Walk-in Pantry
Breakfast bar
Island
Interior Features
Laundry Second Floor
Second Floor Master
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Covered Front Porch
Covered Rear Porch
Corner Window
Large Windows
Floor-to-Ceiling Windows
Architectural Style
European
Prairie
Traditional

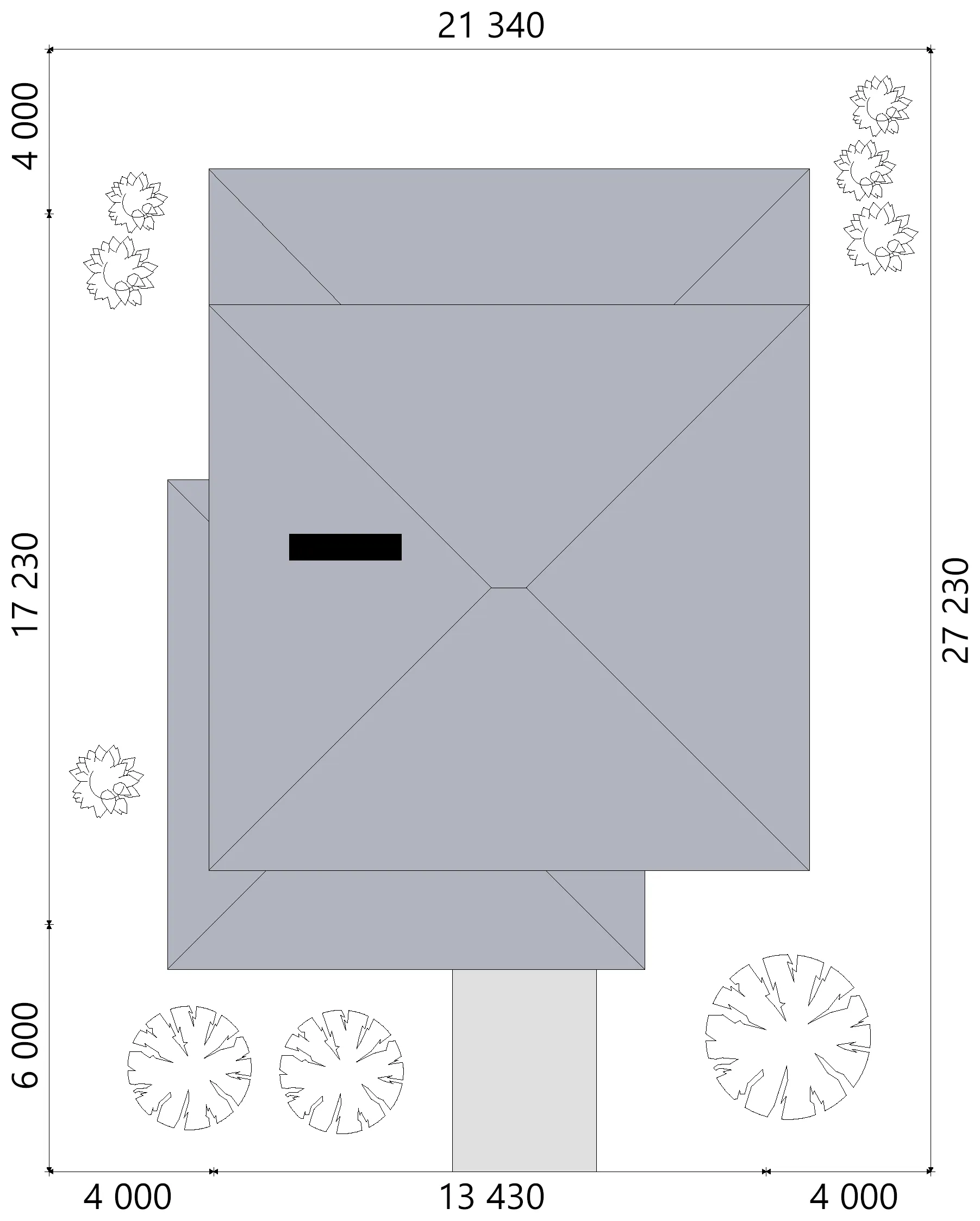

Roof
Roof Area: 3732.39 ft²
Hip
Roof Pitch: 4/12 (18°)

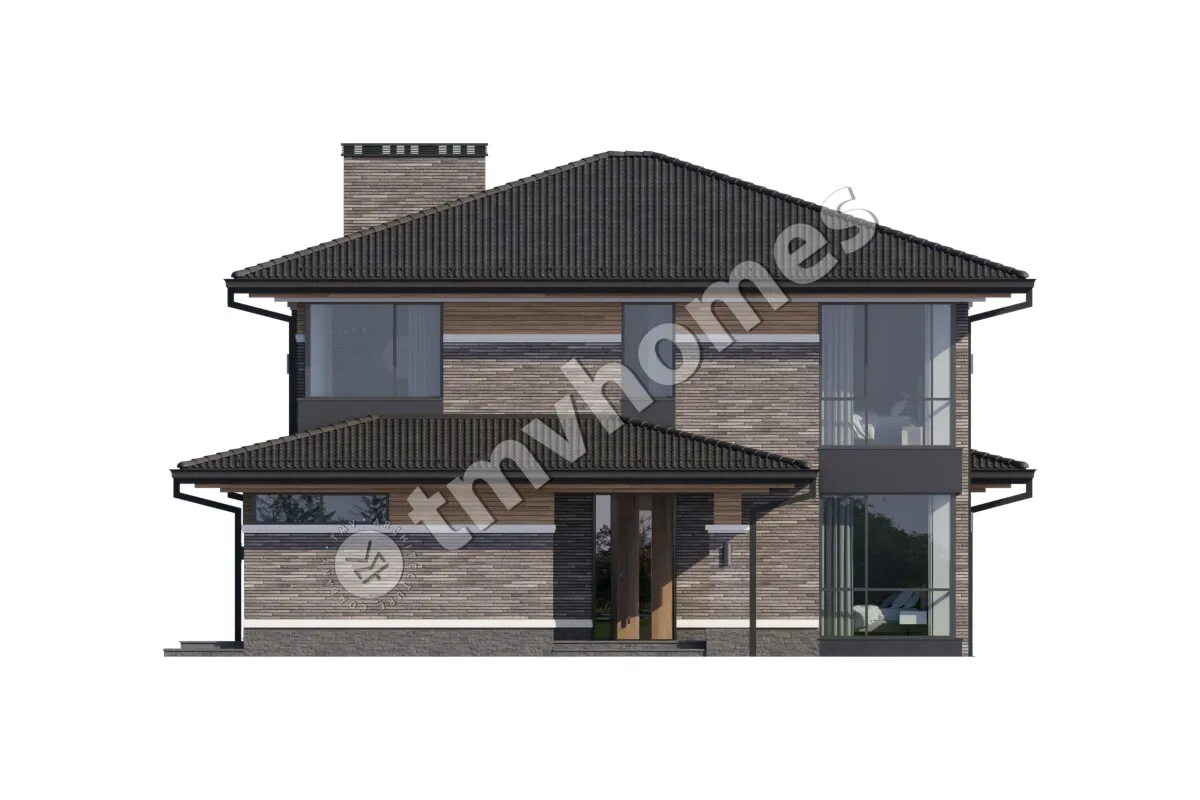

Spread across three storeys and 2,644 Sq Ft, plan 88916C is a 4-bedroom 3-storey house plan that blends Prairie, European and Traditional character beneath a hip roof with a 4/12 (18°) pitch. Brick and wood share the exterior walls of this single family home design, and the low roof line keeps the elevation quiet and well proportioned. The footprint is 40'9" wide and 52'5" deep, and the house rises to a height of 28'3".

The sleeping quarters sit upstairs, where the master suite occupies the second floor alongside the other bedrooms in a clustered layout, a good fit for families with young children. The master enjoys its own walk-in closet, and three full bathrooms are shared across the home, so no one waits long for a turn. Laundry is on the second floor as well, steps from the bedrooms and closets. A bonus/flex room offers space for a study, a hobby corner or an extra guest room, and a separate utility room and storage space keep equipment and seasonal gear tidy and out of the living areas.

On the main level, the entry opens to an open concept layout centred on a large family room. The large kitchen flows directly into it, with an island for prep work, a breakfast bar for casual meals and a walk-in pantry that holds groceries and small appliances. Large windows, floor-to-ceiling windows and a corner window draw daylight deep into the rooms, and on a short winter afternoon the family room still feels open and airy. Anyone browsing house plans Canada wide for a hip roof home with a generous, connected kitchen will find this arrangement easy to live with.

Two covered porches extend the living space outdoors: one at the front to greet neighbours, the other at the back for quiet evenings. The house is built on strip footings, with a slab or a concrete block foundation available on request, and it has no basement. Its walls are framed in aerated concrete block, while clay hollow block and sand-lime block are offered as alternatives. No garage is included, which keeps the plan focused entirely on rooms for everyday family life.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept (Metric)
CA$2636
Subtotal
Payment Protection: Plansplace releases your payment to the seller only after your plan set is delivered, digitally or in print.
Local Architects
Offers from your local architects who are ready to develop construction documents based on the digital concept.
