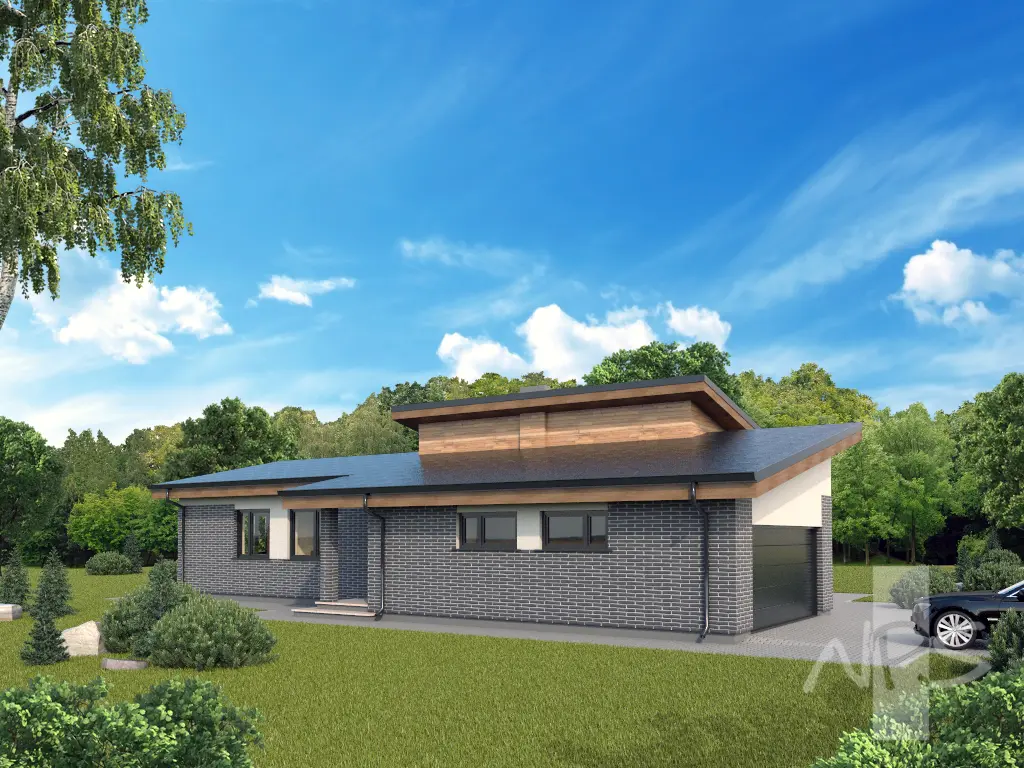

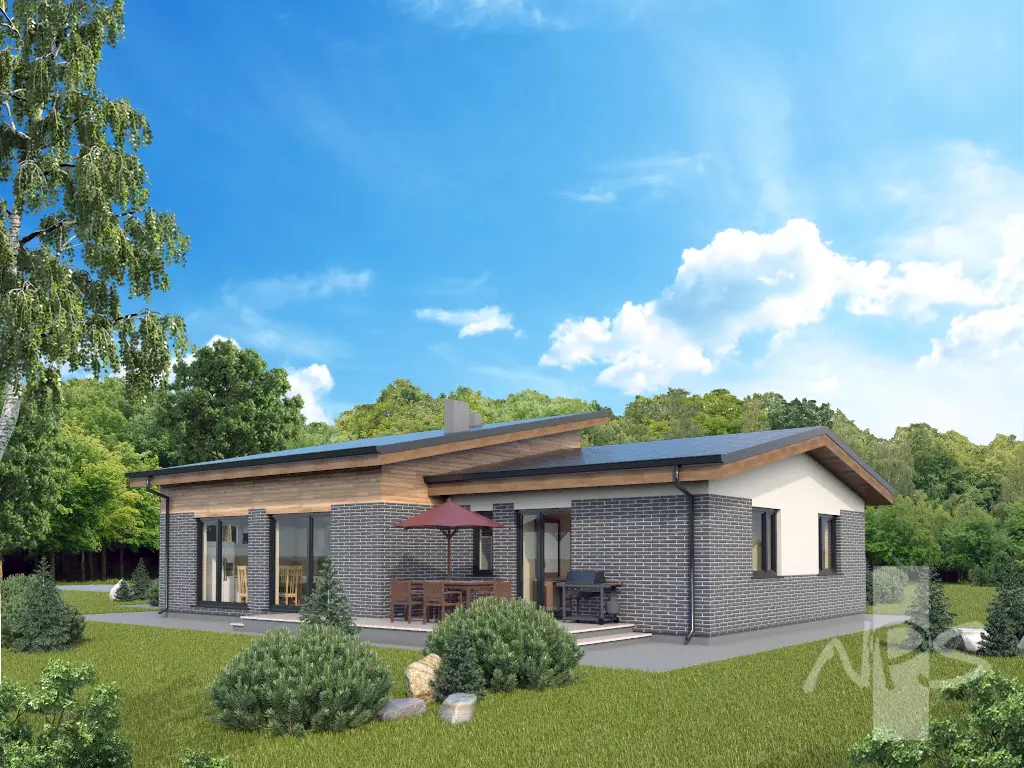

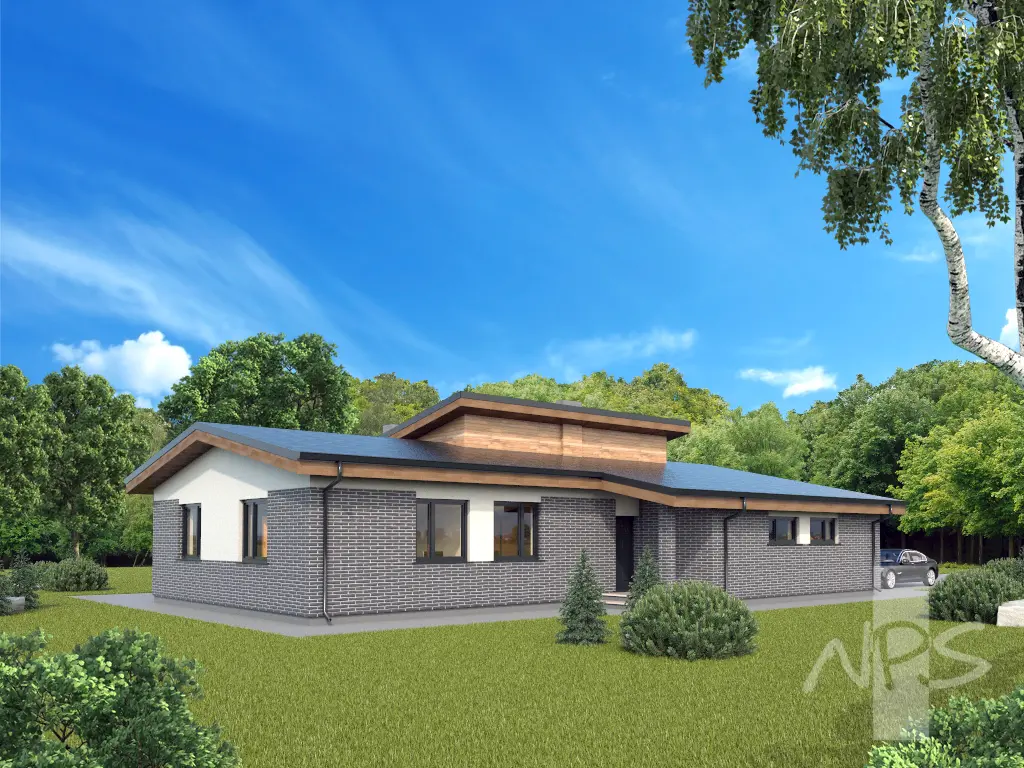

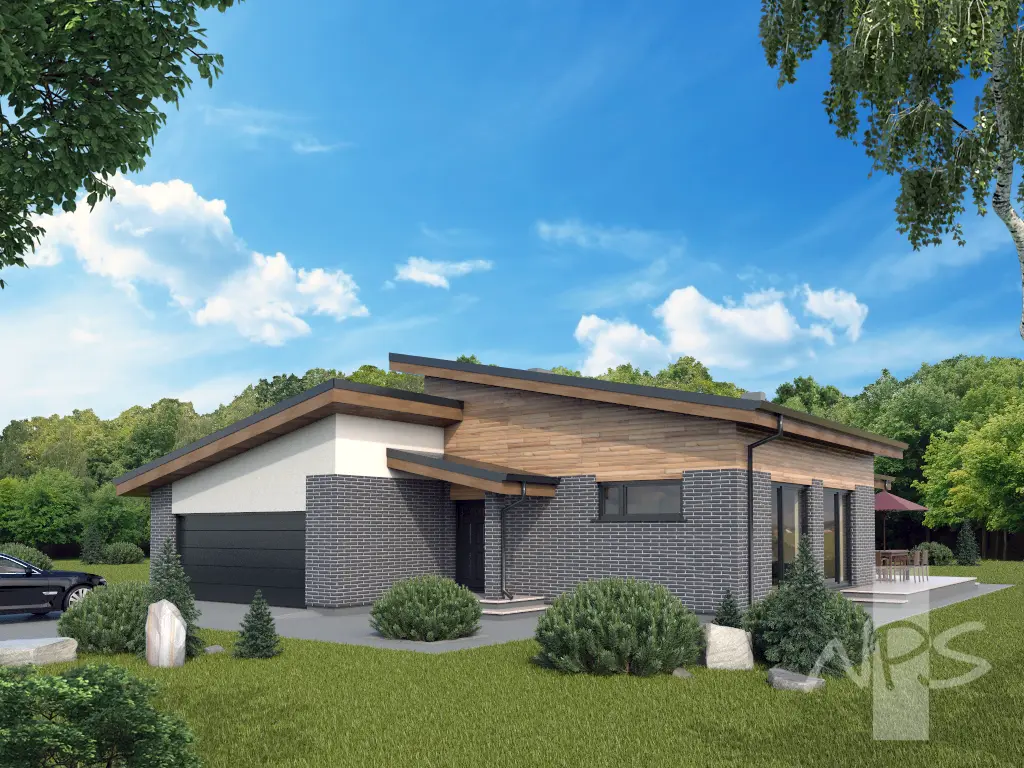

Renderings 2 – 1-Story House Plan 1475 ft², 3 Beds — 80209R
Renderings 3 – 1-Story House Plan 1475 ft², 3 Beds — 80209R Renderings 4 – 1-Story House Plan 1475 ft², 3 Beds — 80209R
5
Construction documents are prepared for the following countries:

1-Story House Plan 1475 ft²: 3 Beds, 1.5 Baths, Open Floor Plan, 1-Car Garage

Plan
80209R
Complete
Signed & Sealed
DC Available
Key Specs
1475
Total Heated ft²
1 + 1
Baths + 1/2 Baths
3 + 0
Beds + Home Office
1
Cars
111

222

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

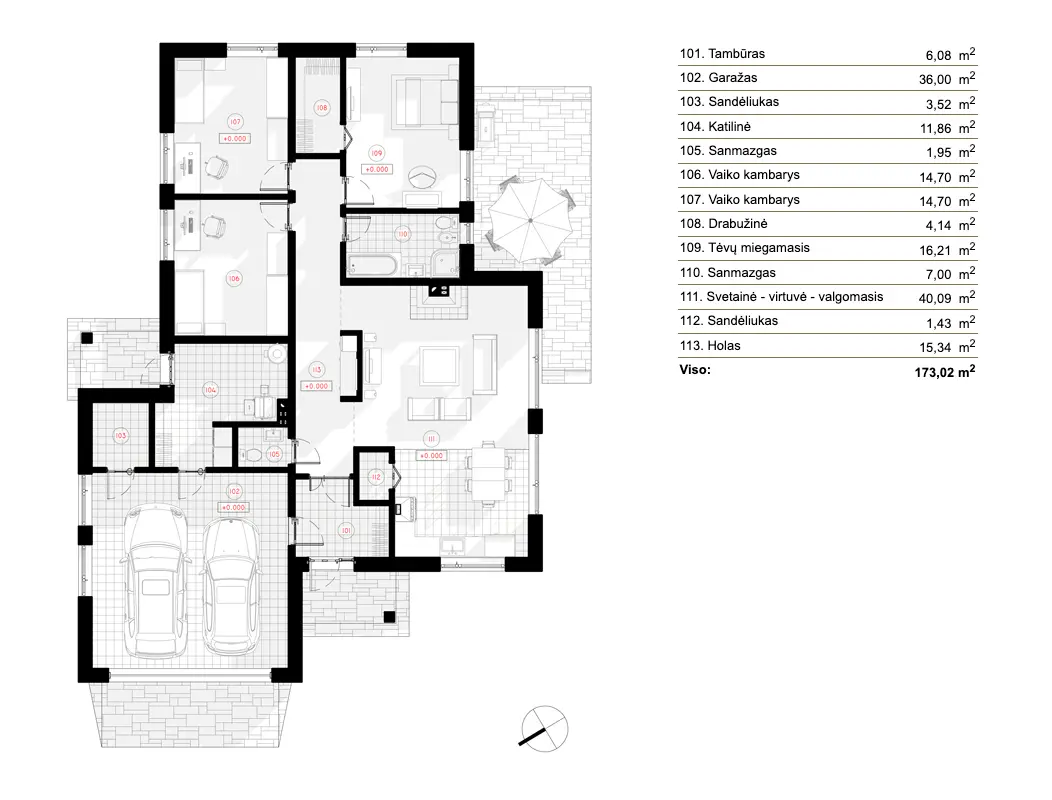

Floor Plans
Main Floor
Main Floor 6 – 1-Story House Plan 1475 ft², 3 Beds — 80209R
Full Specs & Features
Area
First Floor: 1474.87 ft²
Total Heated: 1474.87 ft²
Dimensions
Depth: 59'4" ft
Width: 43'1" ft
Height: 18'4" ft
Garage
Area: 388 ft²
Cars: 1
Front Entry
Extension Forward
Foundation
Piling
Slab (Optional)
Concrete Stem Wall (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Calcium silicate block
Aerated Concrete Block (Optional)
Ceramic Block (Optional)
Wood-framed (Optional)
Exterior Wall Materials
Stone/Brick Veneer
Wood
Stucco
Rooms
Full bathrooms: 1
Half bathrooms: 1
Bedrooms: 3
Utility room
Entry
Storage
Walk In Closet
Kitchen and Dining
Walk-in Pantry
Breakfast Nook
Interior Features
Fireplace in Family Room
Main Floor Master
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Vaulted ceilings
Exterior Features
Deck
Architectural Style
Bungalow
European
Traditional
Roof
Double Shed
Ridge perpendicular to street
Roof Pitch: 3/12 (14°)

Designed for one-level living, plan 80209R is a 3-bedroom bungalow house plan of 1475 ft² on a single storey, finished under a double shed roof with a low 3/12 (14°) pitch. European and Traditional influences shape its character, and the exterior combines stone/brick veneer, wood and stucco. Because the ridge is set perpendicular to the street, the roofline gives the front elevation a distinctive, clean profile. Overall, the house is 43'1" wide and 59'4" deep and rises to a height of 18'4", a single family home that keeps every daily routine on the same floor.

The sleeping quarters are planned with family life in mind. All three bedrooms are clustered in one part of the home, a sensible arrangement when children are young and parents want them within earshot. With a main floor master, nobody climbs stairs at the end of the day, and the principal bedroom has a walk-in closet that keeps clothing organized and out of sight. One full bathroom serves the household, and a half bathroom adds a second washroom for busy mornings and for visitors. A utility room takes care of laundry, while separate storage holds the boots, bins and seasonal items every household collects.

Step in through the entry and the open floor plan comes into view. The family room is the most generous space in the house, with vaulted ceilings that lift the volume overhead and a fireplace that becomes the centre of the room after dark. Open to it, the large kitchen leaves enough space for more than one cook, and a walk-in pantry keeps dry goods, small appliances and bulk purchases in one place. The breakfast nook is ready for quick weekday meals, homework sessions or a slow coffee with a neighbour. Anyone searching for a house plan with fireplace and real room to gather will find both here.

The garage is a front entry design for one car, extended forward so that it projects ahead of the rest of the facade. A deck carries the living space outdoors for summer meals and long evenings in the fresh air. The home has no basement and rests on a bored pile foundation; slab, strip and block foundations are also available on request. Calcium silicate block is the standard wall framing, and the plan can also be ordered with aerated concrete, ceramic block or frame walls. Among the house plans Canada families compare, this 1-storey home design offers 1475 ft² of thoughtfully arranged space with nothing wasted and everything within reach.

Architect
NPS projektai NPS projektai Architecture Firm country with code lt Lithuania
country with code lt Lithuania
Šiauliai City Municipality, Šiauliai, Tilžės g. 151 (II aukštas)
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept (Metric)
CA$1982
Subtotal
Payment Protection: Plansplace releases your payment to the seller only after your plan set is delivered, digitally or in print.
Local Architects
Offers from your local architects who are ready to develop construction documents based on the digital concept.
