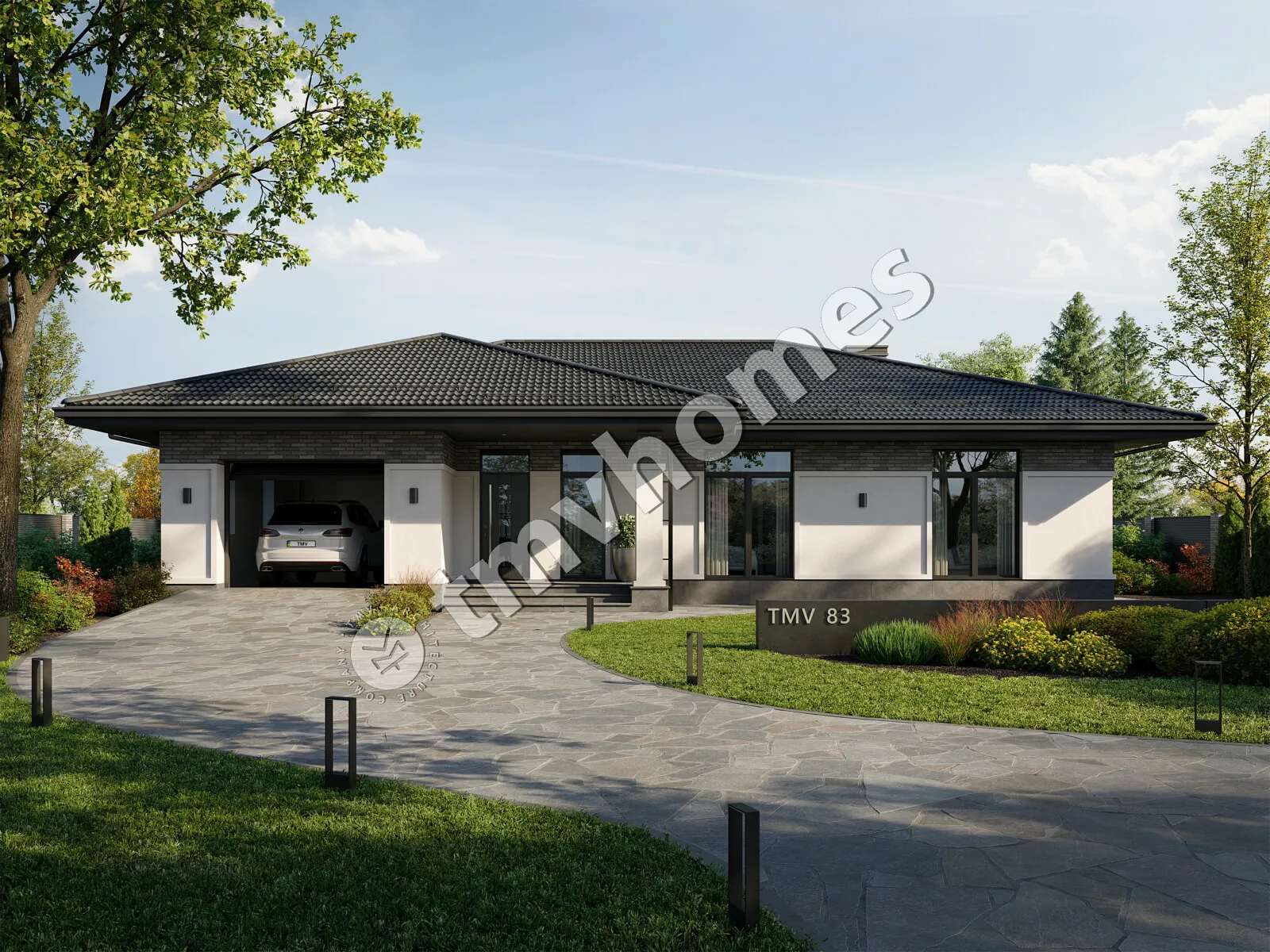

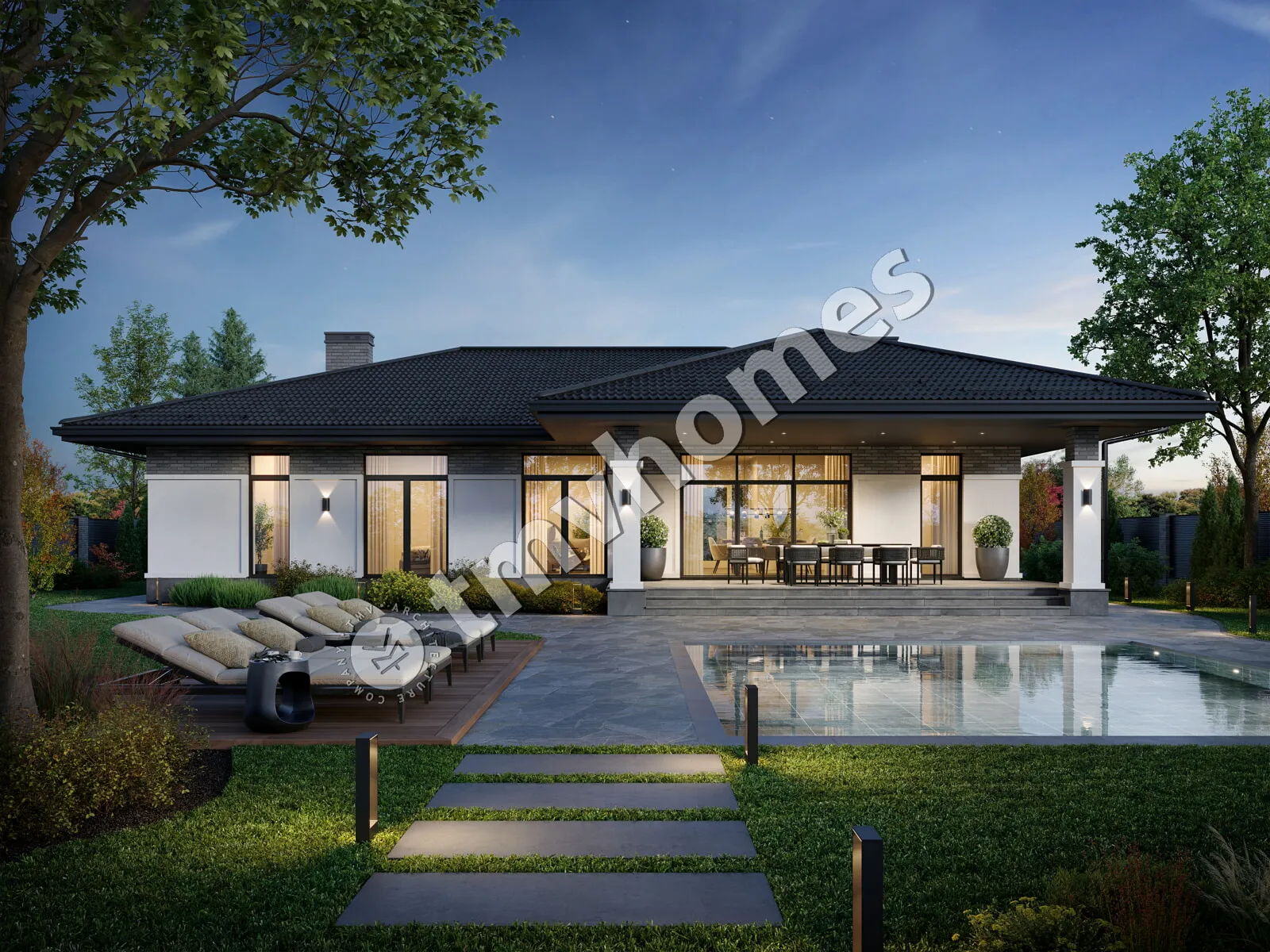

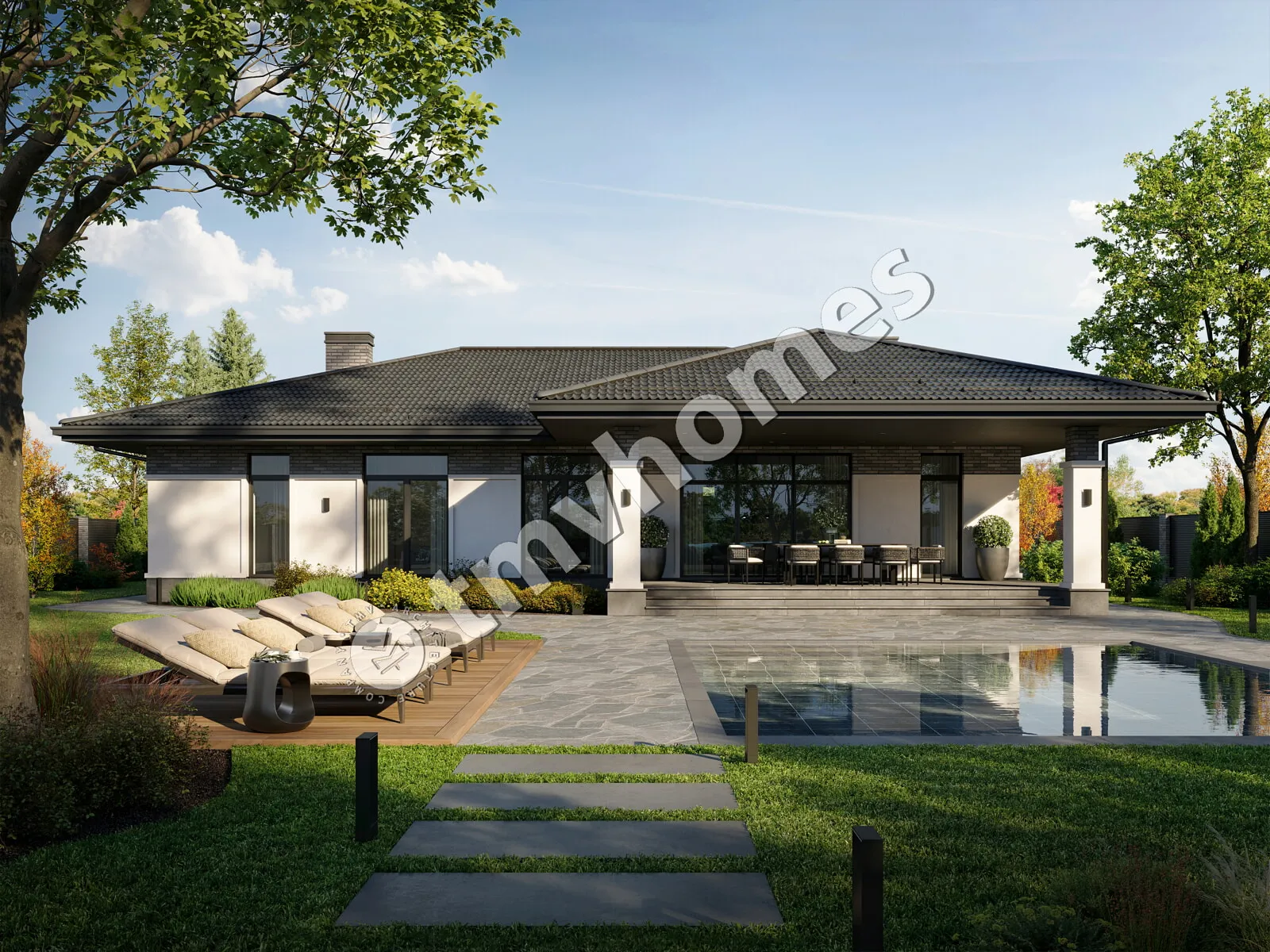

Renderings 2 – 1,569 Sq Ft Traditional Single-Story House Plan with 3 Bedrooms and 1-Car Garage – 76454C

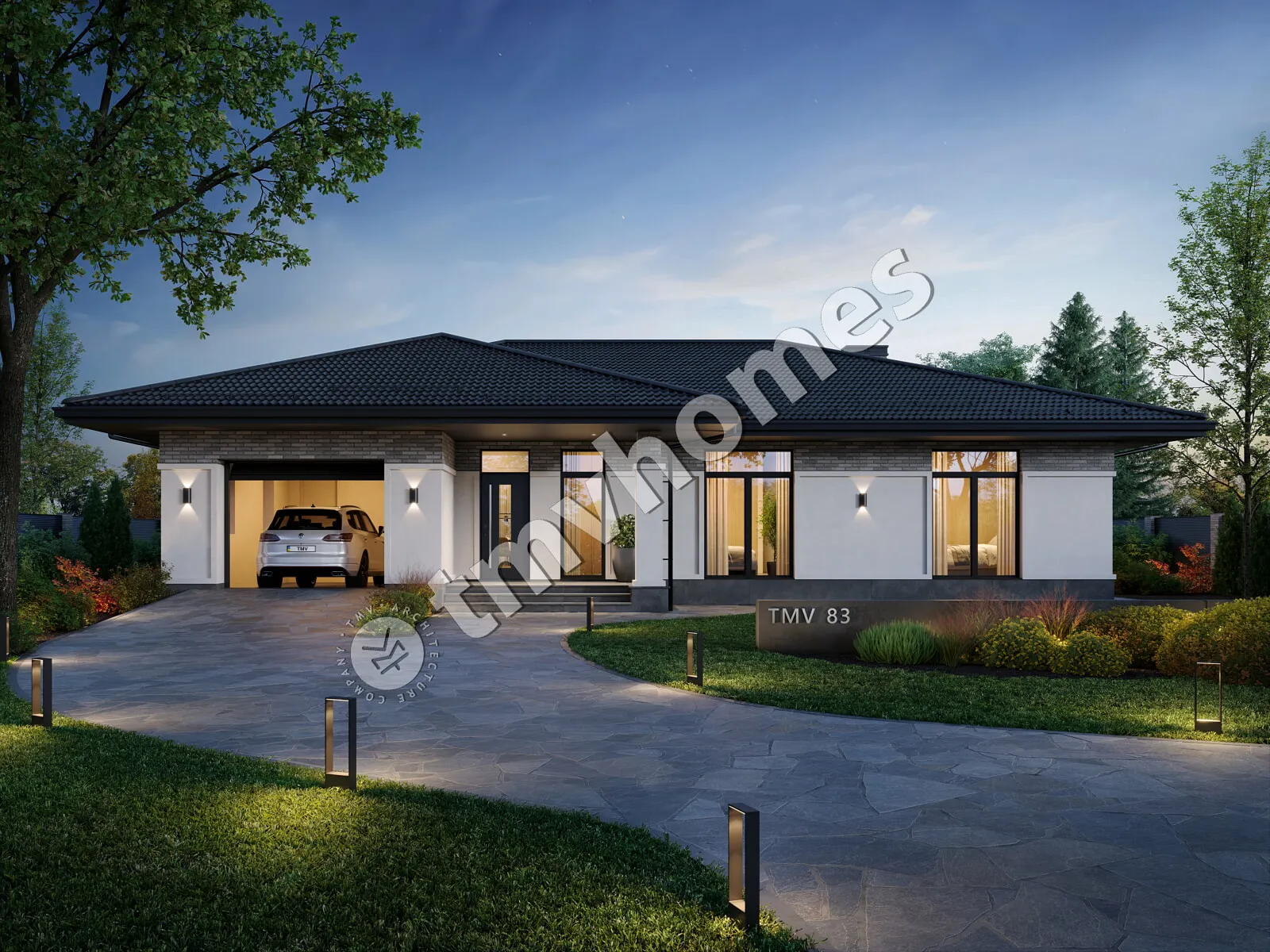

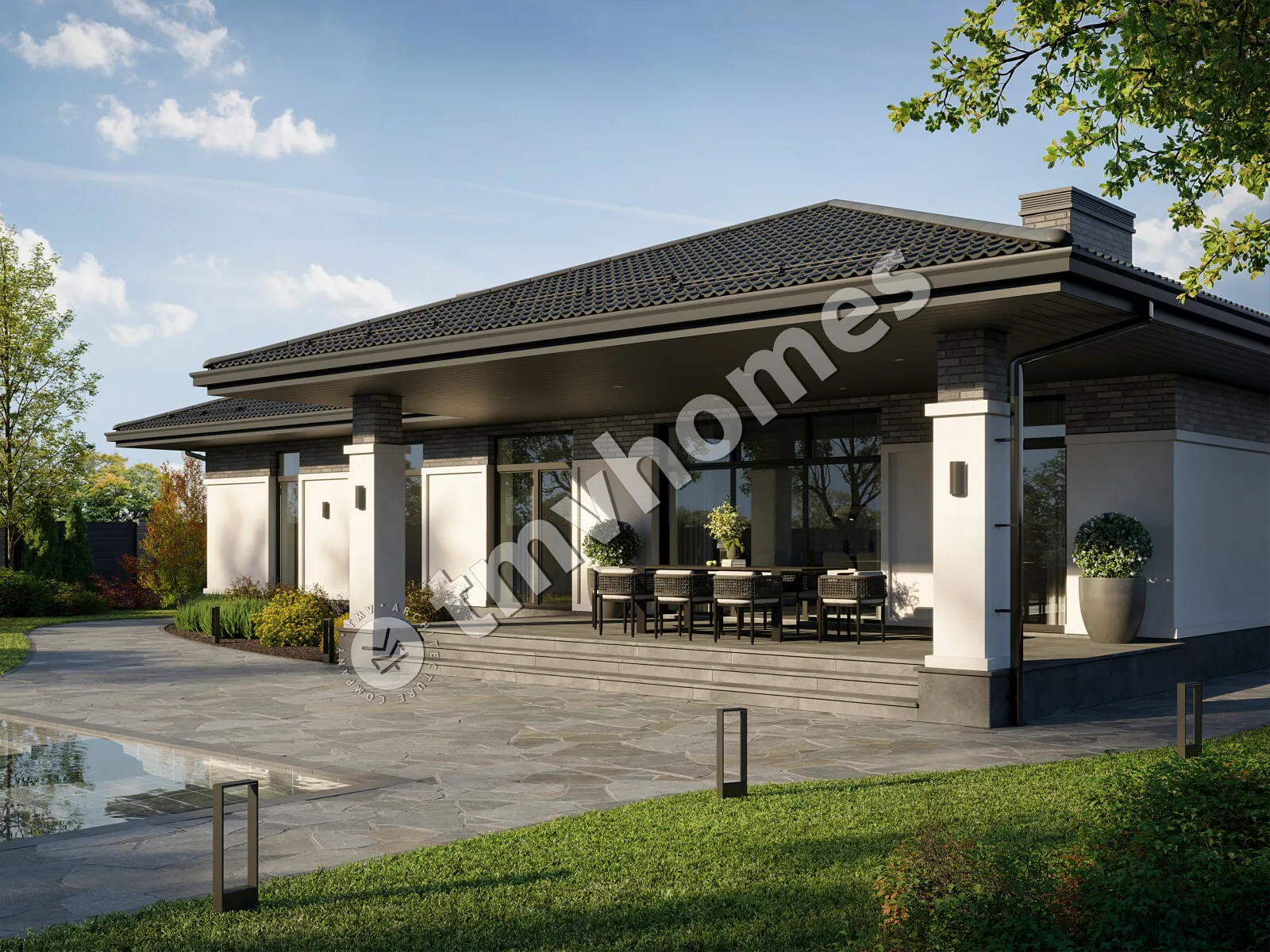

Renderings 3 – 1,569 Sq Ft Traditional Single-Story House Plan with 3 Bedrooms and 1-Car Garage – 76454C Renderings 4 – 1,569 Sq Ft Traditional Single-Story House Plan with 3 Bedrooms and 1-Car Garage – 76454C
6
Concept
Construction documents are prepared for the following countries:

1,569 Sq Ft Traditional T-Shaped Single-Story House Plan with 3 Bedrooms, 3 Bathrooms and 1-Car Garage

Plan
76454C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
1569
Total Heated ft²
3 + 0
Baths + 1/2 Baths
3 + 0
Beds + Home Office
1
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

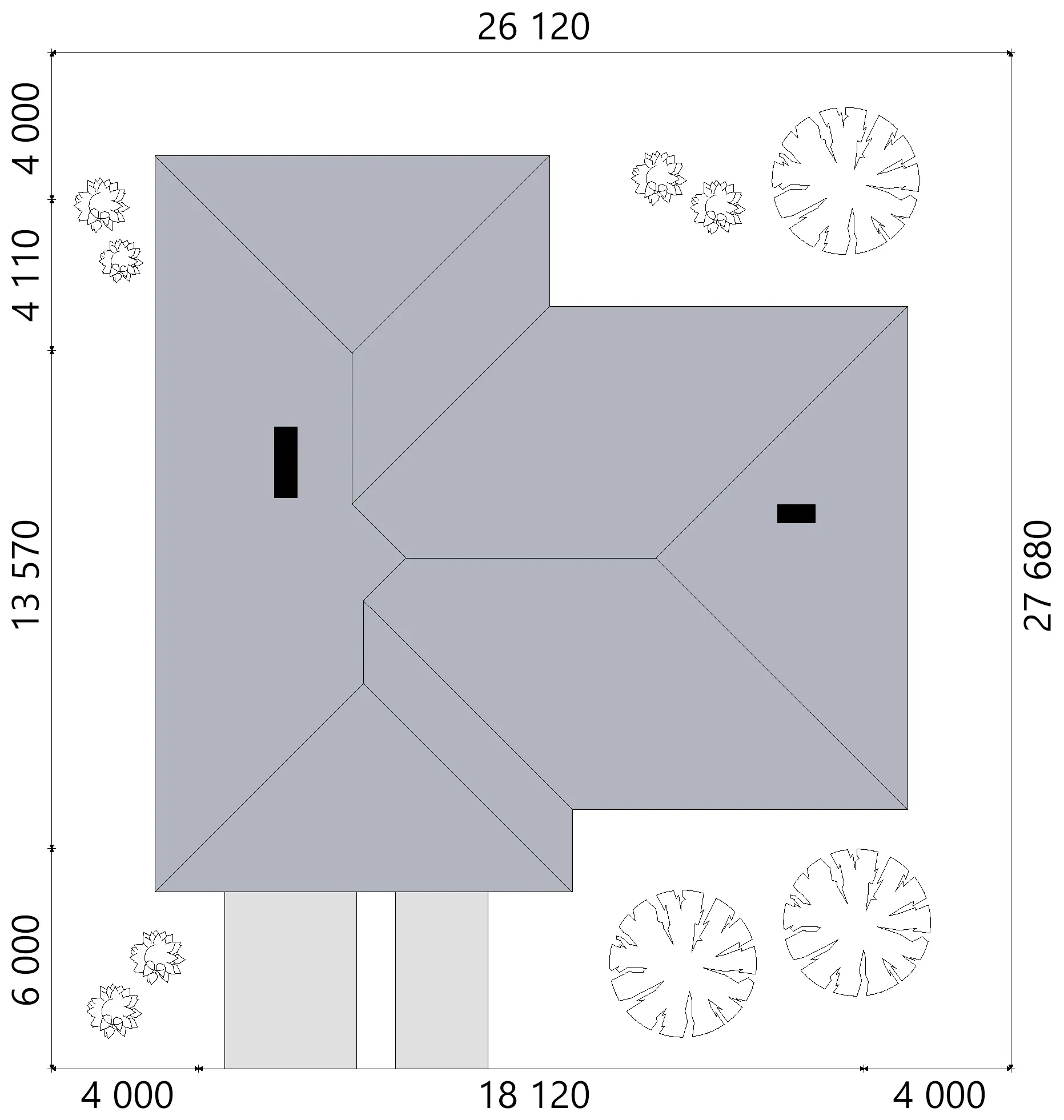

Rzut dachu

Przekroje

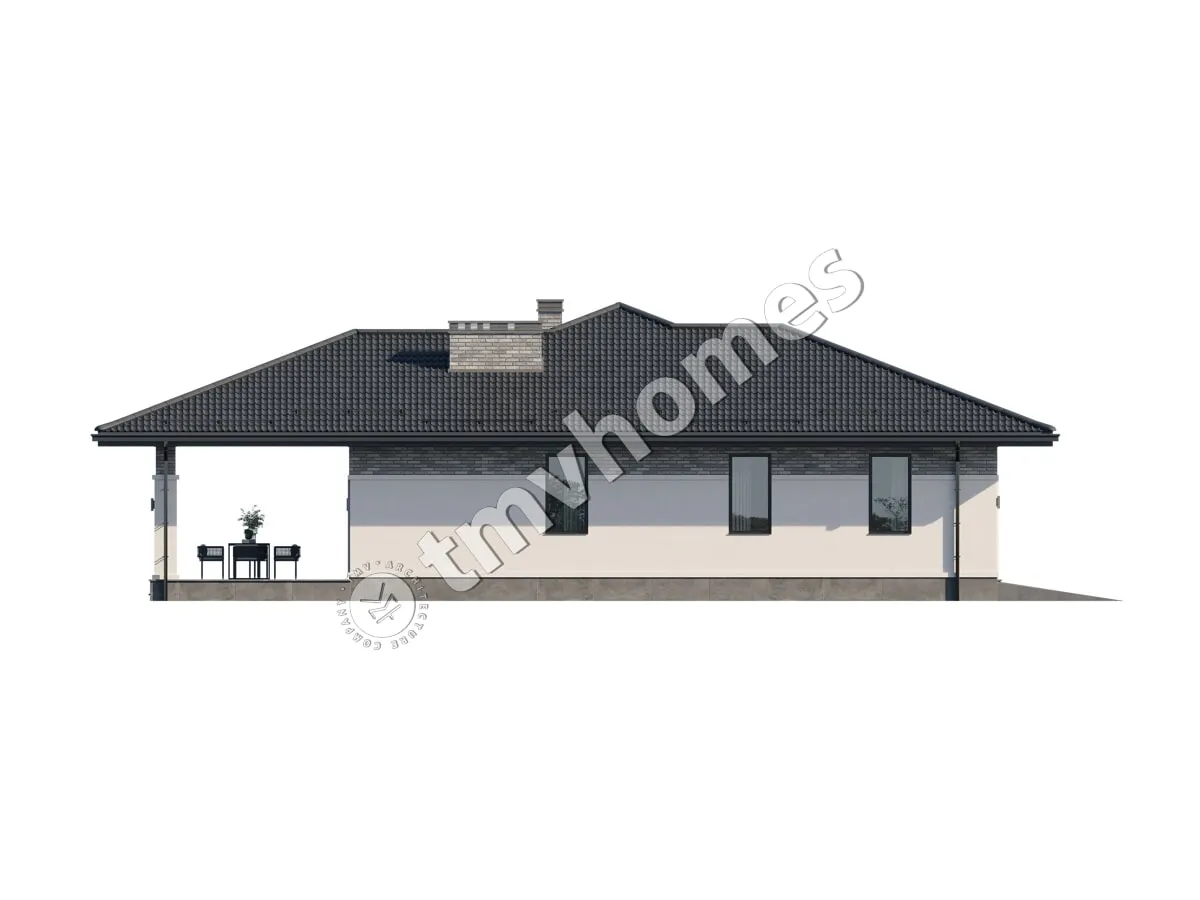

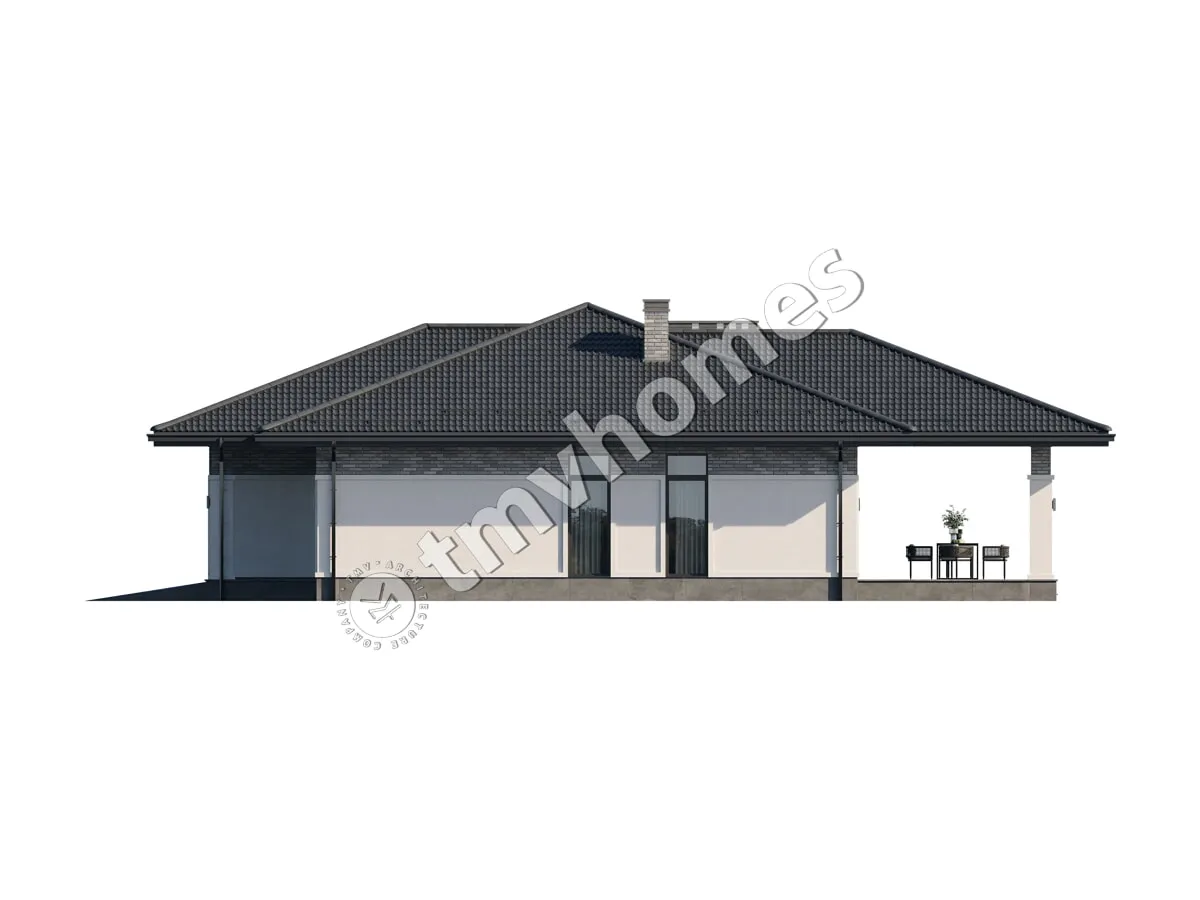

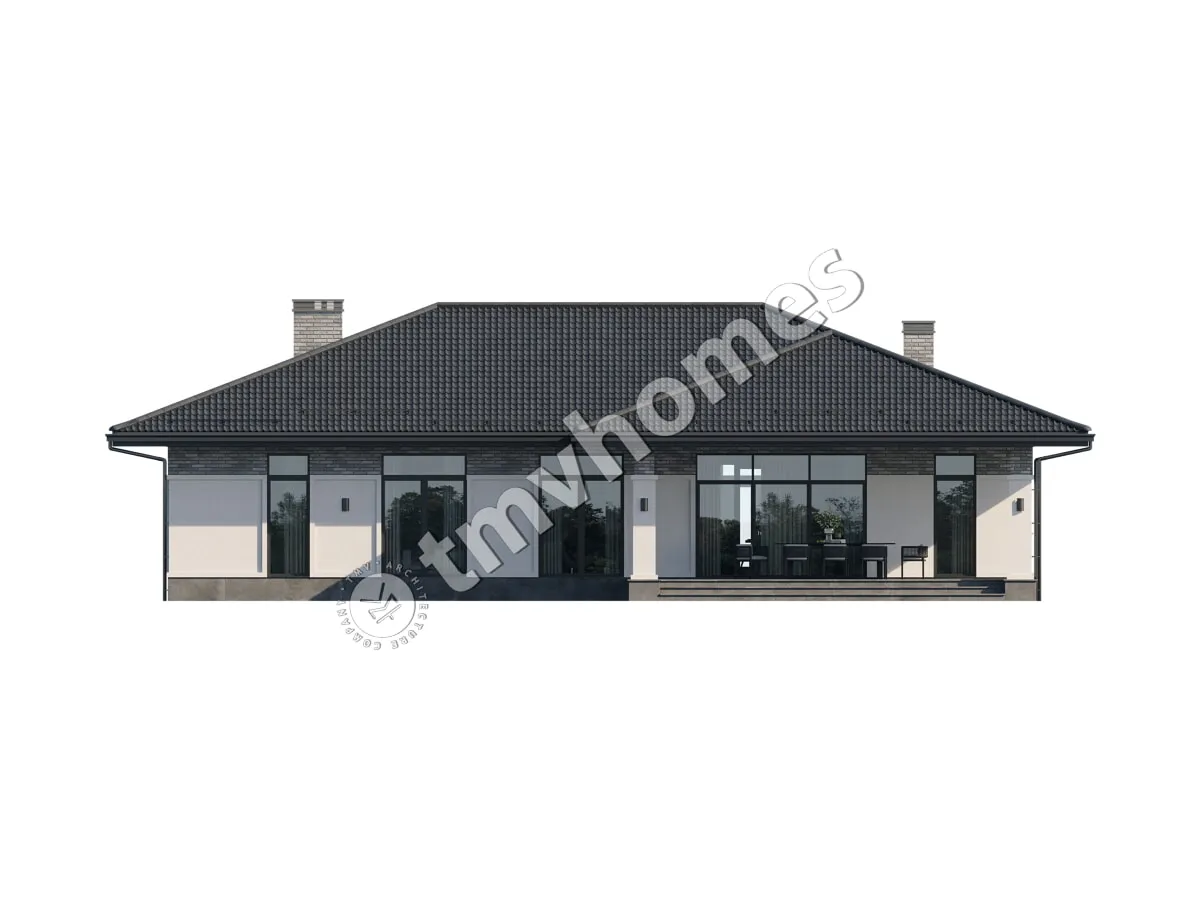

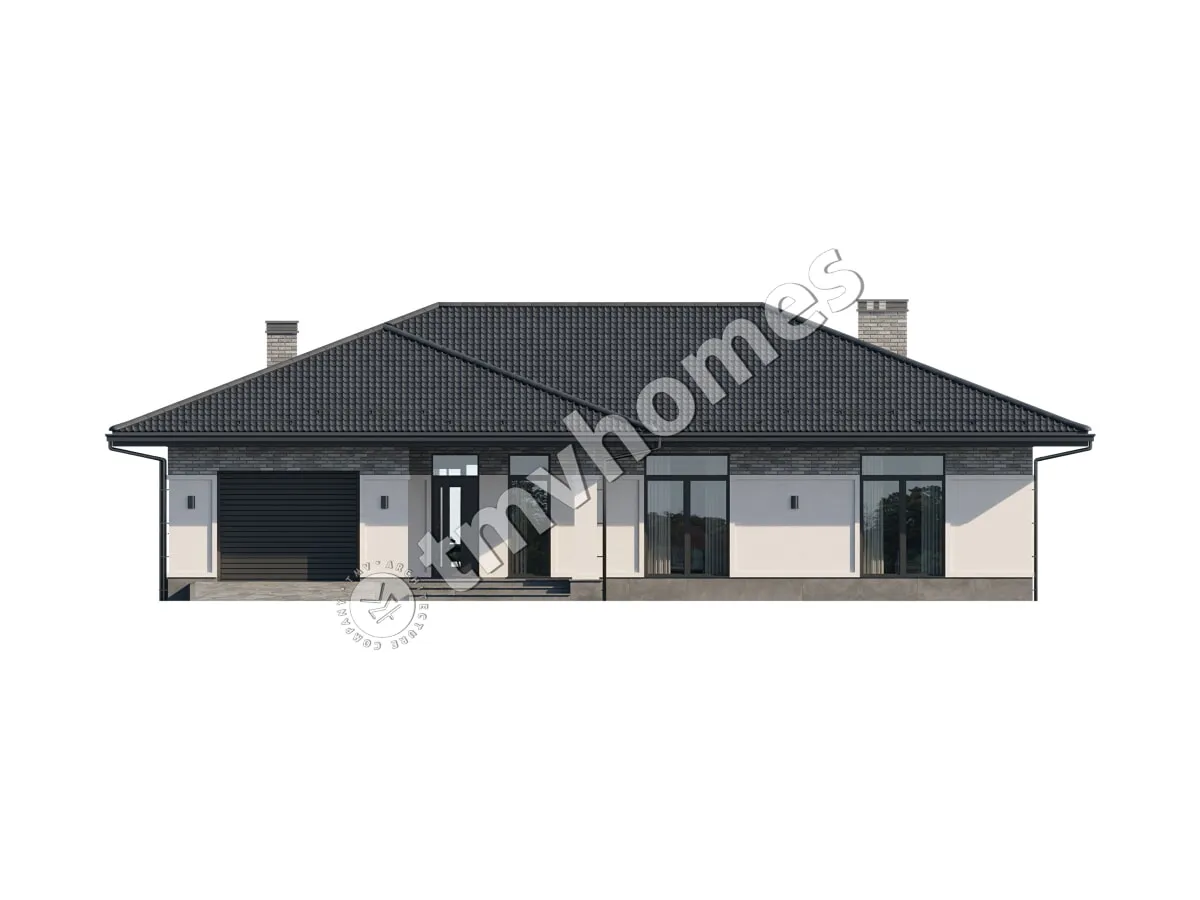

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

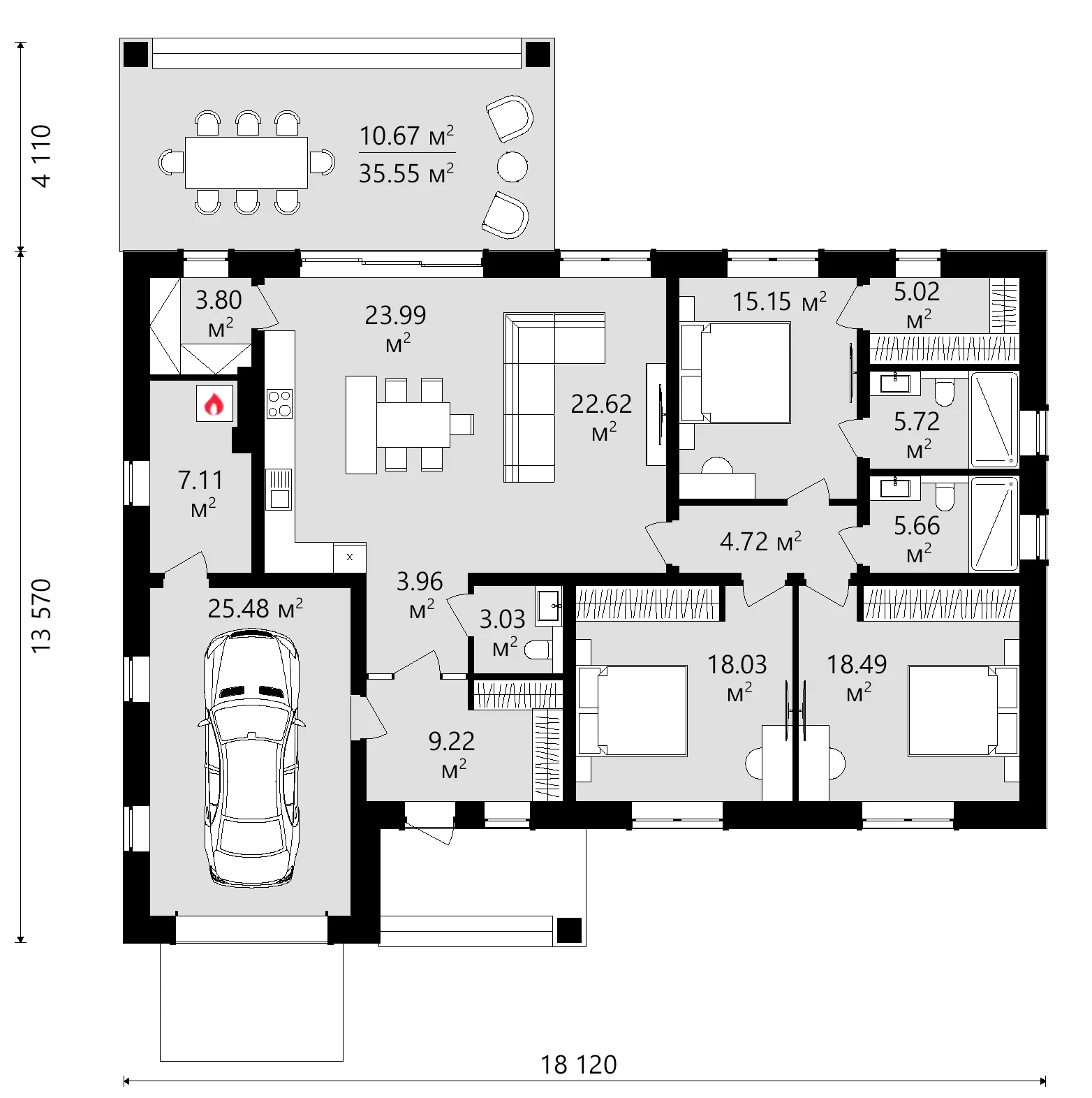

Main Floor
Main Floor 12 – 1,569 Sq Ft Traditional Single-Story House Plan with 3 Bedrooms and 1-Car Garage – 76454C
Full Specs & Features
Area
Total Unheated: 274.26 ft²
Total Heated: 1568.62 ft²
Dimensions
Depth: 53'8" ft
Width: 55'2" ft
Height: 18'9" ft
Garage
Area: 274 ft²
Cars: 1
Front Entry
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Stucco
Rooms
Full bathrooms: 3
Bedrooms: 3
Utility room
Entry
Walk In Closet
Kitchen and Dining
Walk-in Pantry
Breakfast bar
Breakfast Nook
Interior Features
Main Floor Master
Clustered Bedrooms
Open Floor Plan
Large Kitchen (>130 ft²)
Exterior Features
Covered Rear Porch
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Bungalow
European
Traditional
Roof
Roof Area: 4042.60 ft²
Hip & Valley
Roof Pitch: 5/12 (22°)

Designed as a 3-bedroom bungalow house plan, 76454C combines European detailing with Traditional lines in a 1-storey layout of 1,569 Sq Ft, topped by a hip & valley roof with a 5/12 (22°) pitch. Stucco exterior walls wrap the T-shaped footprint, which is 55'2" wide and 53'8" deep, with an overall height of 18'9". This single family home keeps every room on one level, from the front entry to the back porch.

The sleeping quarters are grouped together rather than scattered across the house. The clustered bedrooms share one part of the plan, and the main floor master sits among them with its own walk-in closet. Three full bathrooms serve three bedrooms, so nobody waits in the hallway when the whole household is getting ready at the same hour. A separate utility room takes laundry and household equipment away from the living areas, and the entry gives the house a proper arrival point instead of opening straight into the main room.

Past the entry, an open floor plan joins the living area and the kitchen into one shared space. The large kitchen is the working centre of this home design. Its breakfast bar handles quick meals and homework, the breakfast nook suits slower weekend mornings, and the walk-in pantry stores bulk groceries and small appliances behind a door. Large windows and floor-to-ceiling windows draw daylight well into the room, so the space stays bright through the day. Out back, the covered rear porch carries the living area outdoors, a sheltered spot for a long summer dinner.

Built without a basement, the house stands on strip footings, while a slab or a concrete block foundation can be requested as an alternative. The walls are framed in autoclaved aerated concrete, and clay block or calcium silicate block framing is offered as an option. The front-entry garage fits one car and keeps it close to the house. Among house plans in Canada built around single-level living, 76454C pairs a main floor master, a generous kitchen with a walk-in pantry and a covered porch in a well-organized bungalow of 1,569 Sq Ft.
