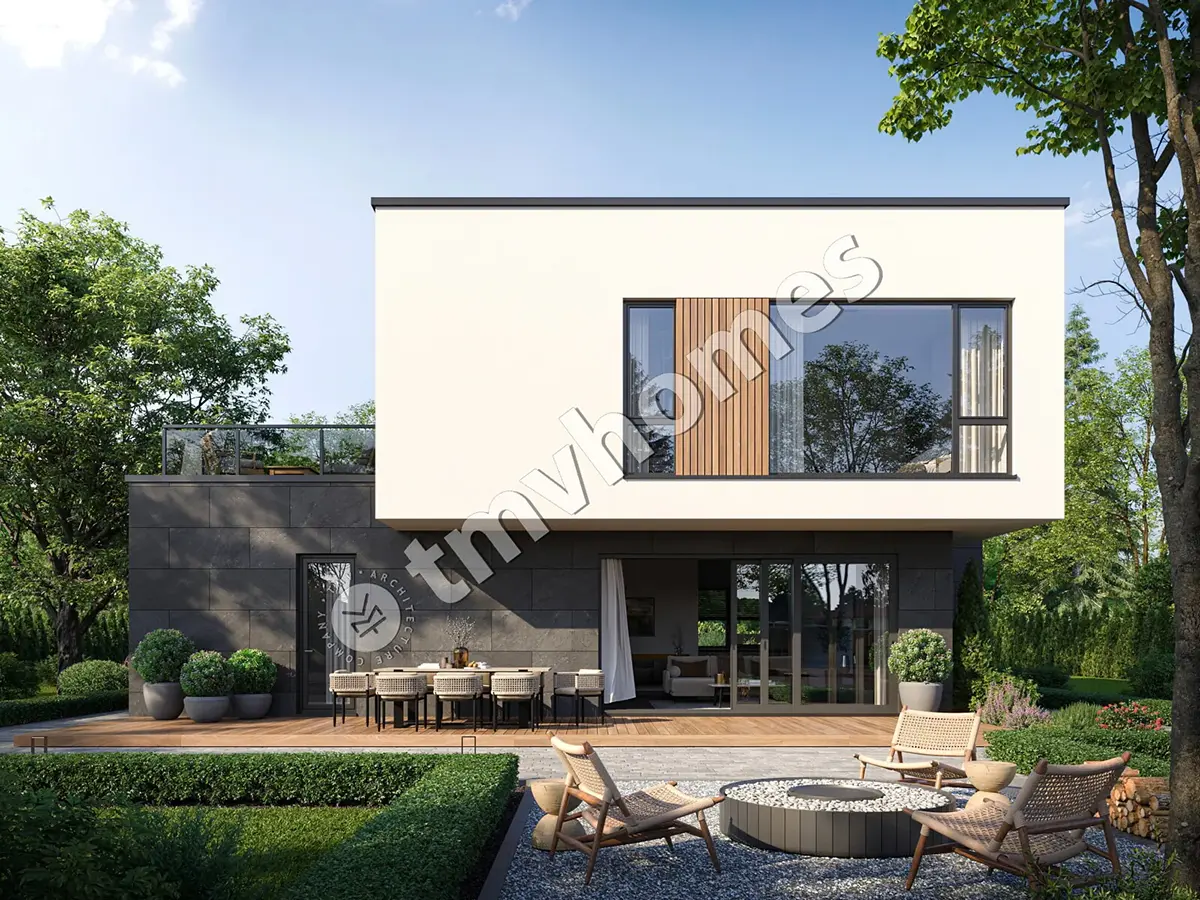

Renderings 2 – 1,970 Sq Ft Modern 2-Story House Plan with 3 Bedrooms and 2.5 Bathrooms – 72907C

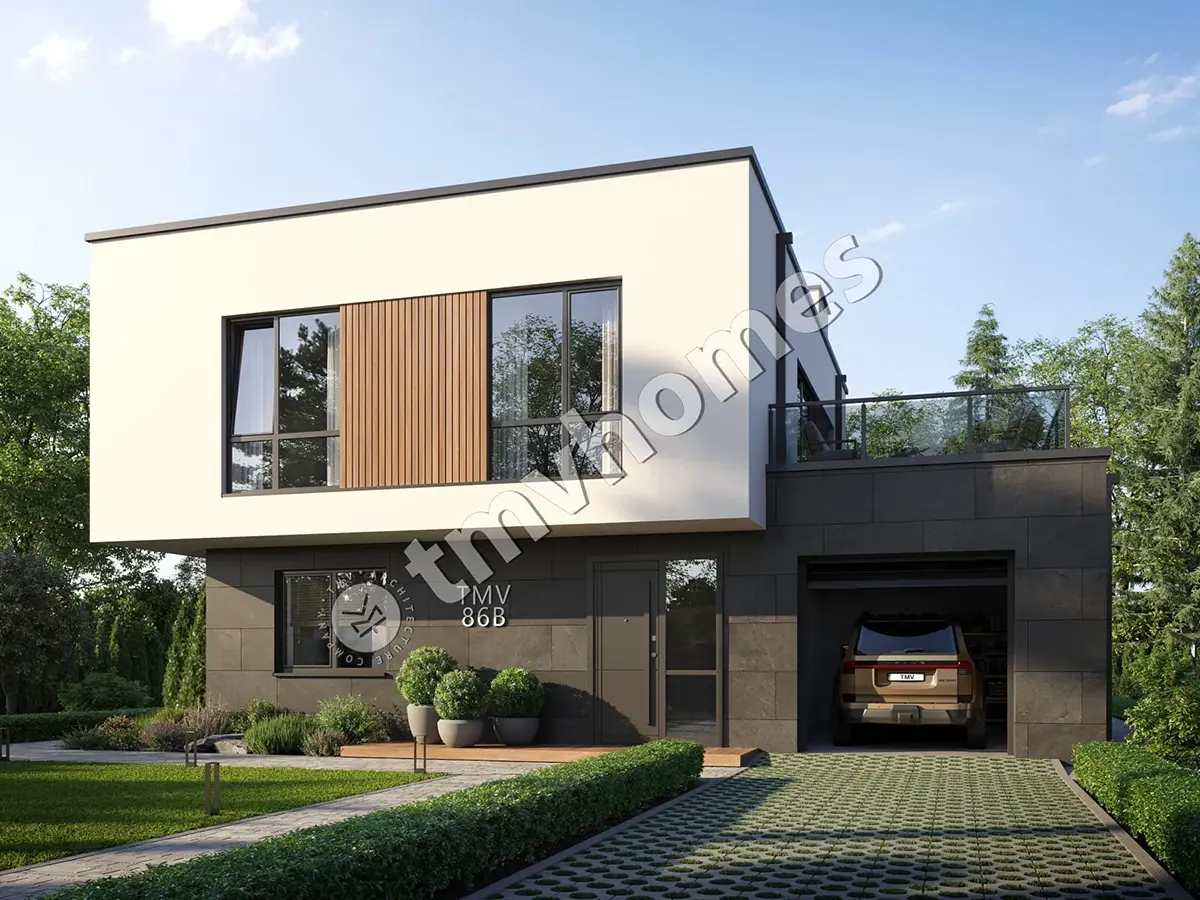

Renderings 3 – 1,970 Sq Ft Modern 2-Story House Plan with 3 Bedrooms and 2.5 Bathrooms – 72907C Renderings 4 – 1,970 Sq Ft Modern 2-Story House Plan with 3 Bedrooms and 2.5 Bathrooms – 72907C
7
Concept
Construction documents are prepared for the following countries:

1,970 Sq Ft Modern 2-Story House Plan with 3 Bedrooms, 2.5 Bathrooms and 1-Car Garage

Plan
72907C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
1970
Total Heated ft²
2 + 1
Baths + 1/2 Baths
3 + 0
Beds + Home Office
1
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

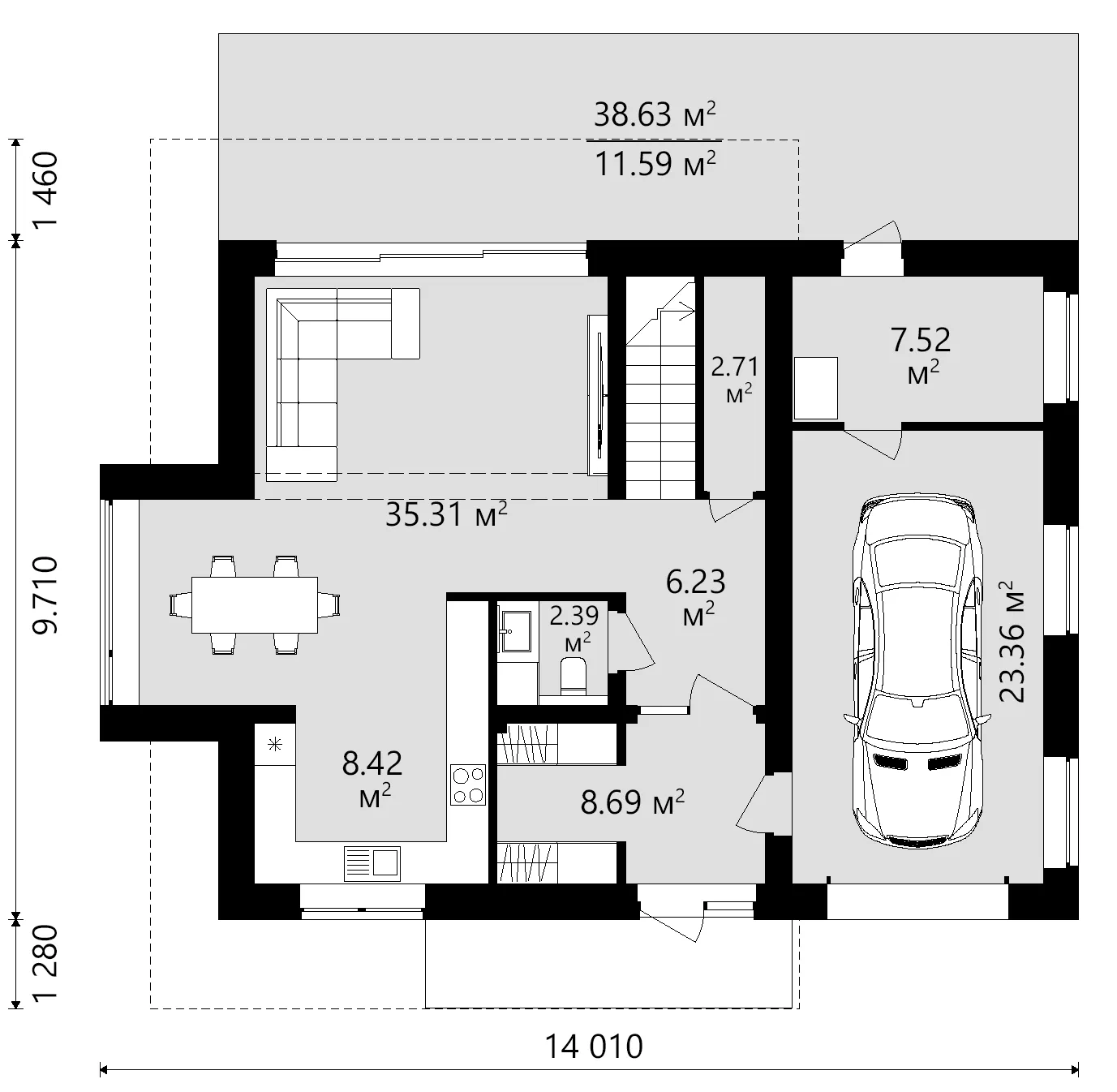

Main Floor
Main Floor 12 – 1,970 Sq Ft Modern 2-Story House Plan with 3 Bedrooms and 2.5 Bathrooms – 72907C

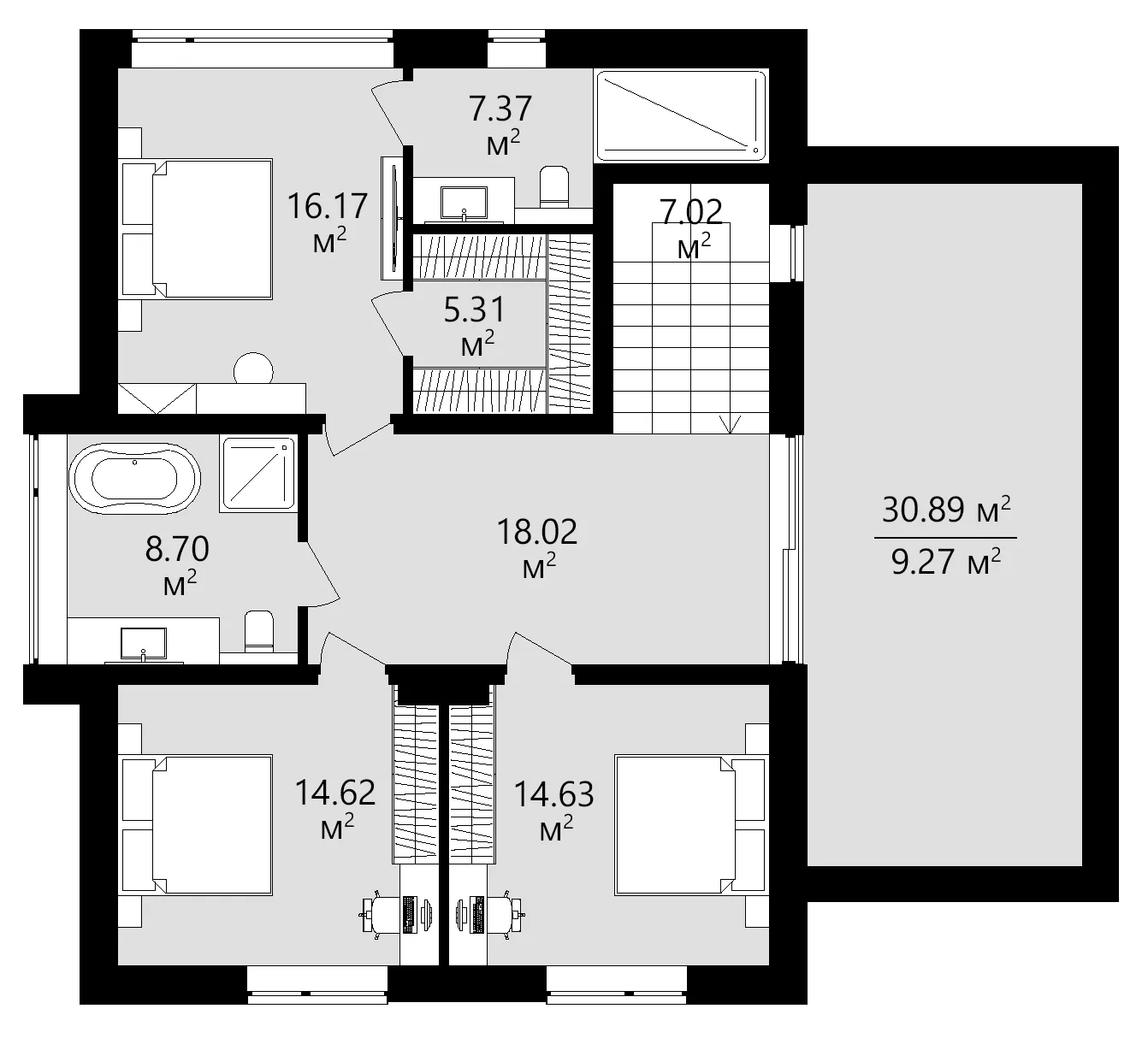

Second Floor
Second Floor 13 – 1,970 Sq Ft Modern 2-Story House Plan with 3 Bedrooms and 2.5 Bathrooms – 72907C
Full Specs & Features
Area
Total Unheated: 251.44 ft²
Total Heated: 1970.23 ft²
Dimensions
Depth: 37'9" ft
Width: 42'7" ft
Height: 23'6" ft
Garage
Area: 251 ft²
Cars: 1
Attached
Front Entry
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Wood
Stucco
Flexible Ceramic
Rooms
Full bathrooms: 2
Half bathrooms: 1
Bedrooms: 3
Utility room
Entry
Storage
Walk In Closet
Kitchen and Dining
Breakfast Nook
Interior Features
Second Floor Master
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Exterior Features
Balcony
Deck
Garage rooftop deck
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Contemporary
European
Modern
Roof
Roof Area: 1058.52 ft²
Flat

Plan 72907C is a 3-bedroom, 3-storey house plan with 1,970 Sq Ft of space beneath a flat roof, shaped in a modern European idiom with contemporary lines and a precise high-tech character. Among house plans Canada families look at for a design that feels current, this single-family residence stands out for a facade that layers wood, stucco and flexible ceramic. The footprint is 42'7" wide and 37'9" deep, and the house reaches a height of 23'6". Its walls are built of aerated concrete, with ceramic block or silicate block walls offered as alternatives on request.

The outdoor spaces are what set this flat roof house plan apart. The attached, front-entry garage holds one car, and its roof becomes a garage rooftop deck, an open-air terrace raised above the driveway. A balcony and a separate deck add more places to sit outside, so a summer breakfast or a late conversation can move out of doors easily. On the elevations, large windows and floor-to-ceiling windows give the home design its glassy, light-filled look. The house rests on strip footings, with slab and concrete block foundations available as options; there is no basement.

Step through the entry and the interior opens up in an open concept layout, where the living areas flow together instead of being divided into separate rooms. The large family room is the natural centre of daily life, generous enough for a sectional, a reading corner and children spread out with a board game. The kitchen includes a breakfast nook, a relaxed spot for weekday mornings that keeps the formal table free. With tall glazing along the main rooms, daylight reaches well into the house through much of the day.

The three bedrooms are clustered together, which keeps parents and children within easy reach of one another. The master bedroom sits on the second floor and has its own walk-in closet. Two full bathrooms and a half bathroom cover the needs of the family and visitors without morning queues. A utility room handles laundry and household equipment, while dedicated storage keeps seasonal gear and everyday clutter out of the living spaces, rounding out a practical 3-storey house plan for a growing household.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.
