Concept
Construction documents are prepared for the following countries:

2,439 Sq Ft Minimalism H-Shaped Single-Story House Plan with Basement, 3 Bedrooms, 3 Bathrooms and Carport

Plan
63652C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
2439
Total Heated ft²
3 + 0
Baths + 1/2 Baths
3 + 0
Beds + Home Office
2
Cars (Carport)
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

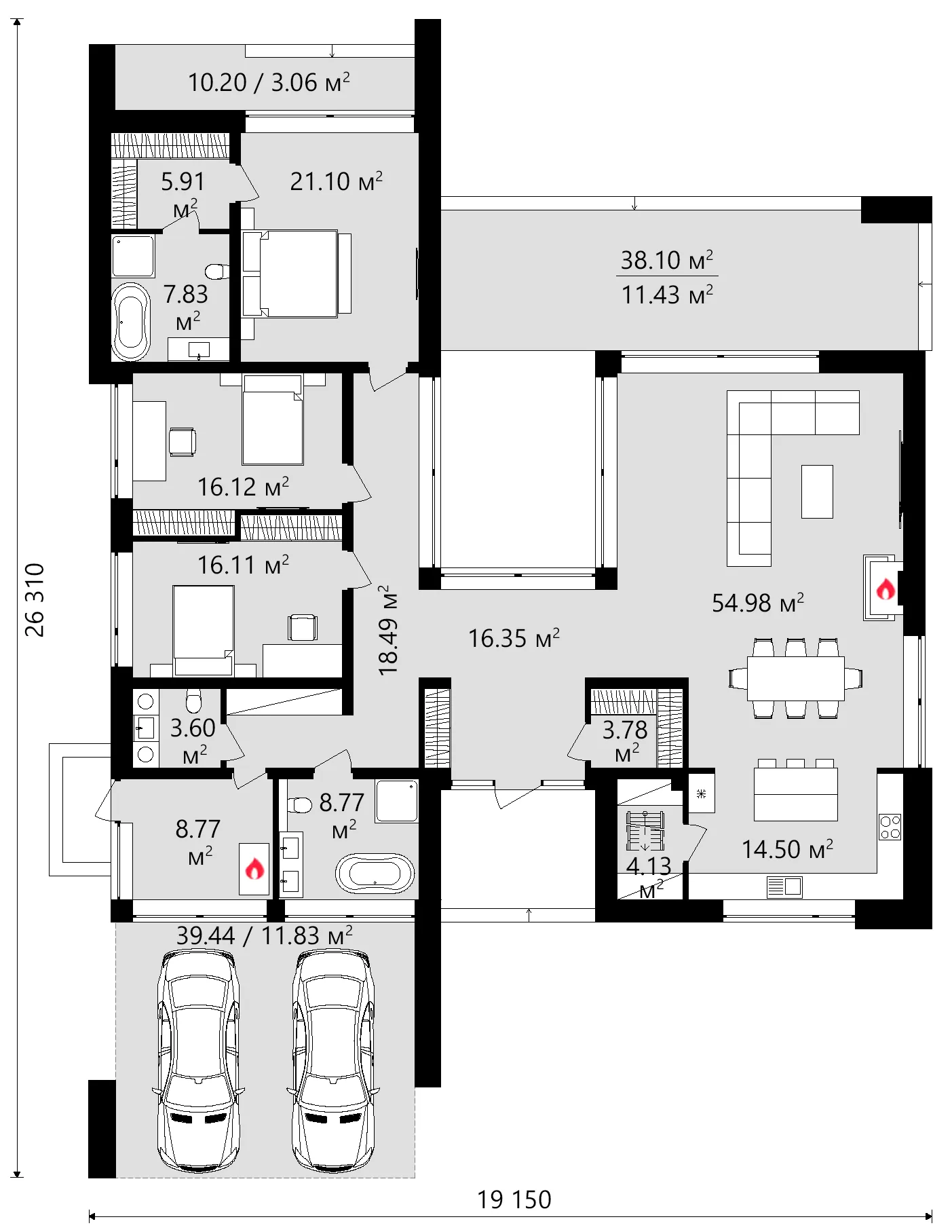

Main Floor
Main Floor 12 – 2,439 Sq Ft Minimalism Single-Story House Plan with Basement, 3 Bedrooms and 3 Bathrooms – 63652C
Basement
Basement 13 – 2,439 Sq Ft Minimalism Single-Story House Plan with Basement, 3 Bedrooms and 3 Bathrooms – 63652C
Full Specs & Features
Area
Basement: 192.46 ft²
Total Unheated: 192.46 ft²
Total Heated: 2439.1 ft²
Dimensions
Depth: 80'2" ft
Width: 58'4" ft
Height: 14'9" ft
Garage
Cars: 2
Carport
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block (Optional)
Ceramic Block (Optional)
Calcium silicate block (Optional)
Piwnica
Exterior Wall Materials
Wood
Stucco
Rooms
Full bathrooms: 3
Bedrooms: 3
Utility room
Entry
Storage
Walk In Closet
Kitchen and Dining
Walk-in Pantry
Breakfast bar
Breakfast Nook
Island
Interior Features
Main Floor Master
Clustered Bedrooms
Open Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Courtyard
Covered Rear Porch
Panoramic Windows
Window Walls
Large Windows
Floor-to-Ceiling Windows
Architectural Style
Contemporary
Minimalism
Modern
Roof
Roof Area: 3901.49 ft²
Flat

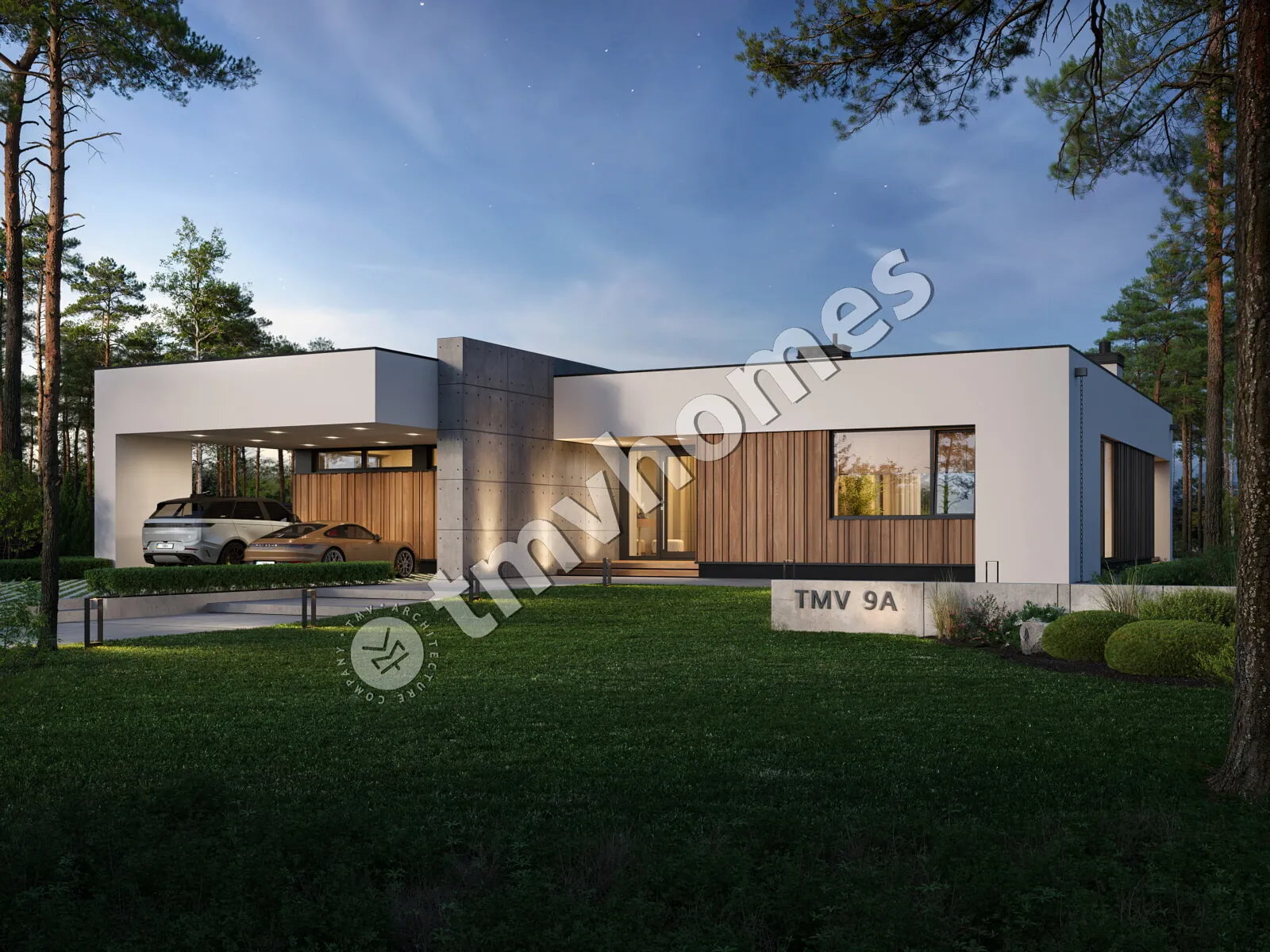

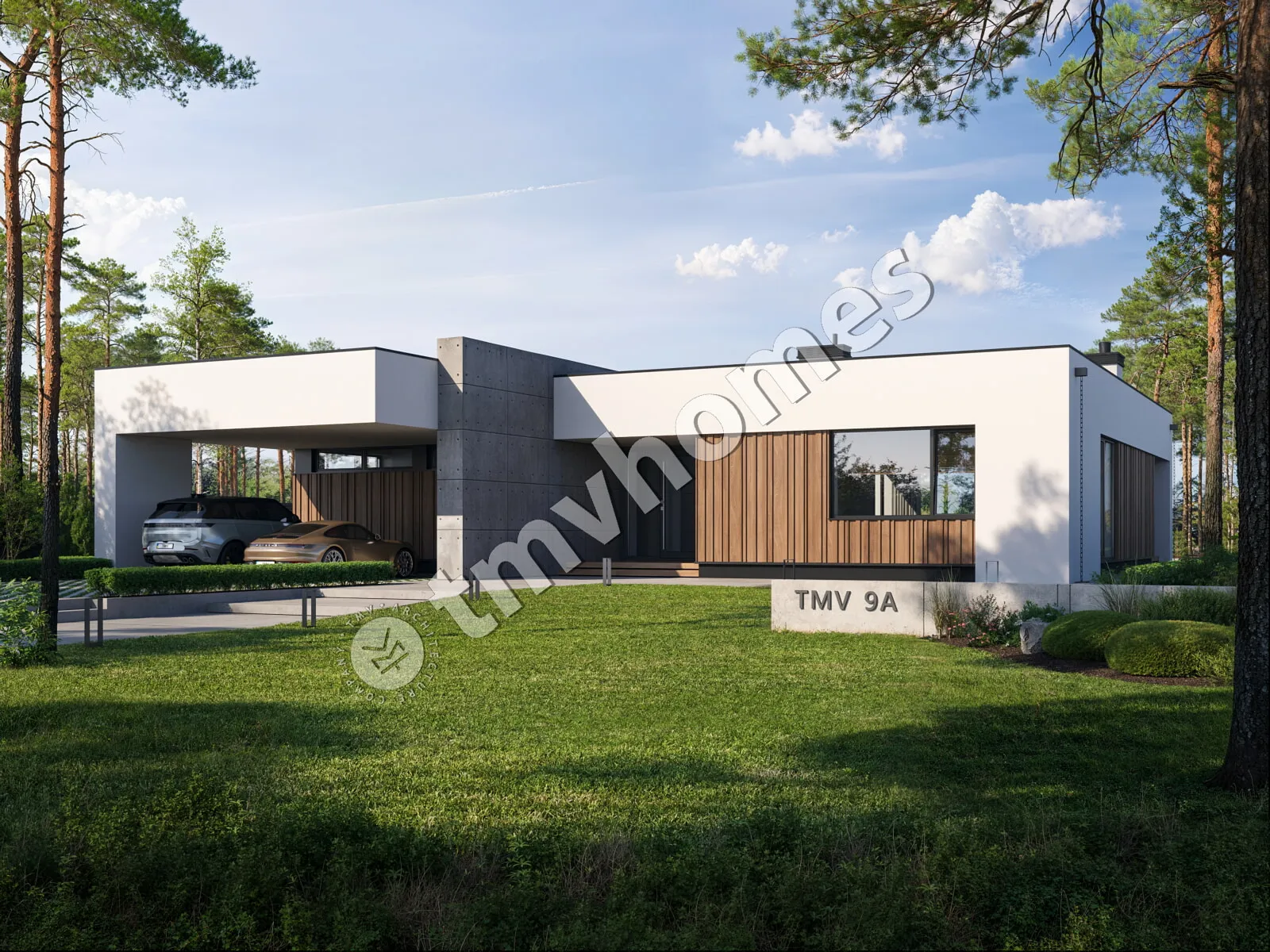

House design concept 63652C is a Minimalism single-story, H-shaped single-family home with a basement, a total heated area of 2,439 Sq Ft, 3 bedrooms and 3 bathrooms, designed for 3-4 people. The H-shaped footprint, 58'4" wide and 80'2" deep, is covered by a flat roof and finished in stucco and wood, which gives the house a clean, calm outline. A carport for two cars sits beside the house.

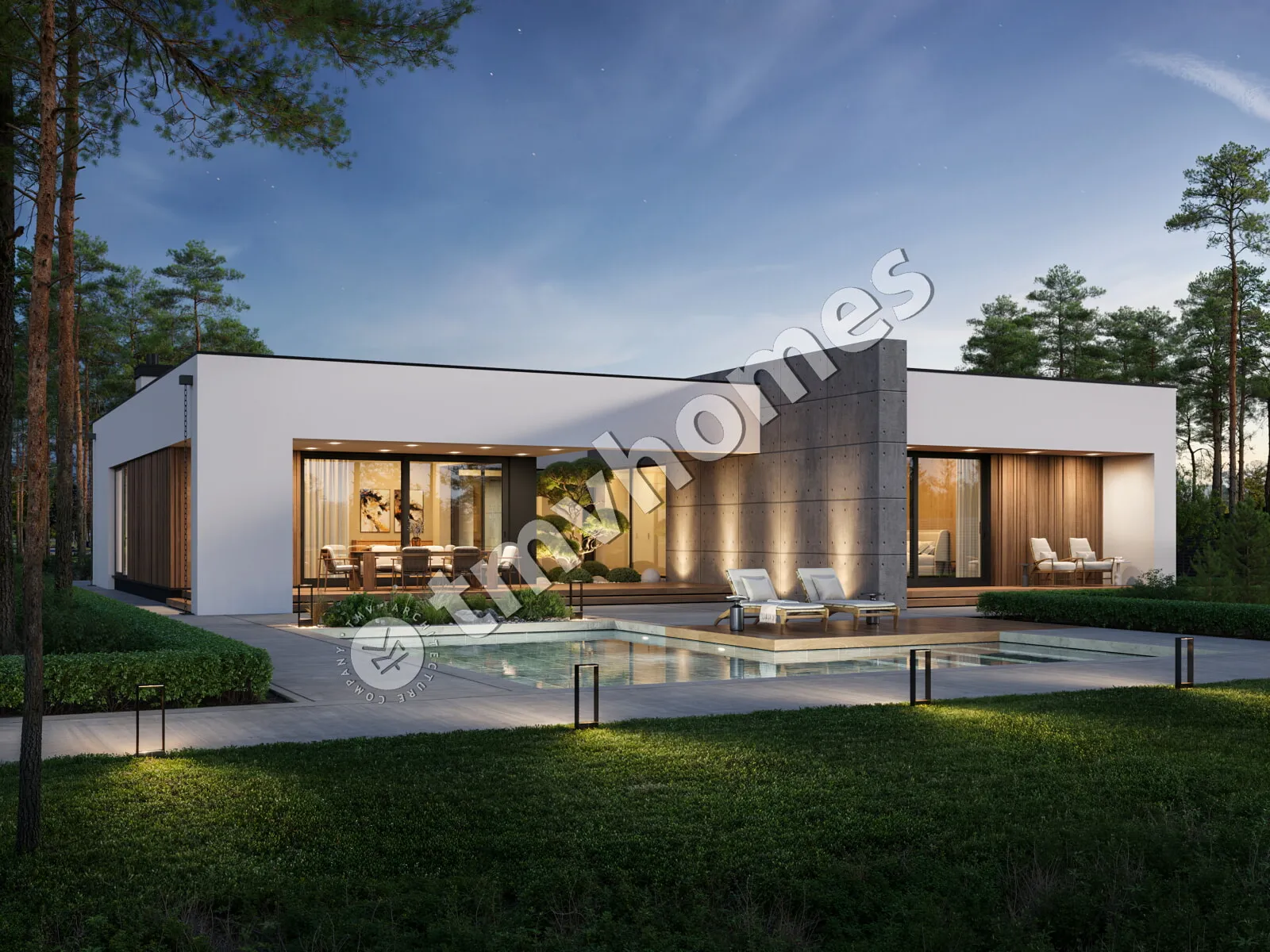

The entry leads into an open floor plan where a large great room and a large kitchen share one space. The kitchen has an island, a breakfast bar and a breakfast nook for everyday meals, while a walk-in pantry keeps supplies out of sight. Panoramic windows, window walls and floor-to-ceiling windows fill the day zone with daylight and open views to the covered rear porch.

All bedrooms are on one level and clustered together, which keeps parents close to the children. The main floor primary suite includes a walk-in closet, and three full bathrooms shorten the morning wait. A utility room and storage keep household equipment in order.

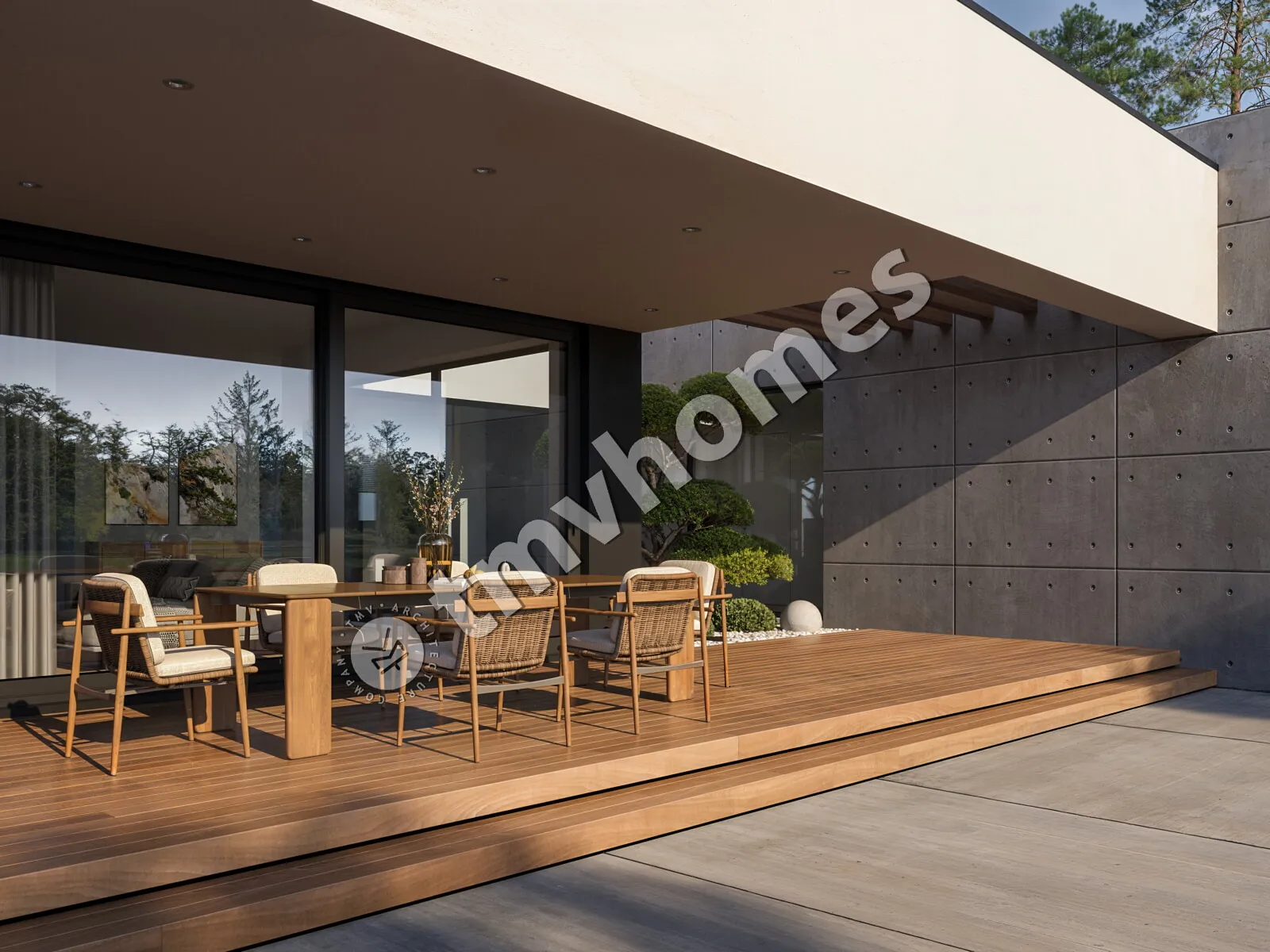

The covered porch gives shelter from sun and rain, and the courtyard creates a private outdoor spot for relaxing. The basement adds extra space below the main floor. The house rests on continuous footings, with a slab or block foundation as options, and the walls can be built from aerated concrete, ceramic block or sand-lime block. In figures: total heated area 2,439 Sq Ft, 3 bedrooms, 3 bathrooms and a 2-car carport.

The concept is supplied as a DWG+PDF file: you hand it to a local architect, who prepares the Construction Documents to the codes and standards of your area.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept (Metric)
CA$1590
Subtotal
Payment Protection: Plansplace releases your payment to the seller only after your plan set is delivered, digitally or in print.
Local Architects
Offers from your local architects who are ready to develop construction documents based on the digital concept.
