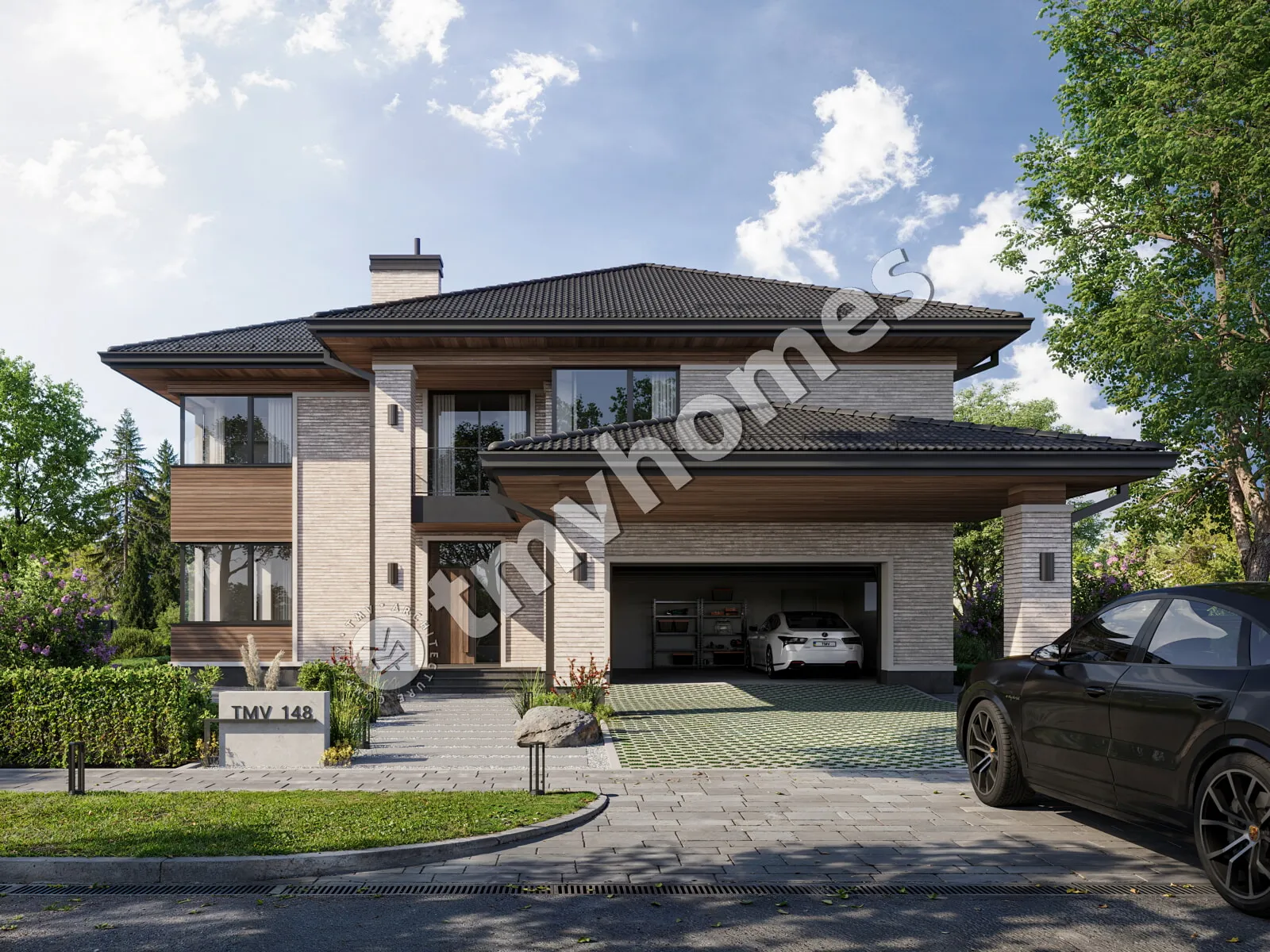

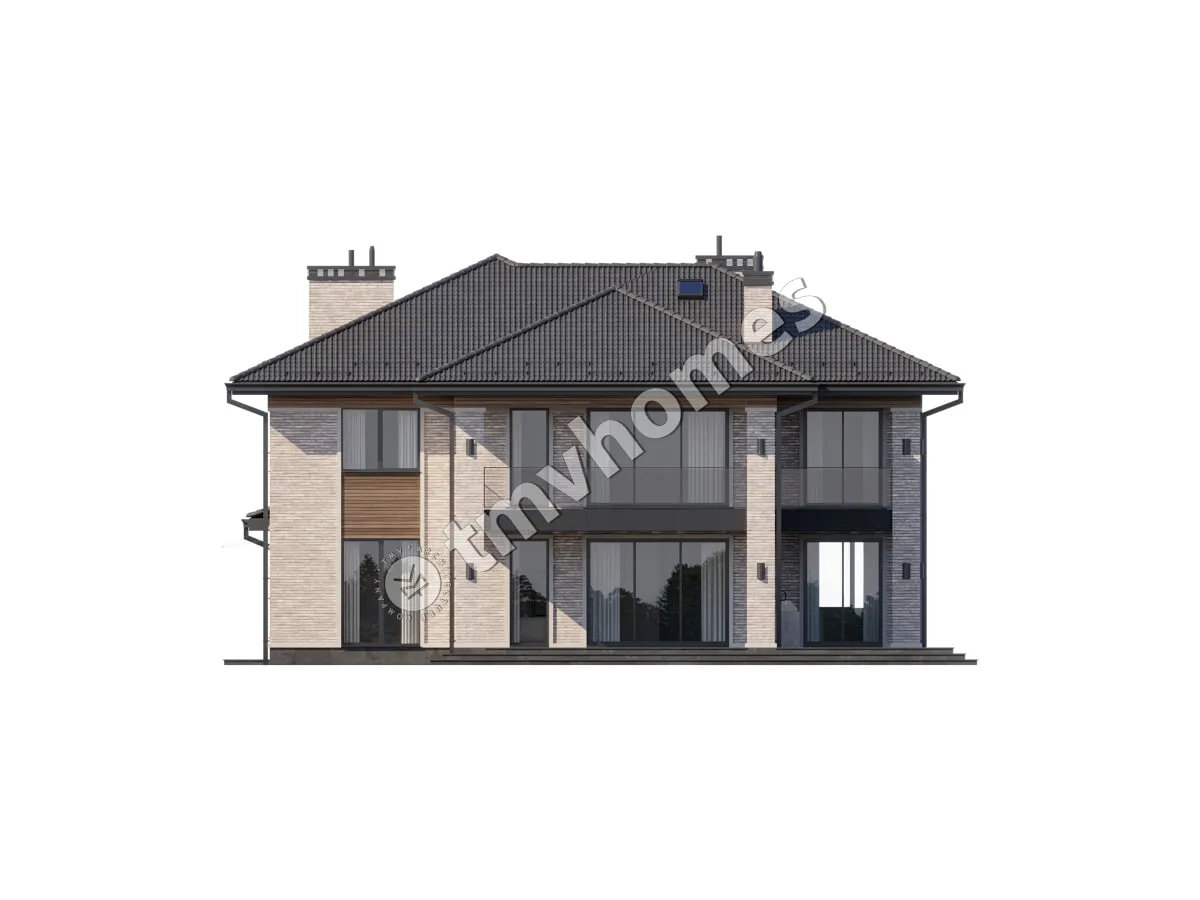

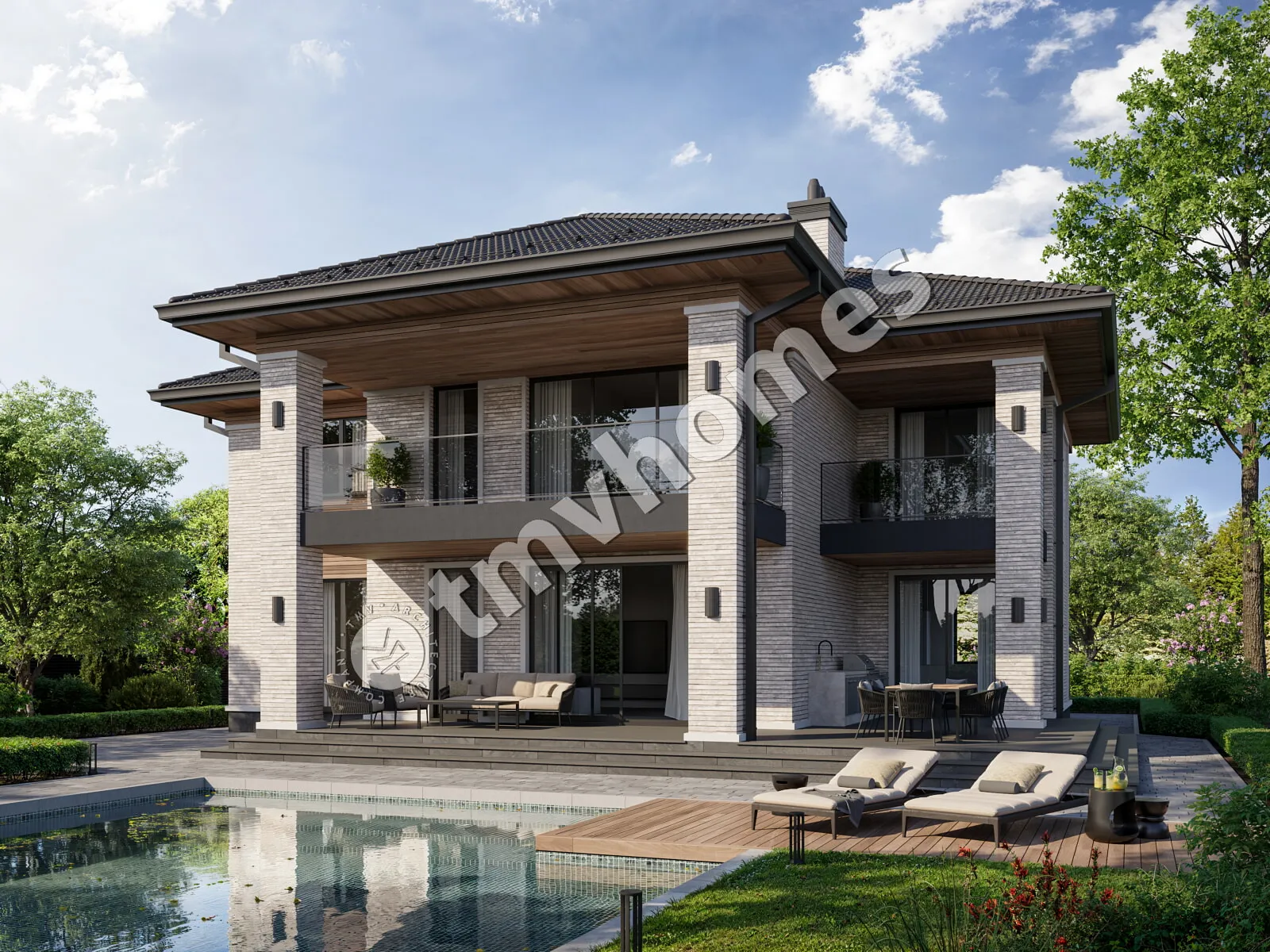

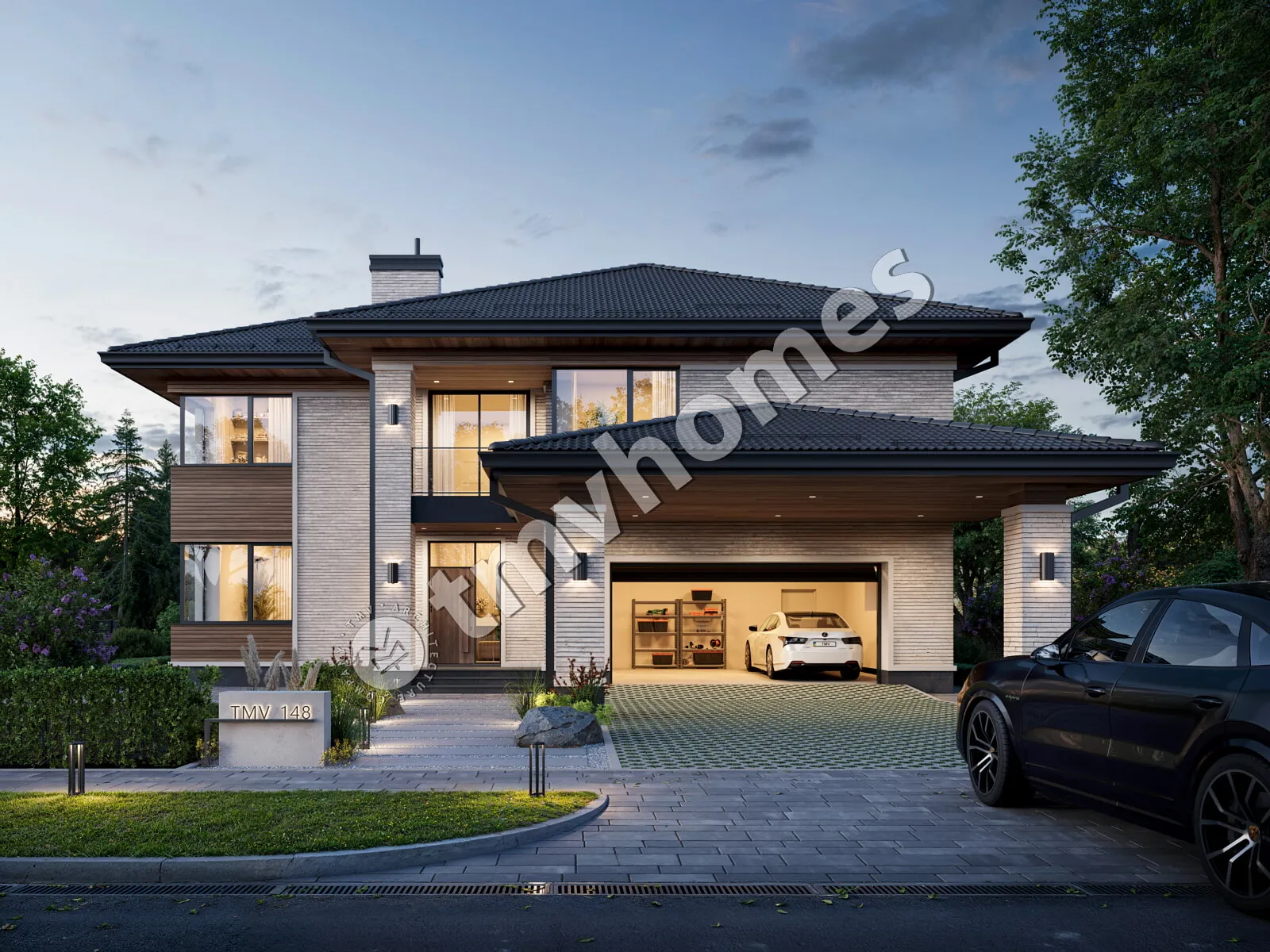

Renderings 2 – 3,335 Sq Ft Traditional 2-Story House Plan with 4 Bedrooms and Carport – 50112C

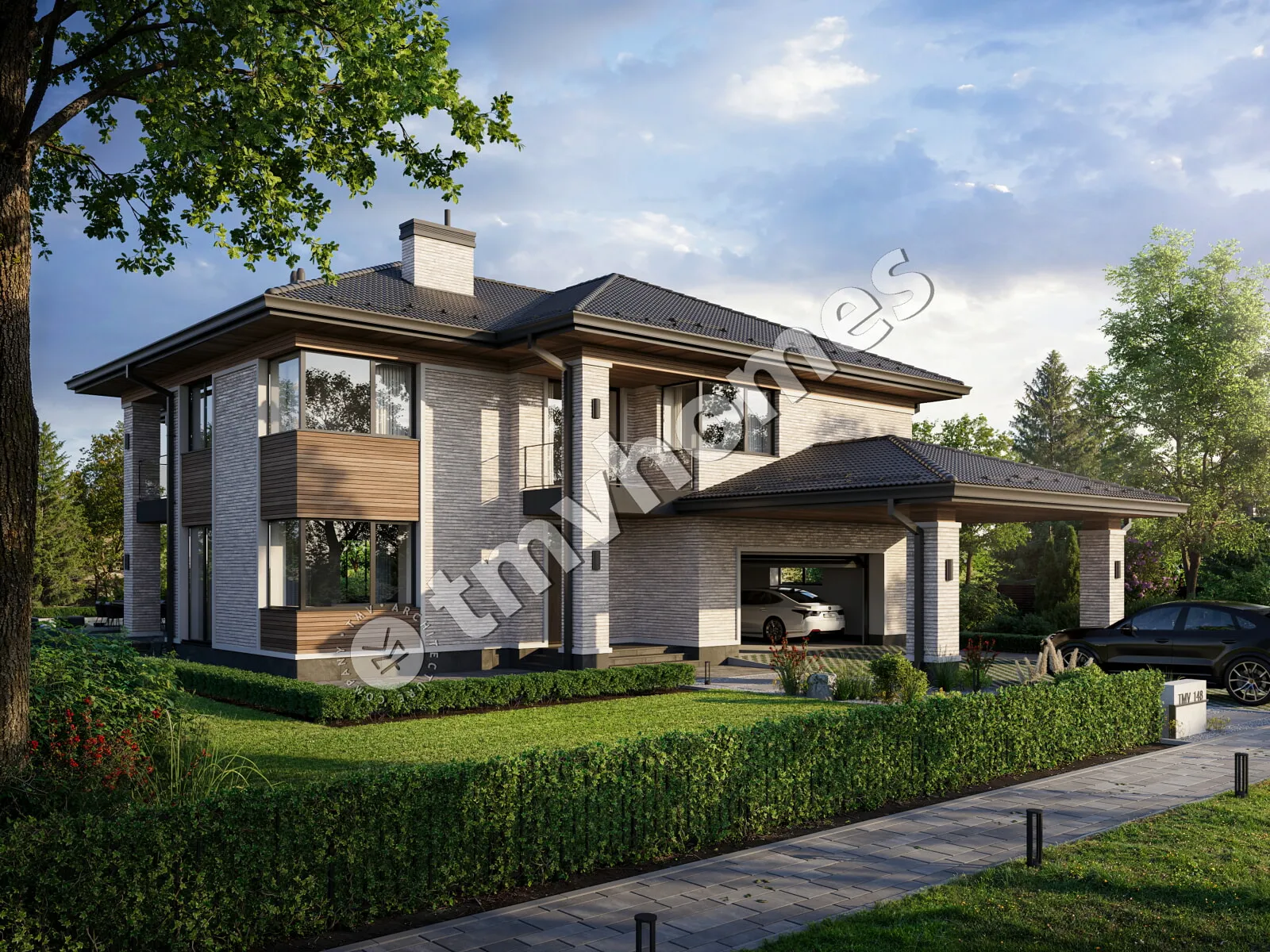

Renderings 6 – 3,335 Sq Ft Traditional 2-Story House Plan with 4 Bedrooms and Carport – 50112C Renderings 11 – 3,335 Sq Ft Traditional 2-Story House Plan with 4 Bedrooms and Carport – 50112C
7
Concept
Construction documents are prepared for the following countries:

3,335 Sq Ft Traditional 2-Story House Plan with 4 Bedrooms, 3 Bathrooms and Carport

Plan
50112C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
3335
Total Heated ft²
3 + 0
Baths + 1/2 Baths
4 + 1
Beds + Home Office
2
Cars (Carport)
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

You have two options for modifying this house plan:

1. Order modifications from the original architect. Purchase the modified Digital Concept and send it to your local architect to prepare the Construction Documents.

2. Work with your local architect. Purchase the original Digital Concept without modifications, then ask your local architect to make the changes and prepare the Construction Documents.

Floor Plans

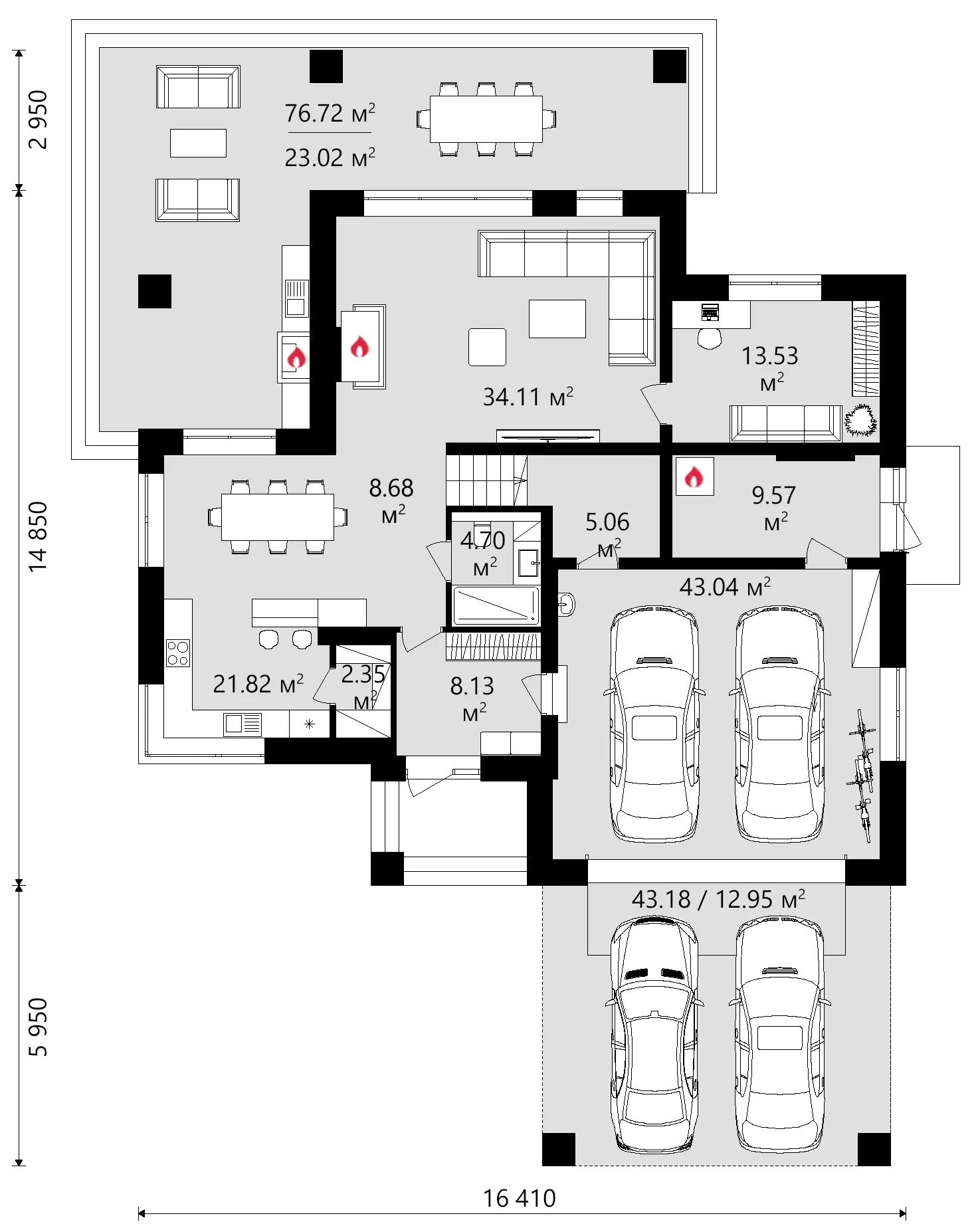

Main Floor
Main Floor 7 – 3,335 Sq Ft Traditional 2-Story House Plan with 4 Bedrooms and Carport – 50112C

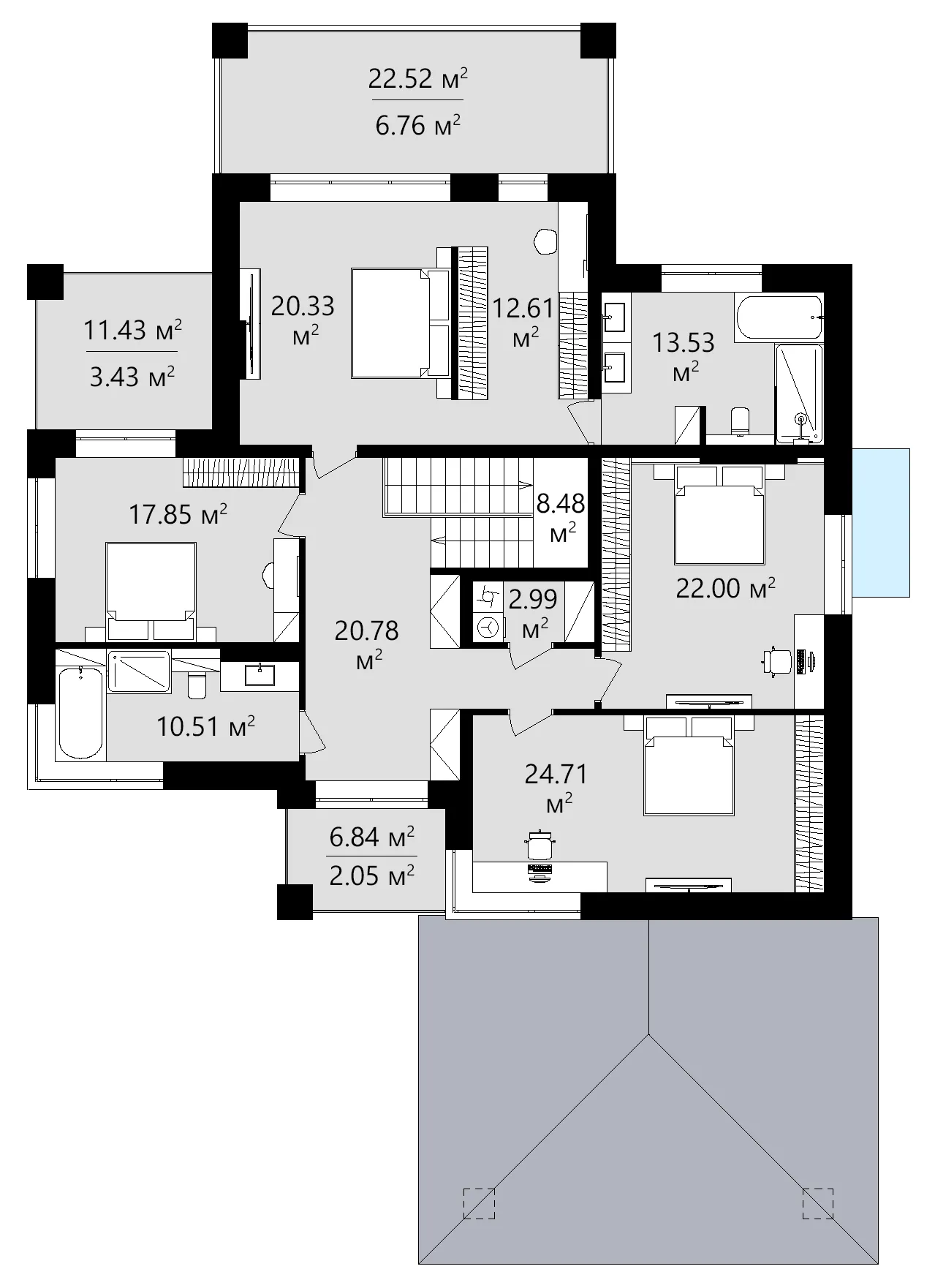

Second Floor
Second Floor 9 – 3,335 Sq Ft Traditional 2-Story House Plan with 4 Bedrooms and Carport – 50112C
Full Specs & Features
Area
Total Unheated: 463.28 ft²
Total Heated: 3335.2 ft²
Dimensions
Depth: 72'4" ft
Width: 49'7" ft
Height: 31'5" ft
Garage
Area: 463 ft²
Cars: 2
Carport
Front Entry
Foundation
Concrete Stem Wall
Slab (Optional)
Block Stem Wall (Optional)
Exterior Wall Framing
Aerated Concrete Block
Ceramic Block (Optional)
Calcium silicate block (Optional)
Exterior Wall Materials
Brick
Rooms
Full bathrooms: 3
Bedrooms: 4
Utility room
Laundry
Entry
Home Office
Storage
Kitchen and Dining
Walk-in Pantry
Breakfast bar
Breakfast Nook
Corner Window
Interior Features
Laundry Second Floor
Fireplace in Family Room
Second Floor Master
Clustered Bedrooms
Closed Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Exterior Features
Balcony
Outdoor Fireplace
Outdoor Kitchen
Stacked Porches
Covered Rear Porch
Corner Window
Large Windows
Floor-to-Ceiling Windows
Architectural Style
European
Prairie
Traditional

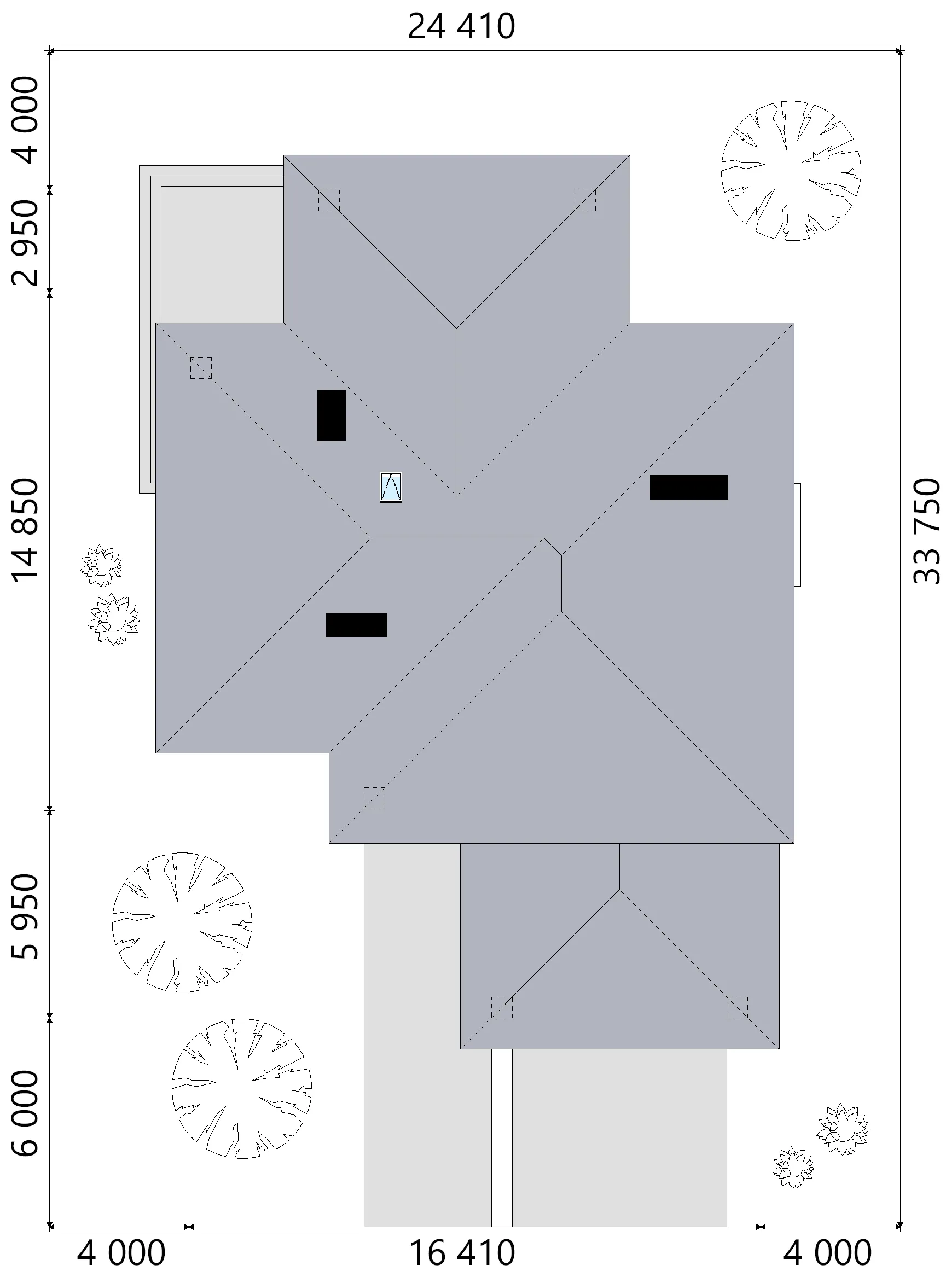

Roof
Roof Area: 4372.30 ft²
Hip & Valley
Roof Pitch: 6/12 (26°)

Plan 50112C is a 4-bedroom 3-storey house plan of 3,335 Sq Ft, finished in brick and topped by a hip and valley roof with a 6/12 pitch, its character drawn from European, Prairie and Traditional styles. At 49'7" wide and 72'4" deep, and standing 31'5" high, this single-family home design pairs a dignified facade with large windows, a corner window and floor-to-ceiling glazing that keep it from feeling heavy. Four bedrooms and three full bathrooms share the three levels, which makes it a strong candidate for families comparing house plans Canada-wide for a generous, well-ordered residence.

The private side of the home is arranged with daily routines in mind. The bedrooms are grouped in a clustered layout, and the master suite is placed on the second floor, with the laundry on that same level, so no one has to carry baskets up and down a flight of stairs. All three bathrooms are full ones, a real advantage when four bedrooms are getting ready at the same hour. A utility room looks after the household systems, while dedicated storage gives luggage, sports equipment and seasonal décor a place of their own.

The living areas follow a closed floor plan, giving each room defined walls and a clear purpose. Visitors arrive through a proper entry before reaching the large family room, where a fireplace forms the natural centre of the household on quiet evenings. The large kitchen is planned for serious cooking and easy family meals alike: a walk-in pantry holds groceries in bulk, a breakfast bar serves quick lunches and after-school snacks, and a breakfast nook framed by a corner window catches the morning light. As a house plan with home office, it also sets aside a separate room for remote work, household accounts or study.

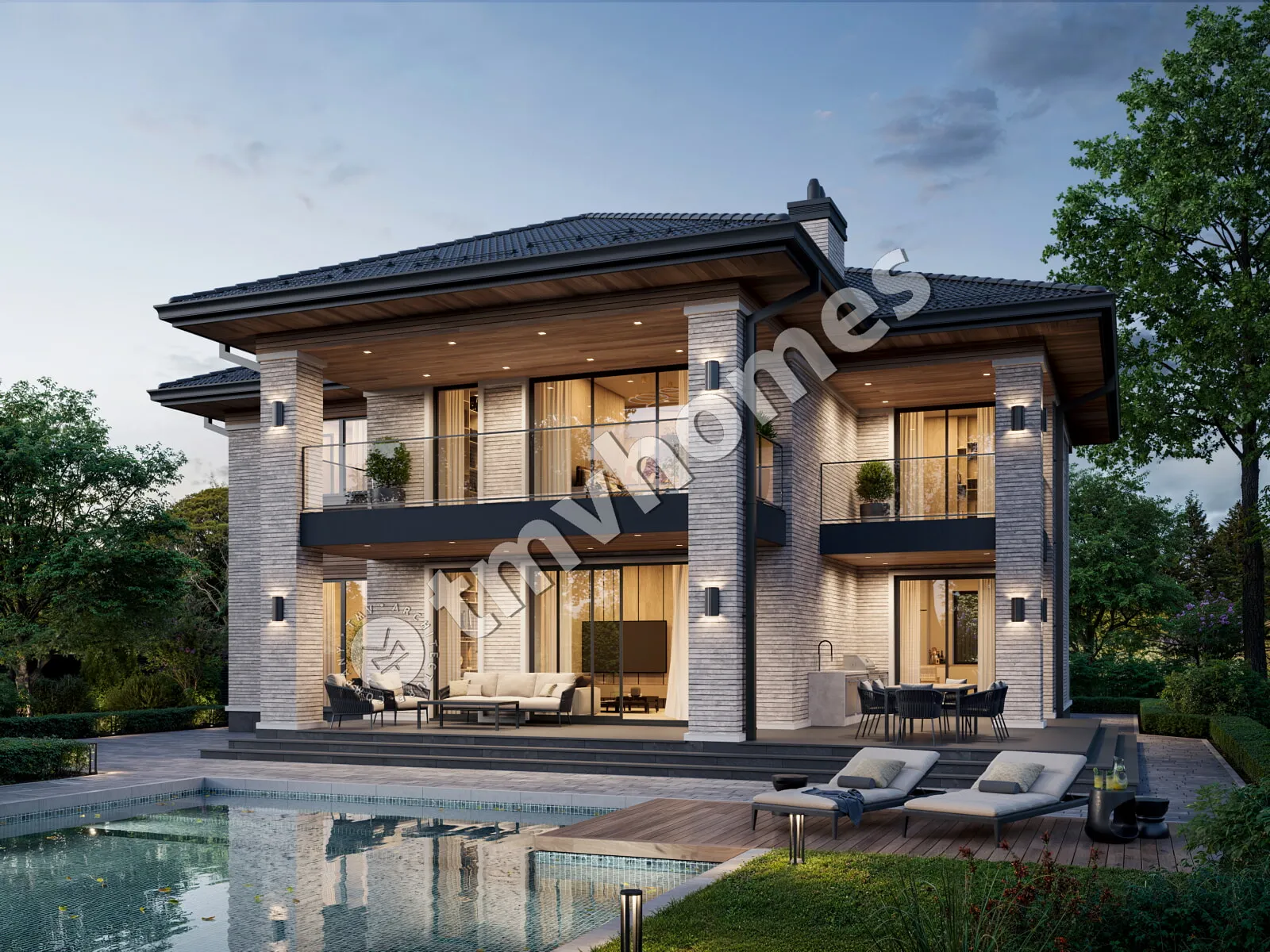

Outside, the design adds living space well beyond its brick walls. Stacked porches give covered outdoor areas on more than one level, a covered rear porch shelters relaxed meals, and the outdoor kitchen and outdoor fireplace turn the back of the house into a place to host friends late into the evening. A balcony gives the upper storey its own breath of fresh air. A front-entry carport provides cover for two cars. The home has no basement and rests on strip footings, with exterior walls built of aerated concrete block. On request, the plan can be adapted to a slab or a concrete block foundation, and the walls can be specified in clay block or sand-lime block.

Architect
TMV Homes TMV Homes Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept (Metric)
CA$2387
Subtotal
Payment Protection: Plansplace releases your payment to the seller only after your plan set is delivered, digitally or in print.
Local Architects
Offers from your local architects who are ready to develop construction documents based on the digital concept.
