3-Story House Plan 3026 ft²: 5 Beds, 4.5 Baths, Open Floor Plan, without Garage

Plan
13197R
Complete
Unsigned & Unsealed
DC Available
Key Specs
3026
Heated ft²
4 + 1
Baths + 1/2 Baths
5 + 0
Beds + Home Office
0
Cars
Canada United States
General & Documentation

Cover Sheet (Includes Front Perspective & Project Data)

General Construction Notes (Specifications & Standards)

Index of Drawings (Sheet List)

Architectural (A)

Floor Plans

Structural (S)

Foundation/Basement Plan

Electrical (E)

Electrical Plans

General & Documentation

Cover Sheet (Includes Front Perspective & Project Data)

General Construction Notes (Specifications & Standards)

Index of Drawings (Sheet List)

Architectural (A)

Floor Plans

Exterior Elevations

Overhead Roof Plan

Cross Sections

Stair Details

Miscellaneous Details

Structural (S)

Foundation/Basement Plan

Electrical (E)

Electrical Plans

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

Floor Plans
Main Floor
Main Floor 20 – 3-Story House Plan 3026 ft², 5 Beds — 13197R
Second Floor

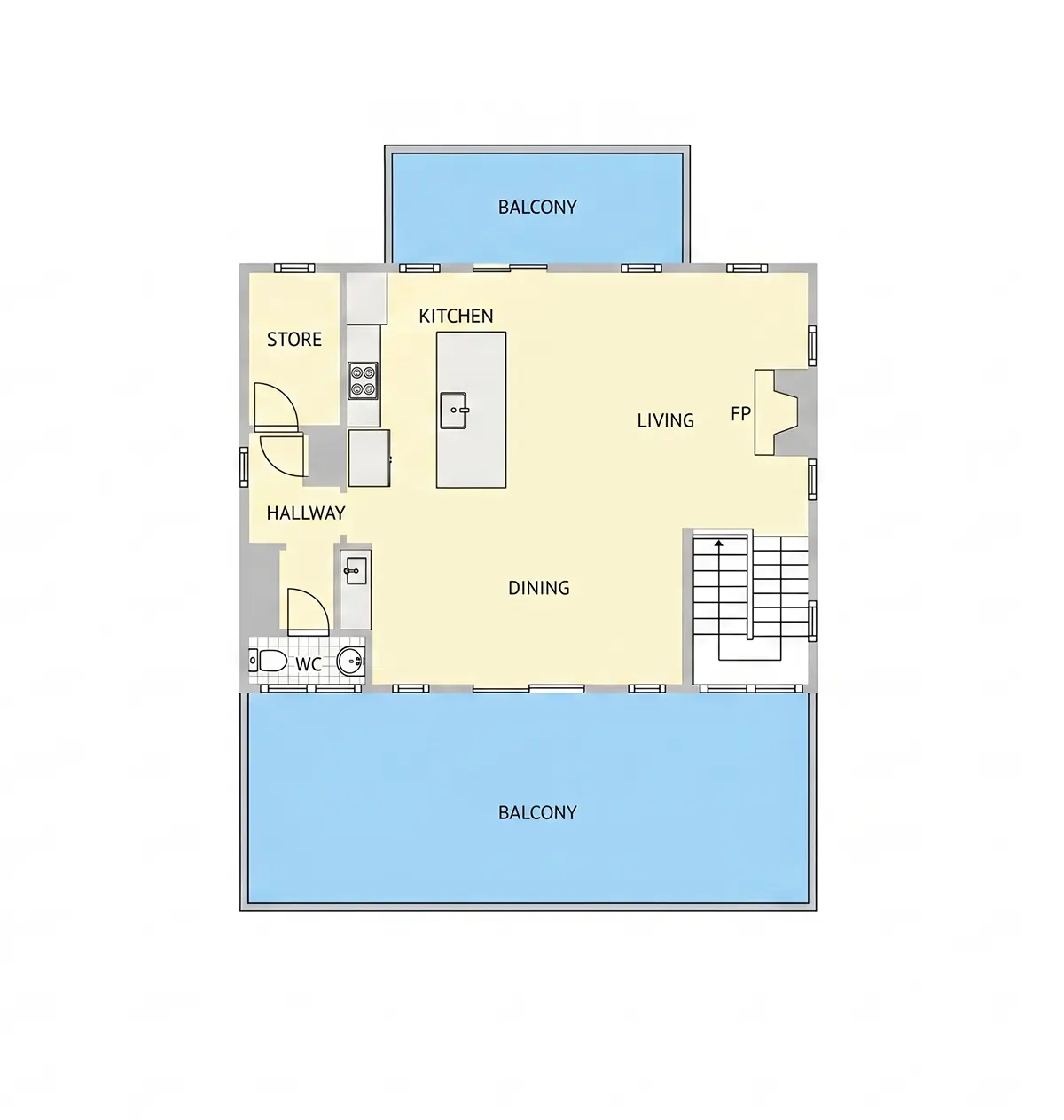

Second Floor 21 – 3-Story House Plan 3026 ft², 5 Beds — 13197R
Full Specs & Features
Area
Heated: 3026.00 ft²
Unheated: 1195.00 ft²
Dimensions
Depth: 55'8" ft
Width: 51'4" ft
Foundation
As Shown
Crawl Space (Optional)
Slab (Optional)
Monolithic Slab (Mono) (Optional)
Stem Wall (Optional)
Basement (Optional)
Exterior Wall Framing
As Shown
2×6 Exterior Walls (Optional)
Exterior Wall Materials
Siding
Rooms
Full bathrooms: 4
Half bathrooms: 1
Bedrooms: 5
Laundry
Entry
Kitchen and Dining
Walk-in Pantry
Breakfast bar
Breakfast Nook
Island
Rear Kitchen
Interior Features
Laundry On Main Floor
Fireplace in Family Room
Main Floor Master
Clustered Bedrooms
Open Floor Plan
Reverse Living
Exterior Features
Balcony
Stacked Porches
Covered Front Porch
Architectural Style
Coastal
American
Roof
Hip

Designed as a 4-storey coastal house plan with 5 bedrooms, Plan 13197R offers 3026 ft² under a hip roof, finished in siding and raised on an elevated form. This home design pairs relaxed coastal character with classic American proportions, and its footprint measures 51'4" wide and 55'8" deep. Four full bathrooms and one half bathroom serve this single-family residence, and a reverse living arrangement lifts the shared rooms to an upper level of the house.

The sleeping quarters balance privacy with convenience. The master suite is on the main floor, close to the rhythm of daily life, while the remaining bedrooms are grouped together in a cluster, an arrangement many parents of young children prefer. With four full baths, each part of the house has a bathroom within easy reach, and the powder room takes care of guests without opening up private spaces. A defined entry receives arrivals with their coats, boots and bags, and the laundry room on the main floor keeps washing day on the same level as the master suite, with no baskets carried up and down the stairs.

The living level follows an open floor plan, with the family room and kitchen flowing into one another so conversation carries easily between them. A fireplace in the family room gives the space a focal point for quiet weekends and long evenings at home. The kitchen sits at the rear of the plan and is fitted with a centre island topped by a breakfast bar, a separate breakfast nook for sit-down meals, and a walk-in pantry for groceries and small appliances. Placing these everyday rooms higher in the house gives the family's favourite spaces the most open outlook the home can offer.

Outdoor living is layered across the elevation: stacked porches give several levels their own place in the fresh air, a balcony adds another vantage point, and a covered front porch welcomes visitors before they reach the door. The plan is drawn on the foundation as shown, with crawl space, slab, monolithic slab, stem wall and basement foundations available on request, along with 2×6 exterior walls for the framing. For families browsing house plans Canada for an elevated coastal home with an open concept living floor and a fireplace, this 5-bedroom design makes generous use of every storey.
