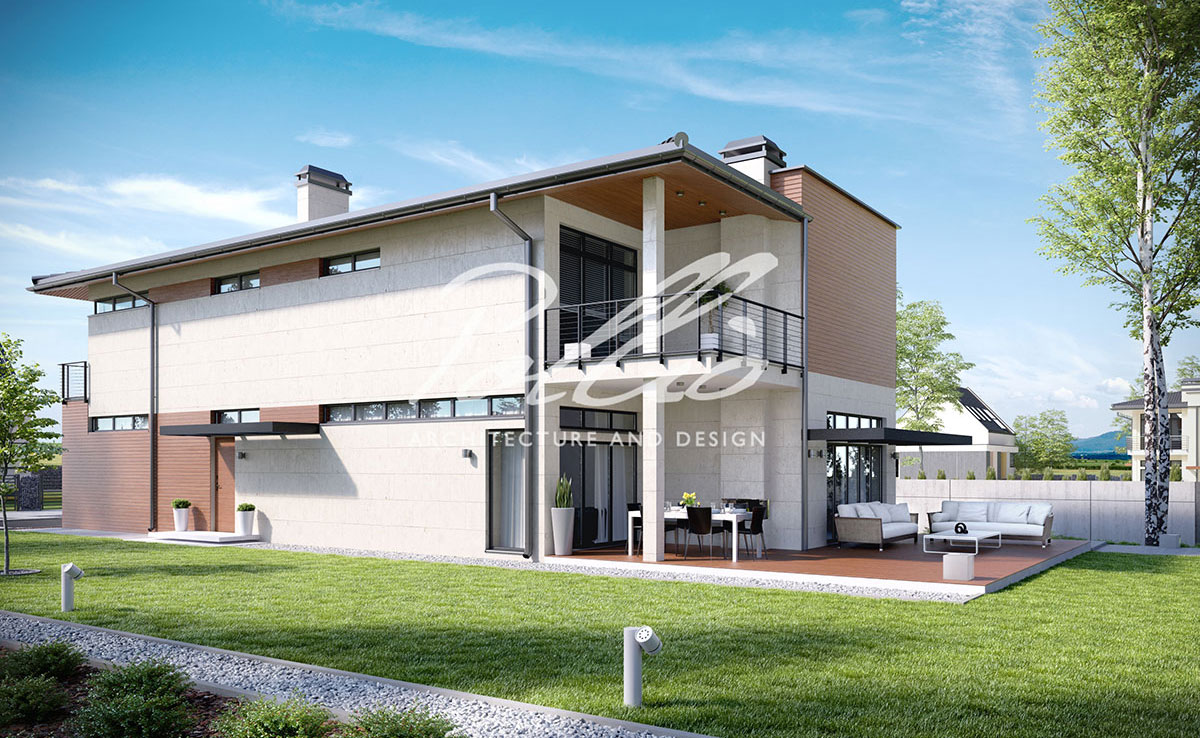

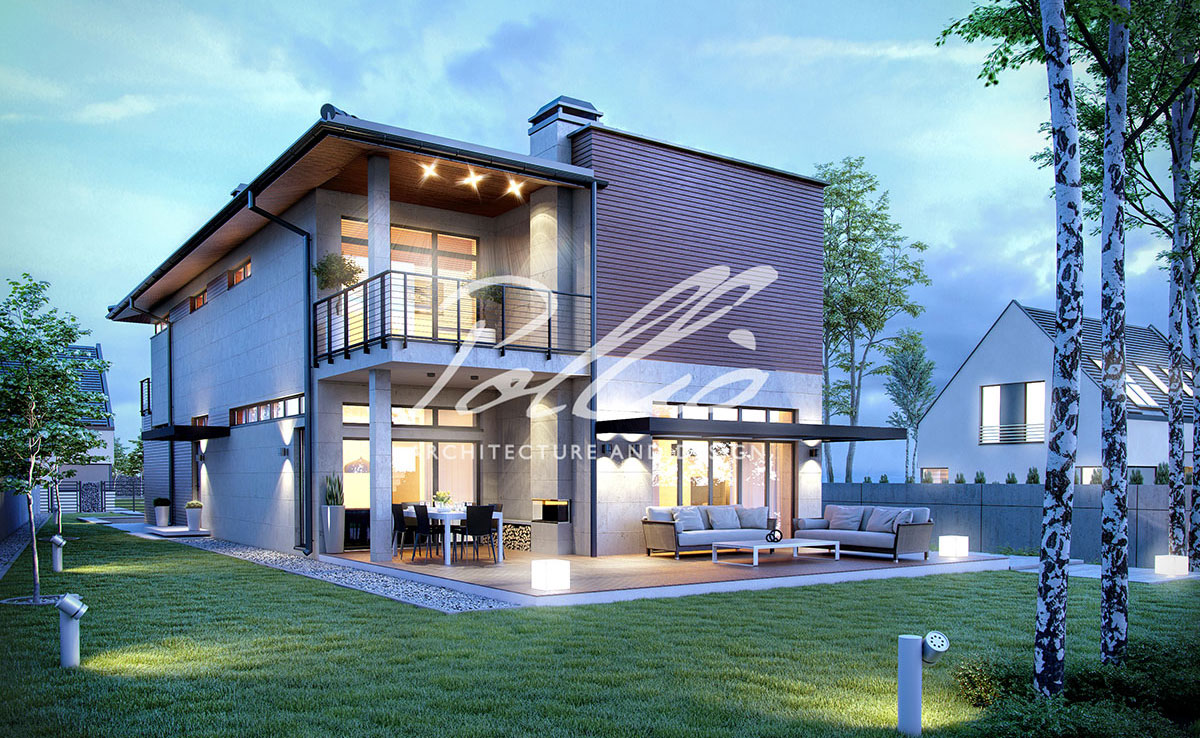

House Plan: 2083 ft², 2 Stories, 3 Beds, Home Office, 3 Baths
House Plan: 2083 ft², 2 Stories, 3 Beds, Home Office, 3 Baths House Plan: 2083 ft², 2 Stories, 3 Beds, Home Office, 3 Baths
6
Concept
Construction documents are prepared for the following countries:

House Plan: 2083 ft², 2 Stories, 3 Beds, Home Office, 3 Baths

Plan
83714C
Lead time 30 days
Signed & Sealed
DC Available
Key Specs
194
Total Heated m²
3 + 0
Baths + 1/2 Baths
3 + 1
Beds + Home Office
0
Cars
Projekt Architektoniczny

Opis techniczny

Rzuty kondygnacji

Rzut więźby dachowej

Rzut dachu

Przekroje

Elewacje

Zestawienie stolarki okiennej i drzwiowej

Projekt Konstrukcyjny

Zawiera opis techniczny

Rzuty fundamentów

Płyty stropowe w skali

Rysunki detali konstrukcyjnych

Zbrojenie słupów

Zbrojenie wieńców

Zbrojenie nadproży

Zestawienie stali konstrukcyjnej

Zestawienie drewna na więźbę

Projekt Instalacji

Instalacja wodno-kanalizacyjna

Instalacja ogrzewania

Instalacja gazowa

Instalacja elektryczna

Need to make some changes?

This house plan can be modified to fit your family’s lifestyle and your lot’s specifics.

The architect of this plan is not from your country.

If you would like to modify this house plan, you have two options:

1. Modifications by the Original Architect: Work directly with the original architect to purchase a modified digital concept, then forward it to your local architect to order the construction documents.

2. Modifications by Your Local Architect: Purchase the digital concept as-is, work with your local architect to make changes, and then proceed with ordering the construction documents.

Floor Plans

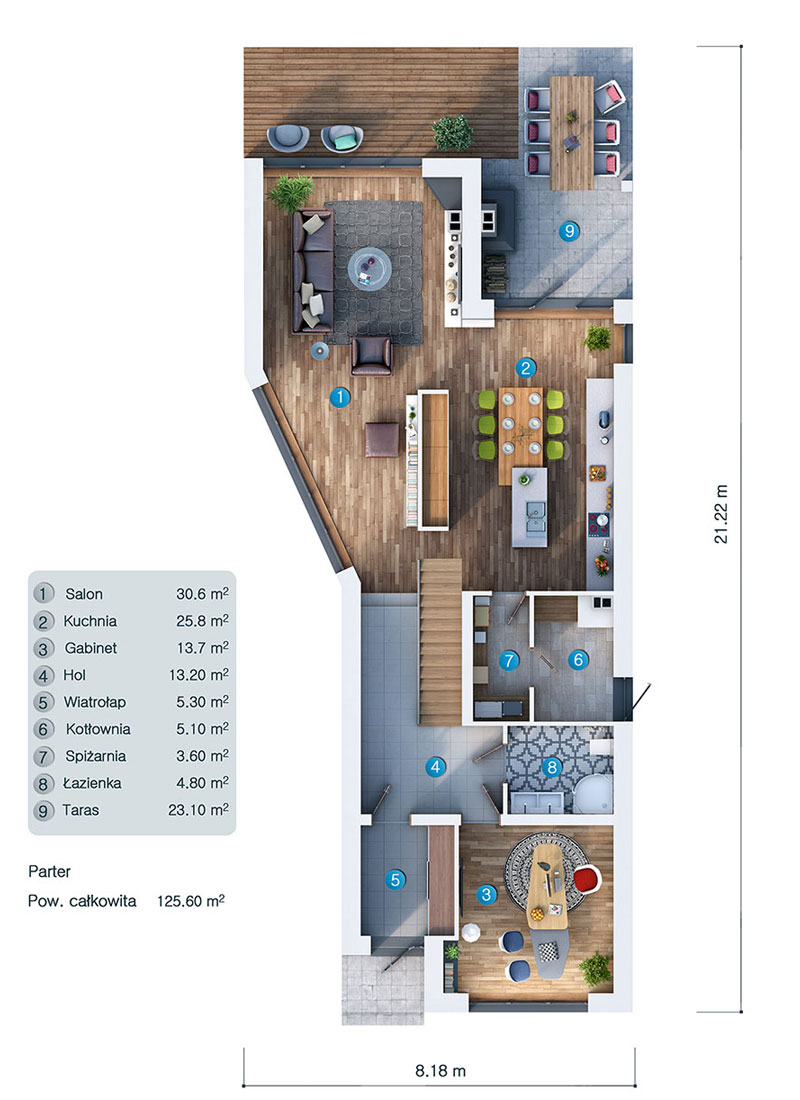

First Floor
83714C - First Floor

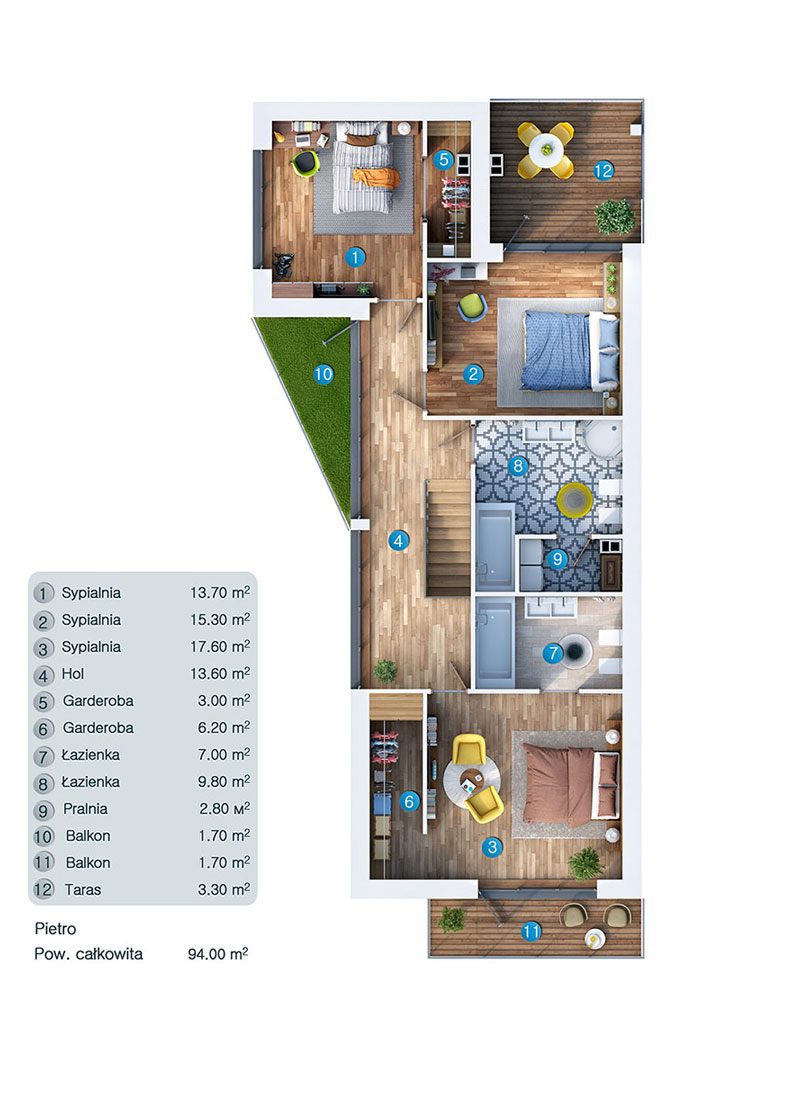

Second Floor
83714C - Second Floor
Full Specs & Features
Area
Basement: 0 m²
Bonus: 0 m²
Total Unheated: 0 m²
Total Heated: 194 m²
Dimensions
Depth 19.36 m
Width 8.86 m
Exterior Wall Framing
Wood-framed
Ceramic Block
Aerated Concrete Block
Calcium silicate block
Exterior Wall Materials
Wood
Tiles
Rooms
Full bathrooms : 3
Half bathrooms : 0
Bedrooms : 3
Utility room
Laundry
Entry
Home Office
Walk In Closet
Foundation
Slab
Block Stem Wall
Concrete Stem Wall
Architectural Style
Contemporary
European
Modern
Exterior Features
Balcony
Outdoor Fireplace
Stacked Porches
Deck
Large Windows
2-Sided Fireplace
Floor-to-Ceiling Windows
Interior Features
Laundry Second Floor
Fireplace in Family Room
Second Floor Master
Split Bedrooms
Closed Floor Plan
Large Family Room (>270 ft²)
Large Kitchen (>130 ft²)
Kitchen and Dining
Walk-in Pantry
Breakfast Nook
Island
Garage
9: 0 m²
Cars: 0
Roof
Roof Area: 1773.89m²
Hip
Roof Pitch : 3/12 (14°)
Architect
Pollio Pollio Architecture Firm country with code pl Poland
country with code pl Poland
Masovian Voivodeship, Warsaw, Smolna 13 lok 404
+48793689244
https://pollio.pl/
Plan Package

The house plan might not adhere to the building codes of your country.

To ensure the house plan complies with your country’s building codes, you need to purchase the digital concept from the original architect and choose a local architect below to prepare the construction documents.

Digital Concept Delete key
zł5430.78
Subtotal
Local Architects
Offers from your local architects who are ready to develop construction documents based on the digital concept.






Exciting Home Plans
Canada, British Columbia, Vancouver
1548 C$
Construction Cost

Calculated Value

C$ 938.136

Lot not included
Architect
Solomia Solomia Home Builder country with code pl Poland
country with code pl Poland
Subcarpathian Voivodeship, Rzeszów, ul. PORĄBKI 277
+48605612204
https://solomia.pl/
